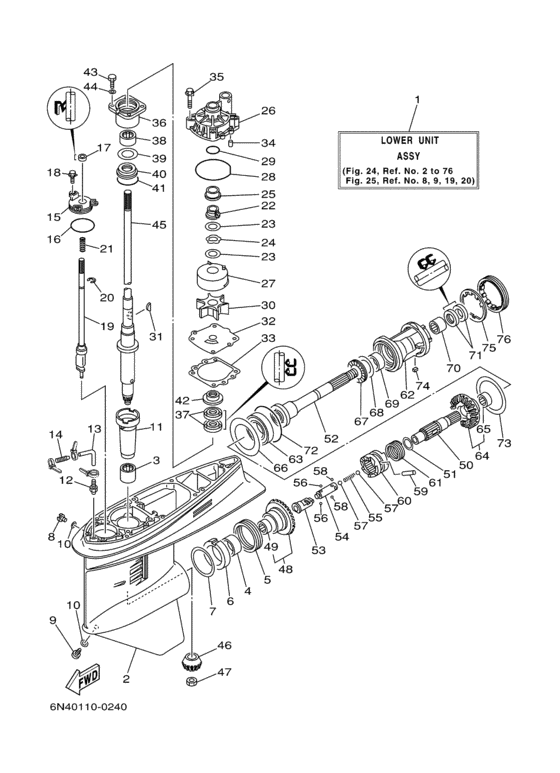

Lower casing drive Diagram Yamaha L130 TL/XLR
- Year
- 2000
- Model
- L130
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L6-45300-23-8D Lower Unit Assembly |
6L6-45300-23-8D |
US $3,262.64 |
||
| replacement | |||||
|
1
|
1
6L6-45300-25-8D Lower Unit Assy |
6L6-45300-25-8D |
US $3,262.64 |
||
|
2
|
2
6E5-45301-03-8D
Casing, Lower
|
6E5-45301-03-8D |
— | ||
| replacement | |||||
|
2
|
2
6E5-45301-05-8D Casing, Lower |
6E5-45301-05-8D |
from US $1,456.66 |
||
|
3
|
3
93315-628U9-00 Bearing |
93315-628U9-00 |
from US $54.86 |
||
|
4
|
4
93315-345W0-00 Bearing |
93315-345W0-00 |
from US $43.24 |
||
|
5
|
5
93341-360U8-00 Bearing |
93341-360U8-00 |
from US $135.56 |
||
|
6
|
6
6L6-45538-00-00 Spacer 1 |
6L6-45538-00-00 |
from US $118.54 |
||
|
7
|
7
6E5-45567-01-10 Shim (T:0.10Mm) |
6E5-45567-01-10 |
US $7.93 |
||
| replacement | |||||
|
7
|
7
6E5-45567-01-00 Shim (T:0.10Mm) |
6E5-45567-01-00 |
from US $7.93 |
||
|
7
|
7
6E5-45567-01-12 Shim (T:0.12Mm) |
6E5-45567-01-12 |
US $7.93 |
||
| replacement | |||||
|
7
|
7
6E5-45567-10-00 Shim (T:0.12Mm) |
6E5-45567-10-00 |
from US $3.38 |
||
|
7
|
7
6E5-45567-01-15 Shim (T:0.15Mm) |
6E5-45567-01-15 |
US $7.93 |
||
| replacement | |||||
|
7
|
7
6E5-45567-20-00 Shim (T:0.15Mm) |
6E5-45567-20-00 |
from US $4.04 |
||
|
7
|
7
6E5-45567-01-18 Shim (T:0.18Mm) |
6E5-45567-01-18 |
US $7.93 |
||
| replacement | |||||
|
7
|
7
6E5-45567-30-00 Shim (T:0.18Mm) |
6E5-45567-30-00 |
from US $3.38 |
||
|
7
|
7
6E5-45567-01-30 Shim (T:0.30Mm) |
6E5-45567-01-30 |
US $7.93 |
||
| replacement | |||||
|
7
|
7
6E5-45567-40-00 Shim (T:0.30Mm) |
6E5-45567-40-00 |
from US $7.93 |
||
|
7
|
7
6E5-45567-01-40 Shim (T:0.40Mm) |
6E5-45567-01-40 |
US $7.93 |
||
| replacement | |||||
|
7
|
7
6E5-45567-50-00 Shim (T:0.40Mm) |
6E5-45567-50-00 |
from US $7.93 |
||
|
7
|
7
6E5-45567-01-50 Shim (T:0.50Mm) |
6E5-45567-01-50 |
US $7.93 |
||
| replacement | |||||
|
7
|
7
6E5-45567-60-00 Shim (T:0.50Mm) |
6E5-45567-60-00 |
from US $7.93 |
||
|
8
|
8
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
8
|
8
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
9
|
9
688-45341-00-00
Plug, Drain
|
688-45341-00-00 |
— | ||
| replacement | |||||
|
9
|
9
688-45341-10-00 Plug, Drain |
688-45341-10-00 |
from US $7.21 |
||
|
10
|
10
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
10
|
10
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
11
|
11
6E5-45536-00-00 Sleeve, Drive Shaft |
6E5-45536-00-00 |
from US $23.58 |
||
|
12
|
12
6E5-45378-00-00 Nipple, Hose |
6E5-45378-00-00 |
from US $4.72 |
||
|
13
|
13
90445-07ME9-00 Hose (L120) |
90445-07ME9-00 |
US $1.98 |
||
| replacement | |||||
|
13
|
13
90445-07MF2-00 Hose (L250) |
90445-07MF2-00 |
from US $1.98 |
||
|
14
|
14
6E5-83558-10-00 End, Nipple |
6E5-83558-10-00 |
from US $6.23 |
||
|
15
|
15
6E5-45321-00-00 Plate |
6E5-45321-00-00 |
from US $25.02 |
||
|
16
|
16
93210-58144-00 O-Ring |
93210-58144-00 |
from US $4.43 |
||
| replacement | |||||
|
16
|
16
93210-58677-00 O-Ring |
93210-58677-00 |
from US $3.04 |
||
|
17
|
17
931-06090-14-00 Oil Seal |
931-06090-14-00 |
from US $3.13 |
||
|
18
|
18
90119-06M10-00 Bolt, With Washer |
90119-06M10-00 |
US $4.68 |
||
|
19
|
19
6L6-44150-01-00 Shift Cam Assy |
6L6-44150-01-00 |
from US $421.20 |
||
|
20
|
20
93430-08006-00 Circlip |
93430-08006-00 |
from US $1.42 |
||
| replacement | |||||
|
20
|
20
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.52 |
||
|
21
|
21
90501-11M10-00 Spring, Compression |
90501-11M10-00 |
from US $5.09 |
||
|
22
|
22
61A-45538-00-00 Spacer 1 |
61A-45538-00-00 |
from US $2.08 |
||
|
23
|
23
90201-22M01-00 Washer, Plate |
90201-22M01-00 |
from US $2.50 |
||
|
24
|
24
90206-22M19-00 Washer, Wave |
90206-22M19-00 |
from US $4.72 |
||
|
25
|
25
61A-45527-00-00 Collar, Drive Shaft |
61A-45527-00-00 |
from US $8.32 |
||
|
26
|
26
61A-44311-01-00 Housing, Water Pump |
61A-44311-01-00 |
from US $28.96 |
||
|
27
|
27
61A-44322-02-00 Insert, Cartridge |
61A-44322-02-00 |
from US $53.77 |
||
|
28
|
28
93210-86M38-00 O-Ring |
93210-86M38-00 |
from US $8.08 |
||
|
29
|
29
932-10371-60-00
O-Ring
|
932-10371-60-00 |
— | ||
| replacement | |||||
|
29
|
29
93210-37M67-00 O-Ring (6G8) |
93210-37M67-00 |
from US $2.77 |
||
|
30
|
30
6E5-44352-01-00 Impeller |
6E5-44352-01-00 |
from US $42.23 |
||
|
31
|
31
90280-04M05-00 Key, Woodruff |
90280-04M05-00 |
from US $10.78 |
||
|
32
|
32
6E5-44323-00-00 Outer Plate, Cartridge |
6E5-44323-00-00 |
from US $22.10 |
||
|
33
|
33
6E5-44315-A0-00 Gasket, Water Pump |
6E5-44315-A0-00 |
from US $4.99 |
||
|
34
|
34
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
35
|
35
90119-08M14-00 Bolt, With Washer |
90119-08M14-00 |
from US $3.10 |
||
|
36
|
36
6E5-45331-00-94 Housing, Bearing |
6E5-45331-00-94 |
US $102.51 |
||
| replacement | |||||
|
36
|
36
6E5-45331-00-9S Housing, Bearing |
6E5-45331-00-9S |
from US $102.51 |
||
|
37
|
37
931-0128M-16-00 Oil Seal |
931-0128M-16-00 |
from US $7.42 |
||
|
38
|
38
93317-330U2-00 Bearing |
93317-330U2-00 |
from US $25.53 |
||
| replacement | |||||
|
38
|
38
93315-430V5-00 Bearing |
93315-430V5-00 |
from US $20.20 |
||
|
39
|
39
6E5-45587-01-10
Shim (T:0.10Mm)
|
6E5-45587-01-10 |
— | ||
| replacement | |||||
|
39
|
39
6E5-45587-01-00 Shim (T:0.10Mm) |
6E5-45587-01-00 |
from US $2.70 |
||
|
39
|
39
6E5-45587-01-12
Shim (T:0.12Mm)
|
6E5-45587-01-12 |
— | ||
| replacement | |||||
|
39
|
39
6E5-45587-10-00 Shim (T:0.12Mm) |
6E5-45587-10-00 |
from US $2.70 |
||
|
39
|
39
6E5-45587-01-15
Shim (T:0.15Mm)
|
6E5-45587-01-15 |
— | ||
| replacement | |||||
|
39
|
39
6E5-45587-20-00 Shim (T:0.15Mm) |
6E5-45587-20-00 |
from US $2.36 |
||
|
39
|
39
6E5-45587-01-18 Shim (T:0.18Mm) |
6E5-45587-01-18 |
US $7.65 |
||
| replacement | |||||
|
39
|
39
6E5-45587-30-00 Shim (T:0.18Mm) |
6E5-45587-30-00 |
from US $3.04 |
||
|
39
|
39
6E5-45587-01-30 Shim (T:0.30Mm) |
6E5-45587-01-30 |
US $7.65 |
||
| replacement | |||||
|
39
|
39
6E5-45587-40-00 Shim (T:0.30Mm) |
6E5-45587-40-00 |
from US $2.36 |
||
|
39
|
39
6E5-45587-01-40 Shim (T:0.40Mm) |
6E5-45587-01-40 |
US $7.65 |
||
| replacement | |||||
|
39
|
39
6E5-45587-50-00 Shim (T:0.40Mm) |
6E5-45587-50-00 |
from US $3.04 |
||
|
39
|
39
6E5-45587-01-50 Shim (T:0.50Mm) |
6E5-45587-01-50 |
US $7.65 |
||
| replacement | |||||
|
39
|
39
6E5-45587-60-00 Shim (T:0.50Mm) |
6E5-45587-60-00 |
from US $2.02 |
||
|
40
|
40
93341-930V2-00 Bearing |
93341-930V2-00 |
from US $128.27 |
||
|
41
|
41
932-1055M-14-00
O-Ring
|
932-1055M-14-00 |
— | ||
| replacement | |||||
|
41
|
41
932-10545-34-00 O-Ring |
932-10545-34-00 |
from US $2.77 |
||
|
42
|
42
6E5-45344-00-00 Cover, Oil Seal |
6E5-45344-00-00 |
from US $7.42 |
||
|
43
|
43
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
| replacement | |||||
|
43
|
43
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
44
|
44
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
44
|
44
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
45
|
45
6E5-45501-21-00 Drive Shaft Comp |
6E5-45501-21-00 |
from US $716.32 |
||
| replacement | |||||
|
45
|
45
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
46
|
46
6E5-45551-02-00 Pinion (13T)13T |
6E5-45551-02-00 |
from US $151.14 |
||
|
47
|
47
90170-16M01-00 Nut |
90170-16M01-00 |
from US $5.74 |
||
|
48
|
48
6L6-45560-00-00 Gear 1 (26T) |
6L6-45560-00-00 |
US $415.03 |
||
|
49
|
49
933-15425-U7-00 Bearing |
933-15425-U7-00 |
from US $22.39 |
||
|
50
|
50
6K1-45611-00-00 Shaft, Propeller |
6K1-45611-00-00 |
US $235.22 |
||
|
51
|
51
90201-26M00-00 Washer, Plate |
90201-26M00-00 |
from US $19.04 |
||
|
52
|
52
6L6-45611-20-00
Shaft, Propeller
|
6L6-45611-20-00 |
— | ||
|
53
|
53
6K1-45641-01-00 Shifter |
6K1-45641-01-00 |
from US $121.29 |
||
|
54
|
54
6E5-45634-01-00 Slide, Shift |
6E5-45634-01-00 |
from US $41.57 |
||
|
55
|
55
90501-16M37-00 Spring, Compression |
90501-16M37-00 |
from US $2.02 |
||
|
56
|
56
93507-32009-00 Ball 7-32 |
93507-32009-00 |
from US $1.70 |
||
| replacement | |||||
|
56
|
56
93507-32031-00 Ball 7-32 |
93507-32031-00 |
from US $1.63 |
||
|
57
|
57
93511-32017-00 Ball |
93511-32017-00 |
from US $1.66 |
||
| replacement | |||||
|
57
|
57
93511-32027-00 Ball |
93511-32027-00 |
from US $1.66 |
||
|
58
|
58
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
59
|
59
90250-08M07-00 Pin, Straight |
90250-08M07-00 |
from US $4.39 |
||
|
60
|
60
6E5-45631-01-00 Clutch, Dog |
6E5-45631-01-00 |
US $218.29 |
||
|
61
|
61
6E5-45633-01-00 Ring, Cross Pin |
6E5-45633-01-00 |
from US $10.78 |
||
|
62
|
62
6L6-45332-00-94 Housing, Bearing |
6L6-45332-00-94 |
US $110.94 |
||
| replacement | |||||
|
62
|
62
6L6-45332-00-CA Housing, Bearing |
6L6-45332-00-CA |
from US $110.94 |
||
|
63
|
63
93332-000V7-00 Bearing |
93332-000V7-00 |
from US $90.22 |
||
|
64
|
64
6L6-45570-00-00
Gear 2 (26T)
|
6L6-45570-00-00 |
— | ||
|
65
|
65
93315-430V5-00 Bearing |
93315-430V5-00 |
from US $20.20 |
||
|
66
|
66
6L6-45576-00-00 Washer, Thrust 2 |
6L6-45576-00-00 |
from US $21.96 |
||
|
67
|
67
93341-440U5-00 Bearing |
93341-440U5-00 |
from US $37.86 |
||
|
68
|
68
6K1-45578-01-10 Shim (T:0.10Mm) |
6K1-45578-01-10 |
US $7.65 |
||
| replacement | |||||
|
68
|
68
6K1-45578-01-00 Shim (T:0.10Mm) |
6K1-45578-01-00 |
from US $4.38 |
||
|
68
|
68
6K1-45578-01-12 Shim (T:0.12Mm) |
6K1-45578-01-12 |
US $7.65 |
||
| replacement | |||||
|
68
|
68
6K1-45578-10-00 Shim (T:0.12Mm) |
6K1-45578-10-00 |
from US $3.72 |
||
|
68
|
68
6K1-45578-01-15 Shim (T:0.15Mm) |
6K1-45578-01-15 |
US $7.65 |
||
| replacement | |||||
|
68
|
68
6K1-45578-20-00 Shim (T:0.15Mm) |
6K1-45578-20-00 |
from US $3.72 |
||
|
68
|
68
6K1-45578-01-18 Shim (T:0.18Mm) |
6K1-45578-01-18 |
US $7.65 |
||
| replacement | |||||
|
68
|
68
6K1-45578-30-00 Shim (T:0.18Mm) |
6K1-45578-30-00 |
from US $4.38 |
||
|
68
|
68
6K1-45578-01-30 Shim (T:0.30Mm) |
6K1-45578-01-30 |
US $7.65 |
||
| replacement | |||||
|
68
|
68
6K1-45578-40-00 Shim (T:0.30Mm) |
6K1-45578-40-00 |
from US $3.38 |
||
|
68
|
68
6K1-45578-01-40 Shim (T:0.40Mm) |
6K1-45578-01-40 |
US $7.65 |
||
| replacement | |||||
|
68
|
68
6K1-45578-50-00 Shim (T:0.40Mm) |
6K1-45578-50-00 |
from US $3.72 |
||
|
68
|
68
6K1-45578-01-50 Shim (T:0.50Mm) |
6K1-45578-01-50 |
US $7.65 |
||
| replacement | |||||
|
68
|
68
6K1-45578-60-00 Shim (T:0.50Mm) |
6K1-45578-60-00 |
from US $3.38 |
||
|
69
|
69
93315-440V6-00 Bearing |
93315-440V6-00 |
from US $40.76 |
||
|
70
|
70
93317-330U5-00 Bearing |
93317-330U5-00 |
from US $37.44 |
||
| replacement | |||||
|
70
|
70
93315-43061-00 Bearing |
93315-43061-00 |
from US $30.64 |
||
|
71
|
71
931-0130M-17-00 Oil Seal |
931-0130M-17-00 |
from US $6.74 |
||
|
72
|
72
932-1086M-39-00 O-Ring |
932-1086M-39-00 |
from US $7.62 |
||
|
73
|
73
6L6-45577-00-10 Shim (T:0.10Mm) |
6L6-45577-00-10 |
US $6.38 |
||
| replacements | |||||
|
73
|
73
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
73
|
73
6L6-45577-00-00 Shim (T:0.10Mm) |
6L6-45577-00-00 |
from US $6.38 |
||
|
73
|
73
6L6-45577-00-12 Shim (T:0.12Mm) |
6L6-45577-00-12 |
US $6.38 |
||
| replacement | |||||
|
73
|
73
6L6-45577-10-00 Shim (T:0.12Mm) |
6L6-45577-10-00 |
from US $3.38 |
||
|
73
|
73
6L6-45577-00-15 Shim (T:0.15Mm) |
6L6-45577-00-15 |
US $6.38 |
||
| replacement | |||||
|
73
|
73
6L6-45577-20-00 Shim (T:0.15Mm) |
6L6-45577-20-00 |
from US $6.80 |
||
|
73
|
73
6L6-45577-00-18 Shim (T:0.18Mm) |
6L6-45577-00-18 |
US $6.38 |
||
| replacement | |||||
|
73
|
73
6L6-45577-30-00 Shim (T:0.18Mm) |
6L6-45577-30-00 |
from US $6.80 |
||
|
73
|
73
6L6-45577-00-30 Shim (T:0.30Mm) |
6L6-45577-00-30 |
US $6.38 |
||
| replacement | |||||
|
73
|
73
6L6-45577-40-00 Shim (T:0.30Mm) |
6L6-45577-40-00 |
from US $6.38 |
||
|
73
|
73
6L6-45577-00-40 Shim (T:0.40Mm) |
6L6-45577-00-40 |
US $6.38 |
||
| replacement | |||||
|
73
|
73
6L6-45577-50-00 Shim (T:0.40Mm) |
6L6-45577-50-00 |
from US $6.38 |
||
|
73
|
73
6L6-45577-00-50 Shim (T:0.50Mm) |
6L6-45577-00-50 |
US $6.38 |
||
| replacement | |||||
|
73
|
73
6L6-45577-60-00 Shim (T:0.50Mm) |
6L6-45577-60-00 |
from US $6.38 |
||
|
74
|
74
902-82040-10-00 Key, Straight |
902-82040-10-00 |
from US $3.60 |
||
|
75
|
75
688-45383-02-00 Washer, Claw |
688-45383-02-00 |
from US $11.12 |
||
|
76
|
76
688-45384-00-00 Nut |
688-45384-00-00 |
US $40.77 |
||
| replacement | |||||
|
76
|
76
688-45384-02-00 Nut |
688-45384-02-00 |
from US $20.20 |
||
