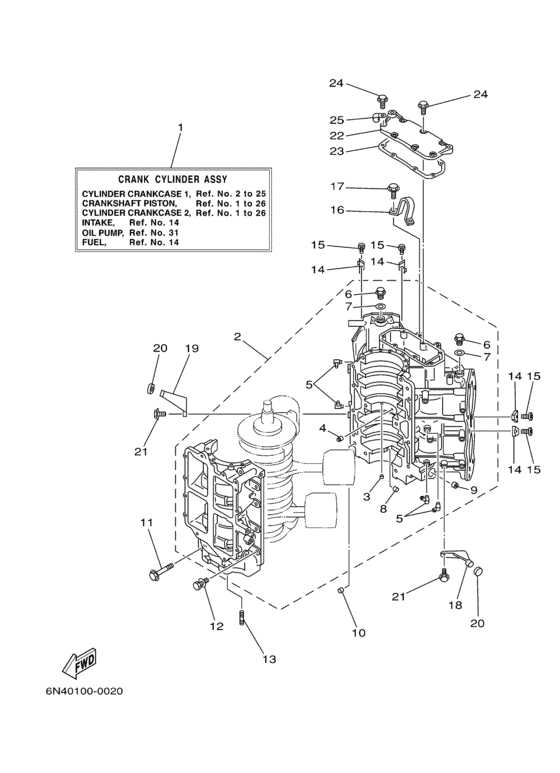

Cylinder crankcase Diagram Yamaha L130 TL/XLR
- Year
- 2001
- Model
- L130
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6N7-W0090-16-1S Crank Cylinder Assy |
6N7-W0090-16-1S |
US $8,263.20 |
||
| replacement | |||||
|
1
|
1
6N7-W0090-20-1S Crank Cylinder Assy |
6N7-W0090-20-1S |
from US $7,689.42 |
||
|
2
|
2
6N7-15100-01-1S Crankcase Assy |
6N7-15100-01-1S |
US $4,131.60 |
||
| replacement | |||||
|
2
|
2
6N7-15100-02-00 Crankcase Assy |
6N7-15100-02-00 |
US $5,134.50 |
||
|
3
|
3
624-11379-00-00 Valve, Check |
624-11379-00-00 |
from US $3.72 |
||
|
4
|
4
663-11518-01-00 Lock, Bearing |
663-11518-01-00 |
from US $6.38 |
||
|
5
|
5
6E5-11372-00-00 Nipple, Hose |
6E5-11372-00-00 |
US $12.89 |
||
| replacement | |||||
|
5
|
5
6E5-11372-01-00 Nipple, Hose |
6E5-11372-01-00 |
from US $8.08 |
||
|
6
|
6
903-4014M-00-00
Plug, Straight Screw
|
903-4014M-00-00 |
— | ||
| replacement | |||||
|
6
|
6
90340-14M06-00 Plug, Straight Screw |
90340-14M06-00 |
from US $6.51 |
||
|
7
|
7
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $2.08 |
||
|
8
|
8
90384-06M07-00 Bush, Bimetal Formed |
90384-06M07-00 |
US $2.55 |
||
|
9
|
9
903-8414M-09-00
Bush, Bimetal Formed
|
903-8414M-09-00 |
— | ||
| replacement | |||||
|
9
|
9
903-84140-11-00 Bush, Bimetal Formed |
903-84140-11-00 |
US $2.83 |
||
|
10
|
10
93608-12063-00 Pin, Dowel |
93608-12063-00 |
from US $1.84 |
||
|
11
|
11
90105-10M20-00 Bolt, Flange |
90105-10M20-00 |
from US $7.51 |
||
|
12
|
12
90119-08M94-00 Bolt, With Washer |
90119-08M94-00 |
from US $3.83 |
||
|
13
|
13
90116-08M45-00 Bolt, Stud |
90116-08M45-00 |
US $10.48 |
||
| replacement | |||||
|
13
|
13
90116-08M14-00 Bolt, Stud |
90116-08M14-00 |
from US $8.01 |
||
|
14
|
14
6E5-11325-00-00 Anode |
6E5-11325-00-00 |
from US $5.40 |
||
|
15
|
15
98780-04015-00 Screw,flat Head |
98780-04015-00 |
from US $2.13 |
||
| replacement | |||||
|
15
|
15
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.70 |
||
|
16
|
16
6E5-11119-01-00 Hanger, Engine |
6E5-11119-01-00 |
from US $14.31 |
||
|
17
|
17
90119-08MA3-00 Bolt, With Washer |
90119-08MA3-00 |
from US $2.98 |
||
|
18
|
18
6E5-42761-00-1S Stopper |
6E5-42761-00-1S |
from US $16.01 |
||
|
19
|
19
6E5-42762-00-1S Stopper |
6E5-42762-00-1S |
from US $14.47 |
||
|
20
|
20
68F-44533-00-00 Damper, Upper Mount Rubber |
68F-44533-00-00 |
US $4.39 |
||
| replacements | |||||
|
20
|
20
68F-44533-01-00 Damper, Upper Mount Rubber |
68F-44533-01-00 |
US $4.39 |
||
|
20
|
20
68F-44533-02-00 Damper Upper Mount Rubber |
68F-44533-02-00 |
from US $4.39 |
||
|
21
|
21
90119-06MA2-00 Bolt, With Washer |
90119-06MA2-00 |
from US $2.22 |
||
|
22
|
22
6K7-11371-01-1S Cover |
6K7-11371-01-1S |
from US $32.02 |
||
|
23
|
23
6E5-11381-A2-00 Gasket 1 |
6E5-11381-A2-00 |
from US $8.08 |
||
|
24
|
24
90119-06MA2-00 Bolt, With Washer |
90119-06MA2-00 |
from US $2.22 |
||
|
25
|
25
90465-06M86-00 Clamp |
90465-06M86-00 |
from US $4.82 |
||
