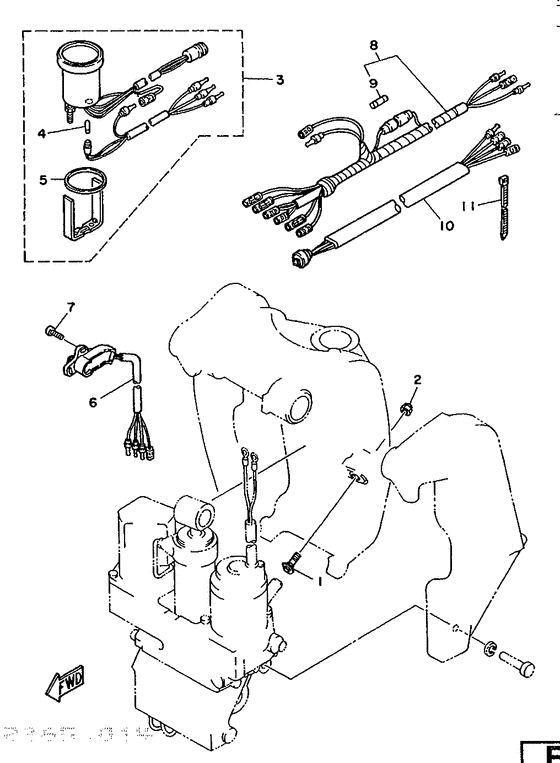

Bracket 2 Diagram Yamaha L150 ETOL/XL
- Year
- 1988
- Model
- L150A
- Model code
- 6K0
- Year
- 1988
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 150
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G5-43376-00-00
Bolt, Thrust Receiver
|
6G5-43376-00-00 |
— | ||
|
02
|
02
95780-10300-00 Nut, Flange |
95780-10300-00 |
from US $5.71 |
||
|
03
|
03
6Y5-83670-01-00
Trim Meter
|
6Y5-83670-01-00 |
— | ||
|
04
|
04
6Y5-83518-00-00 Bulb (12V-1.7W T6.5) |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
04
|
04
3FV-83517-00-00 Bulb (12V-1.7W) |
3FV-83517-00-00 |
from US $4.99 |
||
|
05
|
05
688-83664-00-00 Damper |
688-83664-00-00 |
from US $3.68 |
||
|
06
|
06
6G5-83672-00-00
Trim Sender
|
6G5-83672-00-00 |
— | ||
|
07
|
07
92580-06016-00 Screw |
92580-06016-00 |
US $2.55 |
||
| replacement | |||||
|
07
|
07
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
08
|
08
6Y5-83553-00-00 Wire, Lead (L=2.5M) |
6Y5-83553-00-00 |
US $57.20 |
||
| replacement | |||||
|
08
|
08
6Y5-83553-N0-00 Wire, Lead (L=2.5M) |
6Y5-83553-N0-00 |
US $88.98 |
||
|
09
|
09
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $2.02 |
||
|
10
|
10
6E5-82553-10-00
Extension, Wire Harness
|
6E5-82553-10-00 |
— | ||
|
11
|
11
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
11
|
11
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
11
|
11
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
