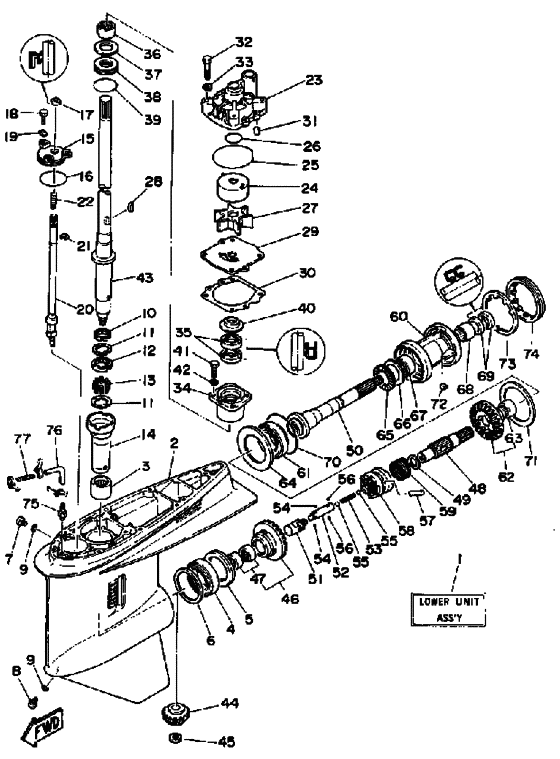

Lower drive Diagram Yamaha L150 ETX
- Year
- 1990
- Model
- L150
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 150
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6K1-45300-23-EK
Lower Unit Assembly (Ref. 2~73)
|
6K1-45300-23-EK |
— | ||
|
2
|
2
6J9-45301-01-EK
Casing, Lower
|
6J9-45301-01-EK |
— | ||
| replacement | |||||
|
2
|
2
6J9-45301-05-EK
Lower Case
|
6J9-45301-05-EK |
— | ||
|
3
|
3
93311-928U5-00 Bearing |
93311-928U5-00 |
from US $101.06 |
||
|
4
|
4
93390-000U2-00 Bearing |
93390-000U2-00 |
from US $172.70 |
||
|
5
|
5
93341-465U4-00 Bearing |
93341-465U4-00 |
from US $57.06 |
||
|
6
|
6
6G5-45567-01-10
Shim (T:0.10Mm)
|
6G5-45567-01-10 |
— | ||
| replacement | |||||
|
6
|
6
6G5-45567-01-00 Shim (T:0.10Mm) |
6G5-45567-01-00 |
from US $3.38 |
||
|
6
|
6
6G5-45567-01-12
Shim (T:0.12Mm)
|
6G5-45567-01-12 |
— | ||
| replacement | |||||
|
6
|
6
6G5-45567-10-00 Shim (T:0.12Mm) |
6G5-45567-10-00 |
from US $7.65 |
||
|
6
|
6
6G5-45567-01-15
Shim (T:0.15Mm)
|
6G5-45567-01-15 |
— | ||
| replacement | |||||
|
6
|
6
6G5-45567-20-00 Shim (T:0.15Mm) |
6G5-45567-20-00 |
from US $7.65 |
||
|
6
|
6
6G5-45567-01-18
Shim (T:0.18Mm)
|
6G5-45567-01-18 |
— | ||
| replacement | |||||
|
6
|
6
6G5-45567-30-00 Shim (T:0.18Mm) |
6G5-45567-30-00 |
from US $2.70 |
||
|
6
|
6
6G5-45567-01-30
Shim (T:0.30Mm)
|
6G5-45567-01-30 |
— | ||
| replacement | |||||
|
6
|
6
6G5-45567-40-00 Shim (T:0.30Mm) |
6G5-45567-40-00 |
from US $8.05 |
||
|
6
|
6
6G5-45567-01-40 Shim (T:0.40Mm) |
6G5-45567-01-40 |
US $7.65 |
||
| replacement | |||||
|
6
|
6
6G5-45567-50-00 Shim (T:0.40Mm) |
6G5-45567-50-00 |
from US $8.05 |
||
|
6
|
6
6G5-45567-01-50 Shim (T:0.50Mm) |
6G5-45567-01-50 |
US $7.65 |
||
| replacement | |||||
|
6
|
6
6G5-45567-60-00 Shim (T:0.50Mm) |
6G5-45567-60-00 |
from US $7.65 |
||
|
7
|
7
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
7
|
7
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
8
|
8
688-45341-00-00
Plug, Drain
|
688-45341-00-00 |
— | ||
| replacement | |||||
|
8
|
8
688-45341-10-00 Plug, Drain |
688-45341-10-00 |
from US $7.21 |
||
|
9
|
9
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
9
|
9
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
10
|
10
90209-33M12-00
Washer
|
90209-33M12-00 |
— | ||
|
11
|
11
90209-33M13-00
Washer
|
90209-33M13-00 |
— | ||
|
12
|
12
90387-33M00-00 Collar |
90387-33M00-00 |
US $9.55 |
||
|
13
|
13
90501-05M64-00
Spring, Compression
|
90501-05M64-00 |
— | ||
|
14
|
14
6G5-45536-01-00 Sleeve, Drive Shaft |
6G5-45536-01-00 |
from US $13.03 |
||
|
15
|
15
6E5-45321-00-00 Plate |
6E5-45321-00-00 |
from US $25.02 |
||
|
16
|
16
93210-58677-00 O-Ring |
93210-58677-00 |
from US $3.04 |
||
|
17
|
17
931-06090-14-00 Oil Seal |
931-06090-14-00 |
from US $3.13 |
||
|
18
|
18
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
19
|
19
90209-06M04-00
Washer
|
90209-06M04-00 |
— | ||
|
20
|
20
6K1-44150-00-00 Shift Cam Assy |
6K1-44150-00-00 |
US $456.94 |
||
| replacement | |||||
|
20
|
20
6K1-44150-01-00 Shift Cam Assy |
6K1-44150-01-00 |
from US $407.32 |
||
|
21
|
21
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.66 |
||
|
22
|
22
90501-11M10-00 Spring, Compression |
90501-11M10-00 |
from US $5.09 |
||
|
23
|
23
6E5-44311-00-00 Housing, Water Pump |
6E5-44311-00-00 |
US $72.12 |
||
| replacement | |||||
|
23
|
23
61A-44311-01-00 Housing, Water Pump |
61A-44311-01-00 |
from US $28.96 |
||
|
24
|
24
6E5-44322-00-00 Insert, Cartridge |
6E5-44322-00-00 |
from US $74.40 |
||
|
25
|
25
93210-86M38-00 O-Ring |
93210-86M38-00 |
from US $8.08 |
||
|
26
|
26
93210-37M67-00 O-Ring (6G8) |
93210-37M67-00 |
from US $2.77 |
||
|
27
|
27
6E5-44352-00-00 Impeller |
6E5-44352-00-00 |
US $48.63 |
||
| replacement | |||||
|
27
|
27
6E5-44352-01-00 Impeller |
6E5-44352-01-00 |
from US $42.23 |
||
|
28
|
28
90280-04M05-00 Key, Woodruff |
90280-04M05-00 |
from US $10.78 |
||
|
29
|
29
6G5-44323-00-00
Outer Plate, Cartridge
|
6G5-44323-00-00 |
— | ||
| replacement | |||||
|
29
|
29
6G5-44323-01-00 Outer Plate, Cartridge |
6G5-44323-01-00 |
from US $16.09 |
||
|
30
|
30
6E5-44315-00-00 Gasket, Water Pump |
6E5-44315-00-00 |
US $5.10 |
||
| replacement | |||||
|
30
|
30
6E5-44315-A0-00 Gasket, Water Pump |
6E5-44315-A0-00 |
from US $4.99 |
||
|
31
|
31
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
32
|
32
97395-08045-00 Bolt |
97395-08045-00 |
from US $1.56 |
||
| replacements | |||||
|
32
|
32
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
32
|
32
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
|
33
|
33
90209-08M02-00 Washer |
90209-08M02-00 |
from US $3.83 |
||
|
34
|
34
6E5-45331-00-94 Housing, Bearing |
6E5-45331-00-94 |
US $102.51 |
||
| replacement | |||||
|
34
|
34
6E5-45331-00-9S Housing, Bearing |
6E5-45331-00-9S |
from US $102.51 |
||
|
35
|
35
931-0128M-16-00 Oil Seal |
931-0128M-16-00 |
from US $7.42 |
||
|
36
|
36
93317-330U2-00 Bearing |
93317-330U2-00 |
from US $25.53 |
||
| replacement | |||||
|
36
|
36
93315-430V5-00 Bearing |
93315-430V5-00 |
from US $20.20 |
||
|
37
|
37
6E5-45587-01-10
Shim (T:0.10Mm)
|
6E5-45587-01-10 |
— | ||
| replacement | |||||
|
37
|
37
6E5-45587-01-00 Shim (T:0.10Mm) |
6E5-45587-01-00 |
from US $2.70 |
||
|
37
|
37
6E5-45587-01-12
Shim (T:0.12Mm)
|
6E5-45587-01-12 |
— | ||
| replacement | |||||
|
37
|
37
6E5-45587-10-00 Shim (T:0.12Mm) |
6E5-45587-10-00 |
from US $2.70 |
||
|
37
|
37
6E5-45587-01-15
Shim (T:0.15Mm)
|
6E5-45587-01-15 |
— | ||
| replacement | |||||
|
37
|
37
6E5-45587-20-00 Shim (T:0.15Mm) |
6E5-45587-20-00 |
from US $2.36 |
||
|
37
|
37
6E5-45587-01-18 Shim (T:0.18Mm) |
6E5-45587-01-18 |
US $7.65 |
||
| replacement | |||||
|
37
|
37
6E5-45587-30-00 Shim (T:0.18Mm) |
6E5-45587-30-00 |
from US $3.04 |
||
|
37
|
37
6E5-45587-01-30 Shim (T:0.30Mm) |
6E5-45587-01-30 |
US $7.65 |
||
| replacement | |||||
|
37
|
37
6E5-45587-40-00 Shim (T:0.30Mm) |
6E5-45587-40-00 |
from US $2.36 |
||
|
37
|
37
6E5-45587-01-40 Shim (T:0.40Mm) |
6E5-45587-01-40 |
US $7.65 |
||
| replacement | |||||
|
37
|
37
6E5-45587-50-00 Shim (T:0.40Mm) |
6E5-45587-50-00 |
from US $3.04 |
||
|
37
|
37
6E5-45587-01-50 Shim (T:0.50Mm) |
6E5-45587-01-50 |
US $7.65 |
||
| replacement | |||||
|
37
|
37
6E5-45587-60-00 Shim (T:0.50Mm) |
6E5-45587-60-00 |
from US $2.02 |
||
|
38
|
38
93341-930U0-00 Bearing |
93341-930U0-00 |
from US $130.15 |
||
| replacement | |||||
|
38
|
38
93341-930V2-00 Bearing |
93341-930V2-00 |
from US $128.27 |
||
|
39
|
39
932-10545-34-00 O-Ring |
932-10545-34-00 |
from US $2.77 |
||
|
40
|
40
6E5-45344-00-00 Cover, Oil Seal |
6E5-45344-00-00 |
from US $7.42 |
||
|
41
|
41
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
41
|
41
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
41
|
41
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
|
42
|
42
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
43
|
43
6G5-45501-21-00
Drive Shaft Comp (X)
|
6G5-45501-21-00 |
— | ||
| replacement | |||||
|
43
|
43
6G5-45501-22-00 Drive Shaft Comp (X) |
6G5-45501-22-00 |
from US $614.29 |
||
|
44
|
44
6G5-45551-01-00
Pinion (14T)
14T |
6G5-45551-01-00 |
— | ||
| replacement | |||||
|
44
|
44
6G5-45551-10-00 Pinion (14T)14T |
6G5-45551-10-00 |
from US $114.82 |
||
|
45
|
45
90170-16M01-00 Nut |
90170-16M01-00 |
from US $5.74 |
||
|
46
|
46
6K1-45560-01-00 Gear 1 (26T)26T |
6K1-45560-01-00 |
from US $251.45 |
||
|
47
|
47
93315-425V3-00 Bearing |
93315-425V3-00 |
from US $20.12 |
||
|
48
|
48
6K1-45611-00-00 Shaft, Propeller |
6K1-45611-00-00 |
US $235.22 |
||
|
49
|
49
90201-26M00-00 Washer, Plate |
90201-26M00-00 |
from US $19.04 |
||
|
50
|
50
6K1-45611-21-00
Shaft, Propeller
|
6K1-45611-21-00 |
— | ||
| replacement | |||||
|
50
|
50
6K1-45611-29-00 Shaft Propeller |
6K1-45611-29-00 |
US $851.72 |
||
|
51
|
51
6K1-45641-00-00 Shifter |
6K1-45641-00-00 |
US $226.58 |
||
| replacement | |||||
|
51
|
51
6K1-45641-01-00 Shifter |
6K1-45641-01-00 |
from US $121.29 |
||
|
52
|
52
6E5-45634-01-00 Slide, Shift |
6E5-45634-01-00 |
from US $41.57 |
||
|
53
|
53
90501-16M37-00 Spring, Compression |
90501-16M37-00 |
from US $2.02 |
||
|
54
|
54
93507-32031-00 Ball 7-327-32 |
93507-32031-00 |
from US $1.63 |
||
|
55
|
55
93511-32027-00 Ball |
93511-32027-00 |
from US $1.66 |
||
|
56
|
56
93503-16010-00 Ball 3-163-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
56
|
56
93503-16003-00 Ball3-16 |
93503-16003-00 |
from US $1.39 |
||
|
57
|
57
90250-08M07-00 Pin, Straight |
90250-08M07-00 |
from US $4.39 |
||
|
58
|
58
6G5-45631-00-00 Clutch, Dog |
6G5-45631-00-00 |
from US $204.48 |
||
| replacement | |||||
|
58
|
58
6G5-45631-10-00 Clutch, Dog |
6G5-45631-10-00 |
US $165.26 |
||
|
59
|
59
6E5-45633-01-00 Ring, Cross Pin |
6E5-45633-01-00 |
from US $10.78 |
||
|
60
|
60
6K1-45332-01-94 Housing, Bearing |
6K1-45332-01-94 |
US $129.18 |
||
| replacement | |||||
|
60
|
60
6K1-45332-01-CA Housing, Bearing |
6K1-45332-01-CA |
from US $129.18 |
||
|
61
|
61
93332-00048-00 Bearing |
93332-00048-00 |
from US $120.52 |
||
|
62
|
62
6K1-45570-00-00
Gear
|
6K1-45570-00-00 |
— | ||
|
63
|
63
93315-430V5-00 Bearing |
93315-430V5-00 |
from US $20.20 |
||
|
64
|
64
6K1-45576-00-00 Washer, Thrust 2 |
6K1-45576-00-00 |
from US $19.13 |
||
|
65
|
65
93341-440U5-00 Bearing |
93341-440U5-00 |
from US $37.86 |
||
|
66
|
66
6K1-45578-01-10 Shim (T:0.10Mm) |
6K1-45578-01-10 |
US $7.65 |
||
| replacement | |||||
|
66
|
66
6K1-45578-01-00 Shim (T:0.10Mm) |
6K1-45578-01-00 |
from US $4.38 |
||
|
66
|
66
6K1-45578-01-12 Shim (T:0.12Mm) |
6K1-45578-01-12 |
US $7.65 |
||
| replacement | |||||
|
66
|
66
6K1-45578-10-00 Shim (T:0.12Mm) |
6K1-45578-10-00 |
from US $3.72 |
||
|
66
|
66
6K1-45578-01-15 Shim (T:0.15Mm) |
6K1-45578-01-15 |
US $7.65 |
||
| replacement | |||||
|
66
|
66
6K1-45578-20-00 Shim (T:0.15Mm) |
6K1-45578-20-00 |
from US $3.72 |
||
|
66
|
66
6K1-45578-01-18 Shim (T:0.18Mm) |
6K1-45578-01-18 |
US $7.65 |
||
| replacement | |||||
|
66
|
66
6K1-45578-30-00 Shim (T:0.18Mm) |
6K1-45578-30-00 |
from US $4.38 |
||
|
66
|
66
6K1-45578-01-30 Shim (T:0.30Mm) |
6K1-45578-01-30 |
US $7.65 |
||
| replacement | |||||
|
66
|
66
6K1-45578-40-00 Shim (T:0.30Mm) |
6K1-45578-40-00 |
from US $3.38 |
||
|
66
|
66
6K1-45578-01-40 Shim (T:0.40Mm) |
6K1-45578-01-40 |
US $7.65 |
||
| replacement | |||||
|
66
|
66
6K1-45578-50-00 Shim (T:0.40Mm) |
6K1-45578-50-00 |
from US $3.72 |
||
|
66
|
66
6K1-45578-01-50 Shim (T:0.50Mm) |
6K1-45578-01-50 |
US $7.65 |
||
| replacement | |||||
|
66
|
66
6K1-45578-60-00 Shim (T:0.50Mm) |
6K1-45578-60-00 |
from US $3.38 |
||
|
67
|
67
93315-440V6-00 Bearing |
93315-440V6-00 |
from US $40.76 |
||
|
68
|
68
933-15430-U8-00
Bearing
|
933-15430-U8-00 |
— | ||
| replacement | |||||
|
68
|
68
93315-43061-00 Bearing |
93315-43061-00 |
from US $30.64 |
||
|
69
|
69
931-0130M-17-00 Oil Seal |
931-0130M-17-00 |
from US $6.74 |
||
|
70
|
70
93210-97M55-00 O-Ring |
93210-97M55-00 |
from US $9.57 |
||
|
71
|
71
6G5-45577-02-10 Shim (T:0.10Mm) |
6G5-45577-02-10 |
US $7.23 |
||
| replacement | |||||
|
71
|
71
6G5-45577-02-00 Shim (T:0.10Mm) |
6G5-45577-02-00 |
from US $4.38 |
||
|
71
|
71
6G5-45577-02-12 Shim (T:0.12Mm) |
6G5-45577-02-12 |
US $7.23 |
||
| replacement | |||||
|
71
|
71
6G5-45577-10-00 Shim (T:0.12Mm) |
6G5-45577-10-00 |
from US $4.04 |
||
|
71
|
71
6G5-45577-02-15 Shim (T:0.15Mm) |
6G5-45577-02-15 |
US $7.23 |
||
| replacement | |||||
|
71
|
71
6G5-45577-20-00 Shim (T:0.15Mm) |
6G5-45577-20-00 |
from US $4.04 |
||
|
71
|
71
6G5-45577-02-18 Shim (T:0.18Mm) |
6G5-45577-02-18 |
US $7.23 |
||
| replacement | |||||
|
71
|
71
6G5-45577-30-00 Shim (T:0.18Mm) |
6G5-45577-30-00 |
from US $7.23 |
||
|
71
|
71
6G5-45577-02-30 Shim (T:0.30Mm) |
6G5-45577-02-30 |
US $7.23 |
||
| replacement | |||||
|
71
|
71
6G5-45577-40-00 Shim (T:0.30Mm) |
6G5-45577-40-00 |
from US $4.04 |
||
|
71
|
71
6G5-45577-02-40 Shim (T:0.40Mm) |
6G5-45577-02-40 |
US $7.23 |
||
| replacement | |||||
|
71
|
71
6G5-45577-50-00 Shim (T:0.40Mm) |
6G5-45577-50-00 |
from US $7.63 |
||
|
71
|
71
6G5-45577-02-50 Shim (T:0.50Mm) |
6G5-45577-02-50 |
US $7.23 |
||
| replacement | |||||
|
71
|
71
6G5-45577-60-00 Shim (T:0.50Mm) |
6G5-45577-60-00 |
from US $4.04 |
||
|
72
|
72
90282-04M00-00 Key, Straight |
90282-04M00-00 |
from US $2.45 |
||
|
73
|
73
6G5-45383-01-00 Washer, Claw |
6G5-45383-01-00 |
from US $12.80 |
||
|
74
|
74
6G5-45384-00-00 Nut |
6G5-45384-00-00 |
US $52.09 |
||
| replacement | |||||
|
74
|
74
6G5-45384-02-00 Nut |
6G5-45384-02-00 |
from US $23.58 |
||
|
75
|
75
6E5-45378-00-00 Nipple, Hose |
6E5-45378-00-00 |
from US $4.72 |
||
|
76
|
76
90445-07ME9-00 Hose (L120) |
90445-07ME9-00 |
US $1.98 |
||
| replacement | |||||
|
76
|
76
90445-07MF2-00 Hose (L250) |
90445-07MF2-00 |
from US $1.98 |
||
|
77
|
77
6E5-83558-10-00 End, Nipple |
6E5-83558-10-00 |
from US $6.23 |
||
