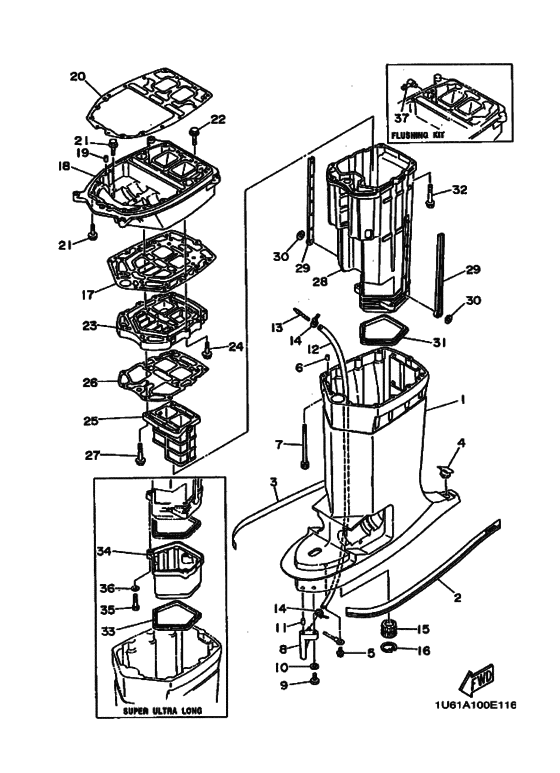

Upper casing Diagram Yamaha L250 ETOX
- Year
- 1996
- Model
- L250A
- Model code
- 61B
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- Europe (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61A-45111-21-8D Casing, UpperUR ULTRA LONG |
61A-45111-21-8D |
US $1,531.20 |
||
| replacement | |||||
|
1
|
1
61A-45111-22-8D Casing, UpperUR ULTRA LONG |
61A-45111-22-8D |
from US $1,502.27 |
||
|
1
|
1
61A-45111-31-8D Casing, UpperUR SUPER ULTRA LONG |
61A-45111-31-8D |
US $1,900.80 |
||
| replacement | |||||
|
1
|
1
61A-45111-32-8D Casing, UpperUR SUPER ULTRA LONG |
61A-45111-32-8D |
from US $1,331.29 |
||
|
2
|
2
61A-42791-S0-00 Mark 1 |
61A-42791-S0-00 |
from US $43.11 |
||
|
3
|
3
61A-42792-S0-00 Mark 2 |
61A-42792-S0-00 |
from US $20.69 |
||
|
4
|
4
61A-45155-00-00 Cap |
61A-45155-00-00 |
US $15.02 |
||
| replacement | |||||
|
4
|
4
61A-45155-01-00 CAP |
61A-45155-01-00 |
from US $4.32 |
||
|
5
|
5
97595-06510-00 Bolt, With Washer(61B) |
97595-06510-00 |
US $3.68 |
||
| replacements | |||||
|
5
|
5
97E95-06510-00 Bolt, Hexagon W/w De |
97E95-06510-00 |
from US $1.07 |
||
|
5
|
5
97E95-06510-00 Bolt, Hexagon W/w De |
97E95-06510-00 |
from US $1.07 |
||
|
6
|
6
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $2.02 |
||
|
7
|
7
90119-08M78-00 Bolt, With Washer |
90119-08M78-00 |
US $18.56 |
||
| replacement | |||||
|
7
|
7
90119-08078-00 Bolt, With Washer |
90119-08078-00 |
from US $18.56 |
||
|
8
|
8
61A-45378-00-00 Nipple, Hose |
61A-45378-00-00 |
from US $3.72 |
||
|
9
|
9
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
9
|
9
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
10
|
10
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
11
|
11
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
12
|
12
90445-07MF0-00 Hose (L1030)UR ULTRA LONG |
90445-07MF0-00 |
US $27.06 |
||
| replacement | |||||
|
12
|
12
904-4507M-21-00 Hose (L1160)UR ULTRA LONG |
904-4507M-21-00 |
from US $16 |
||
|
12
|
12
904-4507M-21-00 Hose (L1160)UR SUPER ULTRA LONG |
904-4507M-21-00 |
from US $16 |
||
|
13
|
13
6E5-83558-00-00 End, Nipple |
6E5-83558-00-00 |
from US $6.23 |
||
|
14
|
14
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
14
|
14
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
14
|
14
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
15
|
15
6E5-45318-00-00 Bushing, Drive Shaft |
6E5-45318-00-00 |
from US $62.04 |
||
|
16
|
16
93420-36M01-00 Circlip |
93420-36M01-00 |
from US $6.06 |
||
|
17
|
17
61A-45114-A0-00 Gasket, Upper Casing |
61A-45114-A0-00 |
from US $27.04 |
||
|
18
|
18
61A-41137-11-94 Guide, Exhaust |
61A-41137-11-94 |
US $924 |
||
| replacement | |||||
|
18
|
18
99999-04042-00 ROD 2 |
99999-04042-00 |
from US $592.32 |
||
|
19
|
19
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $2.02 |
||
|
20
|
20
61A-45113-A0-00 Gasket, Upper Casing |
61A-45113-A0-00 |
from US $39.29 |
||
|
21
|
21
90119-08M79-00 Bolt, With Washer |
90119-08M79-00 |
US $3.97 |
||
| replacement | |||||
|
21
|
21
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
22
|
22
97595-08535-00 Bolt, With Washer |
97595-08535-00 |
US $1.70 |
||
|
23
|
23
61A-41131-00-5B Manifold, Ext. 1 |
61A-41131-00-5B |
US $129.59 |
||
| replacement | |||||
|
23
|
23
61A-41131-03-CA Manifold, Ext. 1 |
61A-41131-03-CA |
from US $121.61 |
||
|
24
|
24
97595-08535-00 Bolt, With Washer |
97595-08535-00 |
US $1.70 |
||
|
25
|
25
61A-41132-01-5B Manifold, Exhaust |
61A-41132-01-5B |
US $192.04 |
||
| replacement | |||||
|
25
|
25
61A-41132-01-CA Manifold, Exhaust |
61A-41132-01-CA |
from US $105.27 |
||
|
26
|
26
61A-41134-A0-00 Gasket, Exhaust Manifold |
61A-41134-A0-00 |
US $35.28 |
||
| replacement | |||||
|
26
|
26
6D0-41134-00-00 Gasket, Exhaust Manifold |
6D0-41134-00-00 |
from US $32.40 |
||
|
27
|
27
97595-08550-00 Bolt, With Washer |
97595-08550-00 |
from US $4.53 |
||
|
28
|
28
61A-14711-22-5B Muffler 1 |
61A-14711-22-5B |
US $497.86 |
||
| replacement | |||||
|
28
|
28
61A-14711-30-CA Muffler 1 |
61A-14711-30-CA |
from US $497.86 |
||
|
29
|
29
6E5-14737-00-00 Damper, Muffler |
6E5-14737-00-00 |
from US $19.27 |
||
|
30
|
30
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.70 |
||
|
31
|
31
61A-45123-01-00 Gasket, Muffler |
61A-45123-01-00 |
from US $24.94 |
||
|
32
|
32
90119-08M74-00 Bolt, With Washer |
90119-08M74-00 |
US $7.23 |
||
|
33
|
33
61A-45123-01-00 Gasket, MufflerSUPER ULTRA LONG |
61A-45123-01-00 |
from US $24.94 |
||
|
34
|
34
61A-14721-30-5B Muffler 2SUPER ULTRA LONG |
61A-14721-30-5B |
US $87.87 |
||
| replacement | |||||
|
34
|
34
61A-14721-30-CA Muffler 2SUPER ULTRA LONG |
61A-14721-30-CA |
from US $87.87 |
||
|
35
|
35
97095-06035-00 Bolt(6R8)SUPER ULTRA LONG |
97095-06035-00 |
from US $2.69 |
||
| replacement | |||||
|
35
|
35
97080-06035-00 Bolt(J52)SUPER ULTRA LONG |
97080-06035-00 |
from US $2.02 |
||
|
36
|
36
929-90066-00-00 Washer, Plain (646)SUPER ULTRA LONG |
929-90066-00-00 |
from US $1.18 |
||
|
37
|
37
6H1-11372-00-00 Nipple, HoseFLUSHING KIT |
6H1-11372-00-00 |
from US $37.17 |
||
