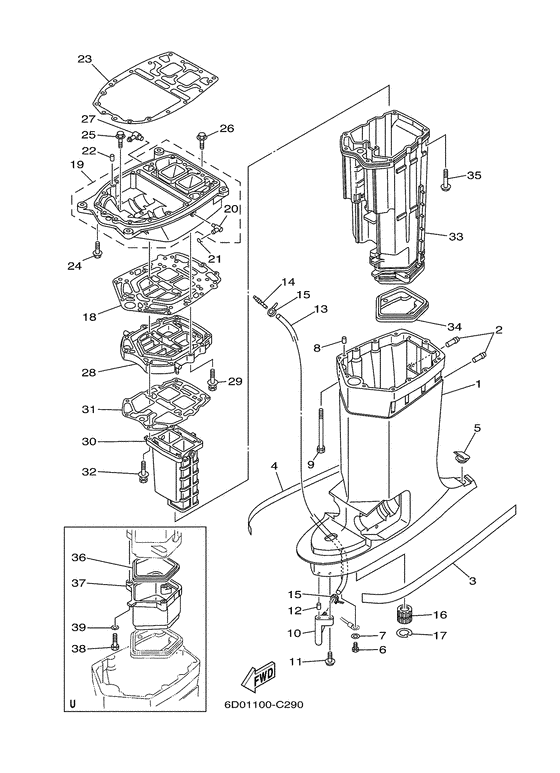

Upper casing Diagram Yamaha Z300 ETOL/XL
- Year
- 2004
- Model
- Z300A
- Model code
- 6D0
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 300
- Sales region
- Europe General) (050)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6D0-45111-20-8D Casing, UpperX |
6D0-45111-20-8D |
US $1,240.89 |
||
|
01
|
01
6D0-45111-30-8D Casing, UpperU |
6D0-45111-30-8D |
US $1,240.89 |
||
|
02
|
02
6E5-24377-00-00 Pipe, Joint 2 |
6E5-24377-00-00 |
from US $9.07 |
||
|
03
|
03
61A-42791-S0-00 Mark 1 |
61A-42791-S0-00 |
from US $43.11 |
||
|
04
|
04
61A-42792-S0-00 Mark 2 |
61A-42792-S0-00 |
from US $20.69 |
||
|
05
|
05
61A-45155-00-00 Cap |
61A-45155-00-00 |
US $15.02 |
||
| replacement | |||||
|
05
|
05
61A-45155-01-00 CAP |
61A-45155-01-00 |
from US $4.32 |
||
|
06
|
06
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
06
|
06
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
07
|
07
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
08
|
08
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $2.02 |
||
|
09
|
09
90119-08052-00 Bolt, With Washer |
90119-08052-00 |
from US $27.49 |
||
|
10
|
10
61A-45378-00-00 Nipple, Hose |
61A-45378-00-00 |
from US $3.72 |
||
|
11
|
11
90119-06M17-00 Bolt, With Washer |
90119-06M17-00 |
from US $3.68 |
||
| replacement | |||||
|
11
|
11
90119-06M49-00 Bolt, With Washer |
90119-06M49-00 |
US $3.68 |
||
|
12
|
12
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
13
|
13
904-4507M-21-00 Hose (L1160)U |
904-4507M-21-00 |
from US $16 |
||
|
13
|
13
90445-07MF0-00 Hose (L1030)X |
90445-07MF0-00 |
US $27.06 |
||
| replacement | |||||
|
13
|
13
904-4507M-21-00 Hose (L1160)X |
904-4507M-21-00 |
from US $16 |
||
|
14
|
14
6E5-83558-00-00 End, Nipple |
6E5-83558-00-00 |
from US $6.23 |
||
|
15
|
15
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
15
|
15
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
15
|
15
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
16
|
16
6E5-45318-00-00 Bushing, Drive Shaft |
6E5-45318-00-00 |
from US $62.04 |
||
|
17
|
17
93420-36M01-00 Circlip |
93420-36M01-00 |
from US $6.06 |
||
|
18
|
18
60V-45114-00-00
Gasket, Upper Casing
|
60V-45114-00-00 |
— | ||
| replacement | |||||
|
18
|
18
60V-45114-01-00 Gasket, Upper Casing |
60V-45114-01-00 |
from US $57.79 |
||
|
19
|
19
6D0-41137-00-94 Guide, Exhaust |
6D0-41137-00-94 |
US $848.76 |
||
| replacement | |||||
|
19
|
19
6D0-41137-00-CA element |
6D0-41137-00-CA |
from US $640.24 |
||
|
20
|
20
676-11372-00-00 Nipple, Hose |
676-11372-00-00 |
from US $8.76 |
||
|
21
|
21
90467-08M10-00 Clip |
90467-08M10-00 |
US $1.70 |
||
| replacement | |||||
|
21
|
21
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
22
|
22
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $2.02 |
||
|
23
|
23
60V-45113-01-00
Gasket, Upper Casing
|
60V-45113-01-00 |
— | ||
| replacement | |||||
|
23
|
23
60V-45113-02-00 Gasket, Upper Casing |
60V-45113-02-00 |
from US $60.81 |
||
|
24
|
24
90119-08068-00 Bolt, With WasherUr 6d0:1000001-1000338,6d1:100 |
90119-08068-00 |
US $12.04 |
||
| replacement | |||||
|
24
|
24
90119-08080-00 Bolt, With WasherUr 6d0:1000001-1000338,6d1:100 |
90119-08080-00 |
from US $12.76 |
||
|
24
|
24
90119-08079-00 Bolt, With WasherUr 6d0:1000339-,6d1:1000191- |
90119-08079-00 |
US $12.04 |
||
| replacement | |||||
|
24
|
24
90119-08080-00 Bolt, With WasherUr 6d0:1000339-,6d1:1000191- |
90119-08080-00 |
from US $12.76 |
||
|
25
|
25
90119-08072-00 Bolt, With Washer |
90119-08072-00 |
from US $11.05 |
||
|
26
|
26
90119-08060-00 Bolt, With Washer |
90119-08060-00 |
from US $15.89 |
||
|
27
|
27
6H1-11372-00-00 Nipple, Hose |
6H1-11372-00-00 |
from US $37.17 |
||
|
28
|
28
6D0-41131-00-5B
Manifold, Ext. 1
|
6D0-41131-00-5B |
— | ||
| replacement | |||||
|
28
|
28
6D0-41131-00-CA
MANIFOLD, EXT. 1
|
6D0-41131-00-CA |
— | ||
|
29
|
29
90119-08056-00 Bolt, With Washer |
90119-08056-00 |
US $7.78 |
||
|
30
|
30
6D0-41132-00-5B Manifold, Exhaust |
6D0-41132-00-5B |
US $463.76 |
||
| replacement | |||||
|
30
|
30
6D0-41132-00-00 Manifold, Exhaust |
6D0-41132-00-00 |
from US $463.76 |
||
|
31
|
31
61A-41134-A0-00 Gasket, Exhaust Manifold |
61A-41134-A0-00 |
US $35.28 |
||
| replacement | |||||
|
31
|
31
6D0-41134-00-00 Gasket, Exhaust Manifold |
6D0-41134-00-00 |
from US $32.40 |
||
|
32
|
32
90119-08059-00 Bolt, With Washer |
90119-08059-00 |
from US $11.76 |
||
|
33
|
33
60V-14711-20-5B Muffler 1U |
60V-14711-20-5B |
US $473.31 |
||
| replacement | |||||
|
33
|
33
60V-14711-20-CA HOUSING, OIL SEALU |
60V-14711-20-CA |
US $278.53 |
||
|
33
|
33
6D0-14711-20-5B Muffler 1X |
6D0-14711-20-5B |
US $259.60 |
||
| replacement | |||||
|
33
|
33
6D0-14711-20-CA elementX |
6D0-14711-20-CA |
US $313.47 |
||
|
34
|
34
6D0-45123-00-00 Gasket, Muffler |
6D0-45123-00-00 |
from US $29.47 |
||
|
35
|
35
90119-08059-00 Bolt, With Washer |
90119-08059-00 |
from US $11.76 |
||
|
36
|
36
61A-45123-01-00 Gasket, MufflerU |
61A-45123-01-00 |
from US $24.94 |
||
|
37
|
37
6D0-14721-30-5B Muffler 2U |
6D0-14721-30-5B |
US $55.36 |
||
|
38
|
38
97095-06035-00 Bolt(6R8)U |
97095-06035-00 |
from US $2.69 |
||
| replacement | |||||
|
38
|
38
97080-06035-00 Bolt(J52)U |
97080-06035-00 |
from US $2.02 |
||
|
39
|
39
929-95066-00-00
Washer, Plate
U |
929-95066-00-00 |
— | ||
| replacement | |||||
|
39
|
39
929-90066-00-00 Washer, Plain (646)U |
929-90066-00-00 |
from US $1.18 |
||
