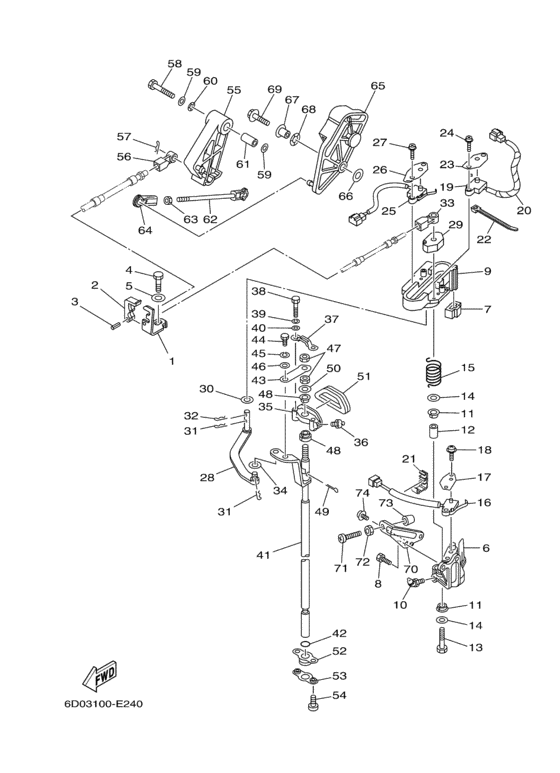

Control Diagram Yamaha Z300 TL/XLR
- Year
- 2005
- Model
- Z300
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 300
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60V-48531-20-00 Bracket, Remote Control 1 |
60V-48531-20-00 |
from US $18.74 |
||
|
2
|
2
663-48538-00-00 Clamp, Cable 1 |
663-48538-00-00 |
from US $7.23 |
||
|
3
|
3
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
|
4
|
4
97095-08016-00 Bolt |
97095-08016-00 |
US $1.28 |
||
| replacements | |||||
|
4
|
4
97D95-08016-00 Bolt, Hexagon Deep Recess |
97D95-08016-00 |
from US $1.28 |
||
|
4
|
4
97D95-08016-00 Bolt, Hexagon Deep Recess |
97D95-08016-00 |
from US $1.28 |
||
|
5
|
5
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
6
|
6
6D0-44117-00-1S Bracket |
6D0-44117-00-1S |
US $45.60 |
||
| replacement | |||||
|
6
|
6
6D0-44117-00-94 Bracket |
6D0-44117-00-94 |
US $45.60 |
||
|
7
|
7
60V-44194-00-00 Cap |
60V-44194-00-00 |
from US $4.25 |
||
|
8
|
8
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
8
|
8
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
9
|
9
6D0-44176-00-1S
Bracket
|
6D0-44176-00-1S |
— | ||
| replacement | |||||
|
9
|
9
6D0-44176-00-94
DAMPER, SEAL
|
6D0-44176-00-94 |
— | ||
|
10
|
10
93700-06M01-00 Nipple, Grease |
93700-06M01-00 |
from US $4.96 |
||
|
11
|
11
90386-12069-00 Bush |
90386-12069-00 |
from US $1.94 |
||
|
12
|
12
90387-08M09-00 Collar |
90387-08M09-00 |
from US $10.06 |
||
|
13
|
13
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
| replacement | |||||
|
13
|
13
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
14
|
14
92995-08200-00 Washer |
92995-08200-00 |
US $1.07 |
||
| replacements | |||||
|
14
|
14
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
14
|
14
92907-08200-00 Washer |
92907-08200-00 |
from US $1.36 |
||
|
15
|
15
90508-20M31-00 Spring, Torsion |
90508-20M31-00 |
from US $6.80 |
||
|
16
|
16
61A-8259F-00-00 Switch Assy |
61A-8259F-00-00 |
US $53.88 |
||
|
17
|
17
61A-82588-01-00 Plate |
61A-82588-01-00 |
from US $3.68 |
||
|
18
|
18
97985-04116-00 Screw, With Washer |
97985-04116-00 |
from US $1.56 |
||
|
19
|
19
60V-8259F-00-00 Switch Assy |
60V-8259F-00-00 |
US $37.03 |
||
|
20
|
20
90446-10M01-00 Hose (L60) |
90446-10M01-00 |
from US $4.68 |
||
|
21
|
21
90464-05122-00
Clamp
|
90464-05122-00 |
— | ||
|
22
|
22
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
22
|
22
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
22
|
22
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
23
|
23
61A-82588-01-00 Plate |
61A-82588-01-00 |
from US $3.68 |
||
|
24
|
24
97985-04116-00 Screw, With Washer |
97985-04116-00 |
from US $1.56 |
||
|
25
|
25
6D0-8259F-00-00 Switch Assy |
6D0-8259F-00-00 |
from US $56.50 |
||
|
26
|
26
6D0-82588-00-00 Plate |
6D0-82588-00-00 |
from US $3.24 |
||
|
27
|
27
97985-04116-00 Screw, With Washer |
97985-04116-00 |
from US $1.56 |
||
|
28
|
28
61A-44121-00-00 Lever, Shift Rod |
61A-44121-00-00 |
from US $101.27 |
||
|
29
|
29
6D0-44122-00-00 Bushing, Shift Rod Lever |
6D0-44122-00-00 |
from US $28.64 |
||
|
30
|
30
90202-08M20-00 Washer, Plate |
90202-08M20-00 |
from US $2.55 |
||
|
31
|
31
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
32
|
32
90468-07M06-00 Clip |
90468-07M06-00 |
from US $7.79 |
||
|
33
|
33
6E5-48344-00-00 Cable End, Remote Control |
6E5-48344-00-00 |
from US $4.04 |
||
|
34
|
34
90202-06007-00 Washer, Plate |
90202-06007-00 |
from US $1.70 |
||
|
35
|
35
61A-44118-00-8D Bracket |
61A-44118-00-8D |
US $50.29 |
||
| replacement | |||||
|
35
|
35
61A-44118-00-94 Bracket |
61A-44118-00-94 |
from US $50.29 |
||
|
36
|
36
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
37
|
37
61A-44116-00-00 Spring |
61A-44116-00-00 |
from US $7.79 |
||
|
38
|
38
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
38
|
38
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
39
|
39
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
40
|
40
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
40
|
40
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
41
|
41
61A-44120-22-00 Handle Gear Shift Assy |
61A-44120-22-00 |
US $192.04 |
||
| replacements | |||||
|
41
|
41
61A-44120-23-00 Handle Gear Shift Assy |
61A-44120-23-00 |
US $192.04 |
||
|
41
|
41
61A-44120-24-00 Handle Gear Shift Assy |
61A-44120-24-00 |
US $308.30 |
||
|
41
|
41
61A-44120-33-00 Handle Gear Shift Assy |
61A-44120-33-00 |
from US $192.04 |
||
|
42
|
42
932-10091-65-00
O-Ring
|
932-10091-65-00 |
— | ||
| replacements | |||||
|
42
|
42
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.39 |
||
|
42
|
42
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.39 |
||
|
43
|
43
61A-44112-00-00 Stay, Handle Gear Shift |
61A-44112-00-00 |
from US $8.22 |
||
|
44
|
44
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
44
|
44
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
45
|
45
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
45
|
45
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
46
|
46
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
46
|
46
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
47
|
47
95313-08600-00 Nut |
95313-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
47
|
47
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
47
|
47
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
48
|
48
90386-90M90-00 Bush |
90386-90M90-00 |
from US $2.36 |
||
|
49
|
49
91490-20012-00 Pin. Cotter |
91490-20012-00 |
US $1.13 |
||
| replacement | |||||
|
49
|
49
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
50
|
50
90201-09M02-00 Washer, Plate |
90201-09M02-00 |
from US $2.55 |
||
|
51
|
51
61A-15315-00-00 Seal, Crankcase |
61A-15315-00-00 |
US $12.82 |
||
|
52
|
52
61A-42724-00-00 Grommet |
61A-42724-00-00 |
US $5.53 |
||
|
53
|
53
61A-44138-00-00 Washer |
61A-44138-00-00 |
from US $4.11 |
||
|
54
|
54
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
55
|
55
65L-41632-01-00 Lever, Magneto Control |
65L-41632-01-00 |
from US $50.29 |
||
|
56
|
56
6E5-48344-00-00 Cable End, Remote Control |
6E5-48344-00-00 |
from US $4.04 |
||
|
57
|
57
90468-18008-00 Clip |
90468-18008-00 |
from US $1.81 |
||
|
58
|
58
97013-08045-00 Bolt |
97013-08045-00 |
from US $4.11 |
||
|
59
|
59
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
60
|
60
90206-12M00-00 Washer, Wave |
90206-12M00-00 |
from US $3.26 |
||
|
61
|
61
90387-08M16-00 Collar |
90387-08M16-00 |
from US $2.36 |
||
| replacement | |||||
|
61
|
61
90387-084J8-00 Collar |
90387-084J8-00 |
US $4.77 |
||
|
62
|
62
61A-41237-00-00 Joint, Link |
61A-41237-00-00 |
from US $9.78 |
||
|
63
|
63
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
64
|
64
6H4-41237-00-00 Joint, Link |
6H4-41237-00-00 |
from US $4.04 |
||
|
65
|
65
6D0-41230-00-00 Cam Accelerator Comp |
6D0-41230-00-00 |
from US $58.03 |
||
|
66
|
66
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
67
|
67
90387-06M29-00 Collar |
90387-06M29-00 |
from US $5.81 |
||
|
68
|
68
90206-10M04-00 Washer, Wave |
90206-10M04-00 |
from US $1.84 |
||
|
69
|
69
90119-06MA4-00 Bolt, With Washer |
90119-06MA4-00 |
from US $1.84 |
||
|
70
|
70
69L-42744-00-00 Stay |
69L-42744-00-00 |
US $19.68 |
||
|
71
|
71
90157-06006-00 Screw, Pan Head |
90157-06006-00 |
from US $1.40 |
||
|
72
|
72
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
73
|
73
688-44194-00-00 Cap |
688-44194-00-00 |
from US $5.95 |
||
|
74
|
74
90159-05M25-00 Screw, With Washer |
90159-05M25-00 |
US $2.41 |
||
| replacements | |||||
|
74
|
74
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
74
|
74
97985-05212-00 Screw, With Washer |
97985-05212-00 |
from US $2.41 |
||
