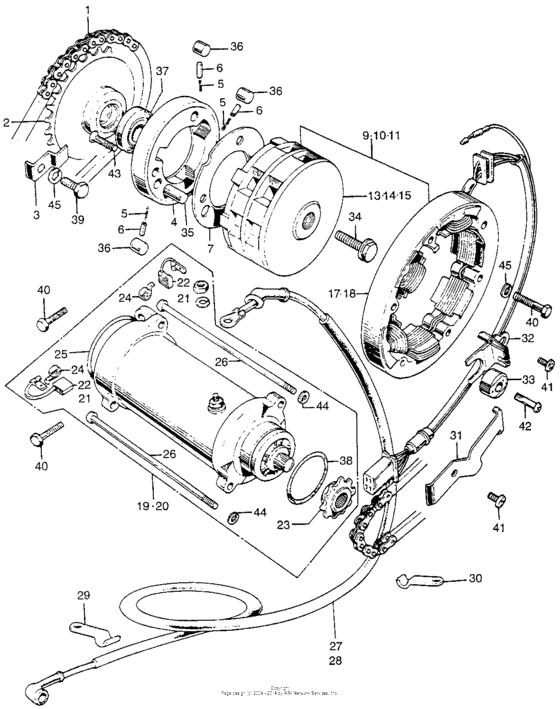

Alternator + starter motor Diagram Honda CA175 Touring
- Year
- 1969
- Model code
- CA175K3 A
- Sales region
- USA
- Frame
- CD1752005045 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28101-286-003
Chain,starting
|
28101-286-003 |
— | ||
| replacement | |||||
|
1
|
1
28101-402-003
Chain,starting
|
28101-402-003 |
— | ||
|
1
|
1
28101-402-003
Chain,starting
|
28101-402-003 |
— | ||
|
2
|
2
28110-216-000
Sprocket
|
28110-216-000 |
— | ||
|
3
|
3
28117-302-010
Plate,setting
|
28117-302-010 |
— | ||
|
4
|
4
28120-201-040 Clutch outer |
28120-201-040 |
from US $47.66 |
||
|
5
|
5
28125-253-020 Spring |
28125-253-020 |
from US $3.11 |
||
|
6
|
6
28126-253-030 Cap |
28126-253-030 |
from US $4.29 |
||
|
7
|
7
28128-253-030 Plate |
28128-253-030 |
from US $5.48 |
||
|
9
|
9
31100-302-671
Alternator (6v)
|
31100-302-671 |
— | ||
|
13
|
13
31101-302-671
Rotor
|
31101-302-671 |
— | ||
|
17
|
17
31102-302-671
Stator
|
31102-302-671 |
— | ||
|
19
|
19
31200-303-158
Starting,motor
|
31200-303-158 |
— | ||
|
22
|
22
31201-225-154 Brush,coarbon |
31201-225-154 |
US $16.59 |
||
|
23
|
23
31202-216-154 Sprocket |
31202-216-154 |
from US $29.38 |
||
|
24
|
24
31204-230-174 Spring, brush |
31204-230-174 |
from US $4.88 |
||
|
25
|
25
91302-MA6-003 O-ring (61x2) |
91302-MA6-003 |
from US $4.59 |
||
|
26
|
26
31205-292-158
Set bt,gear cover
|
31205-292-158 |
— | ||
|
27
|
27
32402-303-000
Cable,motor
|
32402-303-000 |
— | ||
|
29
|
29
32911-302-000
Clip,a cable
|
32911-302-000 |
— | ||
|
30
|
30
32912-302-000
Clip,b cable
|
32912-302-000 |
— | ||
|
32
|
32
35752-216-003
Stator,neut.sw.
|
35752-216-003 |
— | ||
|
33
|
33
35753-286-003
Rotor,neut.switch
|
35753-286-003 |
— | ||
|
34
|
34
90014-286-000
Bolt,rotor set
|
90014-286-000 |
— | ||
|
35
|
35
90701-250-000 Pin, knock (6x17.5) |
90701-250-000 |
from US $2.66 |
||
|
35
|
35
90704-259-000
Pin, knock
|
90704-259-000 |
— | ||
|
36
|
36
91101-253-020 Roller (10.2x9.5) |
91101-253-020 |
from US $2.89 |
||
|
37
|
37
91205-216-000
Oil seal, 20x26x4
|
91205-216-000 |
— | ||
| replacement | |||||
|
37
|
37
91205-216-003
Oil seal, 20x26x4
|
91205-216-003 |
— | ||
|
37
|
37
91205-216-003
Oil seal, 20x26x4
|
91205-216-003 |
— | ||
|
38
|
38
91309-MA6-000 O-ring |
91309-MA6-000 |
from US $3.63 |
||
|
39
|
39
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
40
|
40
92101-06028-0A Bolt, hex. (6x28) |
92101-06028-0A |
from US $0.51 |
||
|
41
|
41
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
42
|
42
93500-060-250-A ScrewPAN, 6X25 |
93500-060-250-A |
from US $0.52 |
||
|
43
|
43
93600-060-200-A ScrewFLAT, 6X20 |
93600-060-200-A |
from US $0.44 |
||
|
44
|
44
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
45
|
45
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
