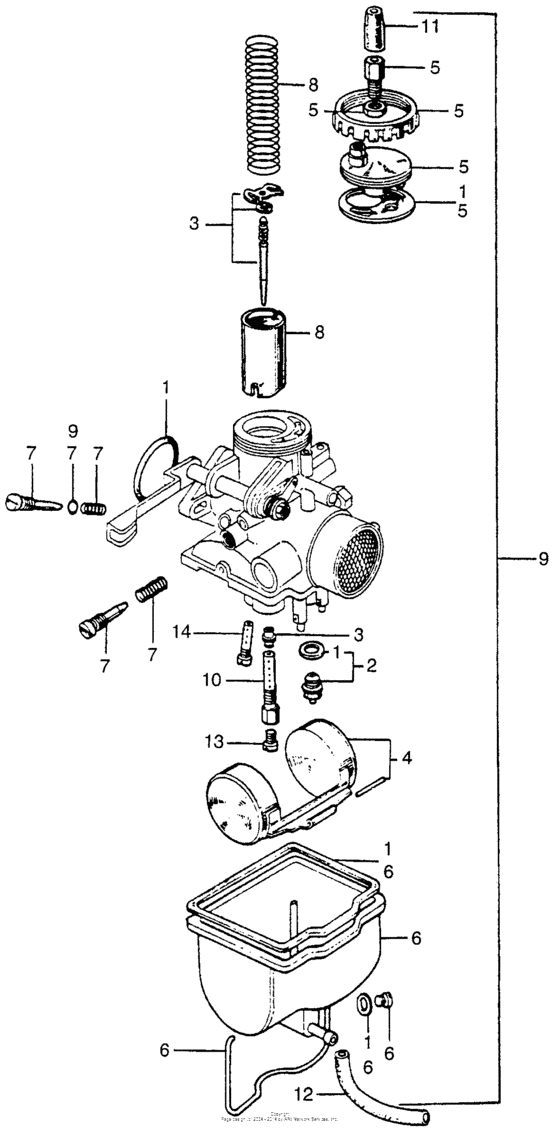

Ca175 carburetor Diagram Honda CA175 Touring
- Year
- 1969
- Model code
- CA175K3 A
- Sales region
- USA
- Frame
- CD1752005045 -
- Engine Capacity
- 175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-302-305
Gasket set
|
16010-302-305 |
— | ||
|
2
|
2
16011-375-004 Valve set, float |
16011-375-004 |
from US $35.31 |
||
|
3
|
3
16012-302-670
Needle set,jet
|
16012-302-670 |
— | ||
|
4
|
4
16013-312-004
Float set
|
16013-312-004 |
— | ||
|
5
|
5
16014-302-670
Top set
|
16014-302-670 |
— | ||
|
6
|
6
16015-236-004
Chamber set,float
|
16015-236-004 |
— | ||
|
7
|
7
16016-302-670
Screw set a
|
16016-302-670 |
— | ||
|
8
|
8
16022-302-670
Valve set,throt.
|
16022-302-670 |
— | ||
|
9
|
9
16100-302-014
Carbu,cd175k3
|
16100-302-014 |
— | ||
|
10
|
10
16139-302-004
Holder,needle jet
|
16139-302-004 |
— | ||
|
11
|
11
16118-166-004 Cap, cable sealing |
16118-166-004 |
from US $5.77 |
||
|
12
|
12
95001-350-009-0
Tube fuel
|
95001-350-009-0 |
— | ||
|
13
|
13
99114-246-1050 Jet,main #105 |
99114-246-1050 |
US $2.96 |
||
|
14
|
14
99124-302-0400
Jet,slow #40
|
99124-302-0400 |
— |
