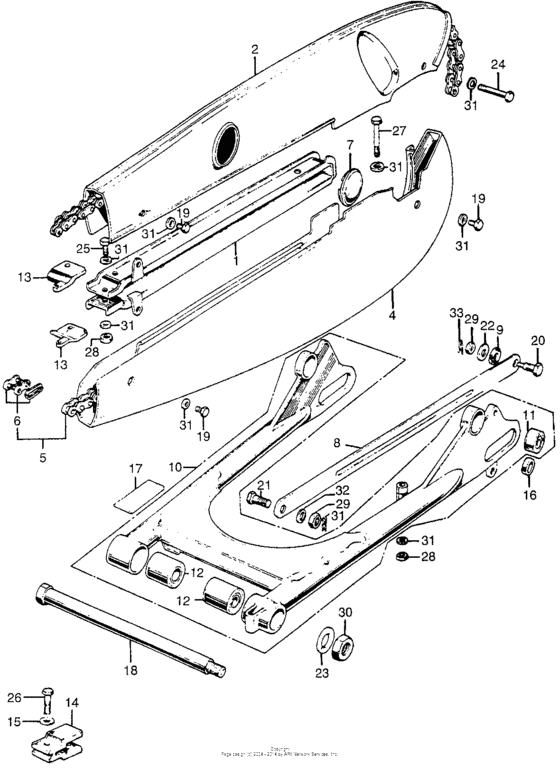

Ca175 chain case + swingarm Diagram Honda CA175 Touring
- Year
- 1969
- Model code
- CA175K3 A
- Sales region
- USA
- Frame
- CD1752005045 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40051-303-010-B
Case *nh1*
Use up to Frame SN 2003038 |
40051-303-010-B |
— | ||
|
1
|
1
40515-303-020-B
Case,half chain
Use from Frame SN 2003039 |
40515-303-020-B |
— | ||
|
2
|
2
40510-303-010-Z
Case (upper)
|
40510-303-010-Z |
— | ||
|
4
|
4
40520-303-010-Z
Case (lower)
|
40520-303-010-Z |
— | ||
|
5
|
5
40530-KC2-961 Chain, drive |
40530-KC2-961 |
from US $56.30 |
||
|
6
|
6
40531-205-013 Joint,drive chain |
40531-205-013 |
US $4.37 |
||
|
7
|
7
40545-001-000 Cap,chain case |
40545-001-000 |
from US $5.18 |
||
|
7
|
7
40545-141-000 Cap,chain case |
40545-141-000 |
from US $3.47 |
||
| replacement | |||||
|
7
|
7
40545-001-000 Cap,chain case |
40545-001-000 |
from US $5.18 |
||
|
8
|
8
43431-303-000 Arm,rear,brake |
43431-303-000 |
US $24.51 |
||
|
9
|
9
43434-286-000 Rubber |
43434-286-000 |
from US $2.66 |
||
|
10
|
10
52100-303-010-Z
Swingarm
|
52100-303-010-Z |
— | ||
|
11
|
11
52109-222-810
Bush,rubber
|
52109-222-810 |
— | ||
|
12
|
12
52147-303-310
Bush,rubber,rear.
|
52147-303-310 |
— | ||
|
13
|
13
52155-303-000
Slider, chain
Use up to Frame SN 2003038 |
52155-303-000 |
— | ||
|
14
|
14
52155-303-020
Slider,chain
Use from Frame SN 2003039 |
52155-303-020 |
— | ||
|
15
|
15
52156-303-000
Washer
Use from Frame SN 2003039 |
52156-303-000 |
— | ||
|
16
|
16
52170-302-000
Distance,collar
|
52170-302-000 |
— | ||
|
17
|
17
87504-028-670 Mark, caution |
87504-028-670 |
from US $4.64 |
||
|
18
|
18
90121-303-000 Bolt,pivot |
90121-303-000 |
US $68.99 |
||
|
19
|
19
90122-303-000
Bolt,chain,case
|
90122-303-000 |
— | ||
|
20
|
20
90127-303-010
Bolt,torque
|
90127-303-010 |
— | ||
|
21
|
21
90133-303-000
Bolt,stopper,arm
|
90133-303-000 |
— | ||
|
22
|
22
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
23
|
23
90527-634-670
Wash,sub 14.5x2mm
|
90527-634-670 |
— | ||
|
24
|
24
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
25
|
25
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
26
|
26
92101-06028-0A Bolt, hex. (6x28) |
92101-06028-0A |
from US $0.51 |
||
|
27
|
27
92101-06045-0A Bolt, hex. (6x45) |
92101-06045-0A |
from US $0.59 |
||
|
28
|
28
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
29
|
29
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.44 |
||
|
30
|
30
94001-140-200-S
Nut,hex 14m/m
|
94001-140-200-S |
— | ||
|
31
|
31
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
32
|
32
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.25 |
||
|
33
|
33
94251-06000 PinLOCK, 6MM |
94251-06000 |
from US $0.44 |
||
