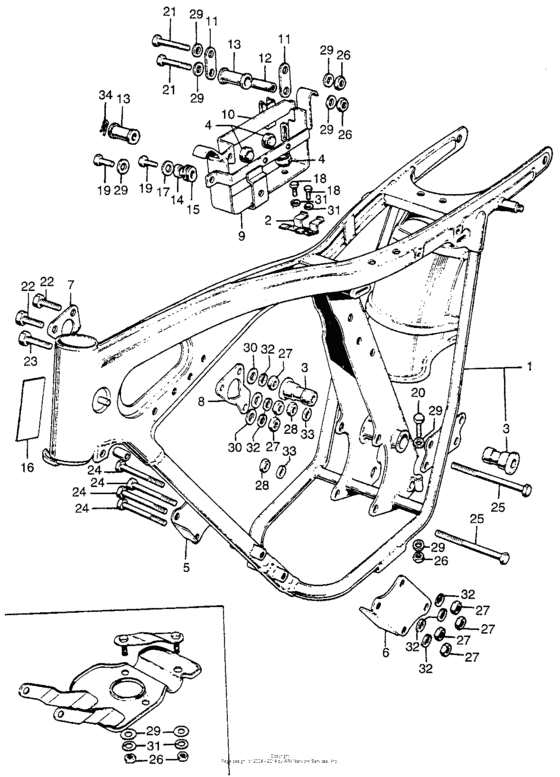

Ca175 frame Diagram Honda CA175 Touring
- Year
- 1969
- Model code
- CA175K3 A
- Sales region
- USA
- Frame
- CD1752005045 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50100-303-060-Z
Frame
|
50100-303-060-Z |
— | ||
|
2
|
2
50118-303-010
Stay, tank setting
|
50118-303-010 |
— | ||
|
3
|
3
50157-303-000
Bush,center,pipe
|
50157-303-000 |
— | ||
|
4
|
4
50327-300-000 Rubber b battery |
50327-300-000 |
from US $7.28 |
||
|
5
|
5
50352-303-010-Z
Plate, r. fr.
|
50352-303-010-Z |
— | ||
|
6
|
6
50353-303-010-Z
Plate, l. fr.
|
50353-303-010-Z |
— | ||
|
7
|
7
50354-303-000
Plate eng hanger
|
50354-303-000 |
— | ||
|
8
|
8
50355-303-000
Plate eng hanger
|
50355-303-000 |
— | ||
|
9
|
9
83600-303-010
Tray, battery
|
83600-303-010 |
— | ||
|
10
|
10
83601-303-010
Band,battery
|
83601-303-010 |
— | ||
|
11
|
11
83611-303-000
Plate
|
83611-303-000 |
— | ||
|
12
|
12
83612-303-000
Collar,bat,tray
|
83612-303-000 |
— | ||
|
13
|
13
83613-303-000
Rubber,bat,tray
|
83613-303-000 |
— | ||
|
14
|
14
83614-303-000
Collar b
|
83614-303-000 |
— | ||
|
15
|
15
83615-303-000
Rubber,b,mount
|
83615-303-000 |
— | ||
|
16
|
16
87125-041-680 Honda Motor Co., Made In Japan, Sticker |
87125-041-680 |
from US $1.40 |
||
|
17
|
17
90581-831-650 Washer (18mm) |
90581-831-650 |
from US $1.55 |
||
|
18
|
18
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
19
|
19
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
20
|
20
92000-06036 Bolt,hex 6x36 |
92000-06036 |
from US $0.52 |
||
| replacement | |||||
|
20
|
20
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
20
|
20
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
21
|
21
92101-06040-0A Bolt, hex., 6x40 |
92101-06040-0A |
US $0.52 |
||
|
22
|
22
92200-08040-0A Bolt,hex.8x40 |
92200-08040-0A |
US $0.59 |
||
|
23
|
23
92200-08063-0A
Bolt,hex.8x63
|
92200-08063-0A |
— | ||
|
24
|
24
92200-08080-0A Bolt,hex.8x80 |
92200-08080-0A |
US $0.81 |
||
|
25
|
25
92200-10106-0A
Bolt,hex.10x106
|
92200-10106-0A |
— | ||
|
26
|
26
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
27
|
27
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.44 |
||
|
28
|
28
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.52 |
||
|
29
|
29
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
30
|
30
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.25 |
||
|
31
|
31
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
32
|
32
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
33
|
33
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
34
|
34
94251-06000 PinLOCK, 6MM |
94251-06000 |
from US $0.44 |
||
