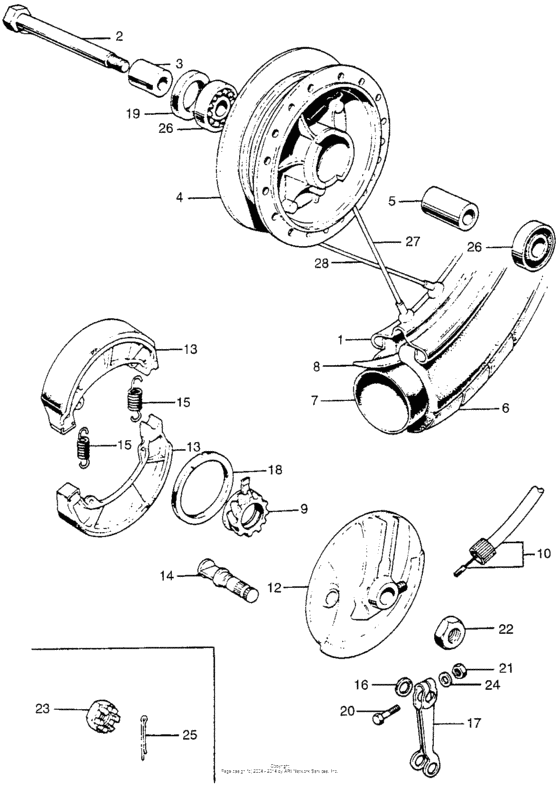

Ca175 front wheel Diagram Honda CA175 Touring
- Year
- 1969
- Model code
- CA175K3 A
- Sales region
- USA
- Frame
- CD1752005045 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
45120-354-670
Shoe,front brake
|
45120-354-670 |
— | ||
|
1
|
1
42701-303-003
Rim,wheel
|
42701-303-003 |
— | ||
|
2
|
2
44301-230-020
Axle,front wheel
Use up to Frame SN 2015922 |
44301-230-020 |
— | ||
|
2
|
2
44301-303-000
Axle,front wheel
|
44301-303-000 |
— | ||
|
3
|
3
44311-230-020
Collar,front axle
|
44311-230-020 |
— | ||
|
4
|
4
44601-230-020
Hub,front wheel
|
44601-230-020 |
— | ||
|
5
|
5
44620-230-000 Collar, fr |
44620-230-000 |
from US $6.22 |
||
|
6
|
6
44711-303-007
Tire,front 300-17
|
44711-303-007 |
— | ||
|
7
|
7
42712-102-761 Tube,wheel |
42712-102-761 |
US $23.68 |
||
|
8
|
8
42713-102-005 Flap,tire inoue |
42713-102-005 |
US $9.67 |
||
|
9
|
9
44806-303-000
Gear,speedometer
|
44806-303-000 |
— | ||
|
10
|
10
44830-303-010
Cable,speedometer
|
44830-303-010 |
— | ||
|
12
|
12
45010-303-690
Panel, fr. brake
|
45010-303-690 |
— | ||
|
13
|
13
45120-230-000
Shoe,front brake
|
45120-230-000 |
— | ||
|
14
|
14
45131-230-020
Cam,front brake
|
45131-230-020 |
— | ||
|
15
|
15
45133-303-000
Spring brake shoe
|
45133-303-000 |
— | ||
|
16
|
16
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.22 |
||
|
17
|
17
45410-230-030
Arm,front brake
|
45410-230-030 |
— | ||
|
18
|
18
91251-230-003 Oil seal (54x66x7) |
91251-230-003 |
from US $14.82 |
||
|
19
|
19
91252-230-003 Oil seal (26x42x7) |
91252-230-003 |
from US $9.92 |
||
|
20
|
20
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
21
|
21
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
22
|
22
94001-140-200-S
Nut,hex 14m/m
Use up to Frame SN 2015922 |
94001-140-200-S |
— | ||
|
23
|
23
94011-140-200-S
Nut,castle 14mm
Use from Frame SN 2015923 |
94011-140-200-S |
— | ||
|
24
|
24
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
25
|
25
94201-30250 PinSPLIT, 3.0X25 Use from Frame SN 2015923 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
25
|
25
9420130450 Pin, cotter (3.0x45)Use from Frame SN 2015923 |
9420130450 |
from US $0.44 |
||
|
25
|
25
9420130280 Pin, split, 3.0x28Use from Frame SN 2015923 |
9420130280 |
US $0.44 |
||
|
25
|
25
9420130450 Pin, cotter (3.0x45)Use from Frame SN 2015923 |
9420130450 |
from US $0.44 |
||
|
26
|
26
96140-63020 B/brg rad n/com |
96140-63020 |
from US $7.84 |
||
|
28
|
28
97436-311-431-0
Spork a,11x151.5
|
97436-311-431-0 |
— | ||
