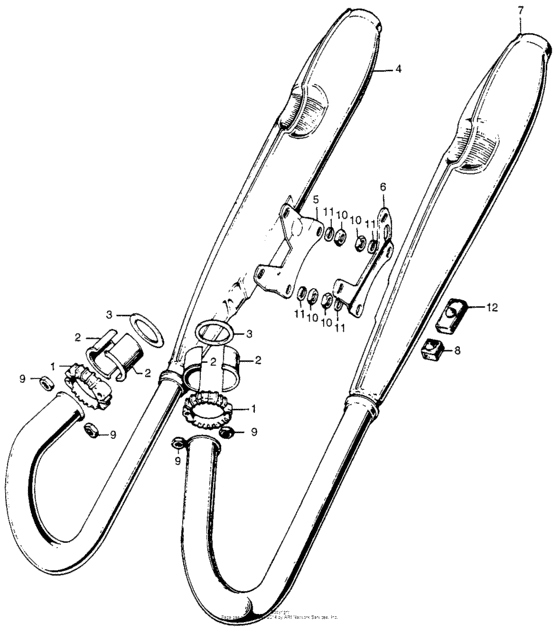

Ca175 muffler Diagram Honda CA175 Touring
- Year
- 1969
- Model code
- CA175K3 A
- Sales region
- USA
- Frame
- CD1752005045 -
- Engine Capacity
- 175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-333-010 Joint,exh-pipe |
18231-333-010 |
US $41.48 |
||
|
2
|
2
18233-306-010
Collar,joint
|
18233-306-010 |
— | ||
|
3
|
3
18291-MN5-650 Gasket, ex. pipe |
18291-MN5-650 |
from US $5.03 |
||
|
4
|
4
18300-302-687
Muffler comp,r.ex
|
18300-302-687 |
— | ||
|
5
|
5
18340-303-020-B
Stay,r,muffler,
|
18340-303-020-B |
— | ||
|
6
|
6
18341-303-020-B
Stay,l,muffler
|
18341-303-020-B |
— | ||
|
7
|
7
18400-302-687
Muffler comp,r.ex
|
18400-302-687 |
— | ||
|
8
|
8
9501163000 Rubber c, stand stopper |
9501163000 |
from US $1.55 |
||
|
9
|
9
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
10
|
10
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
11
|
11
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
12
|
12
9501161000 Rubber a, stand stopper |
9501161000 |
from US $0.74 |
