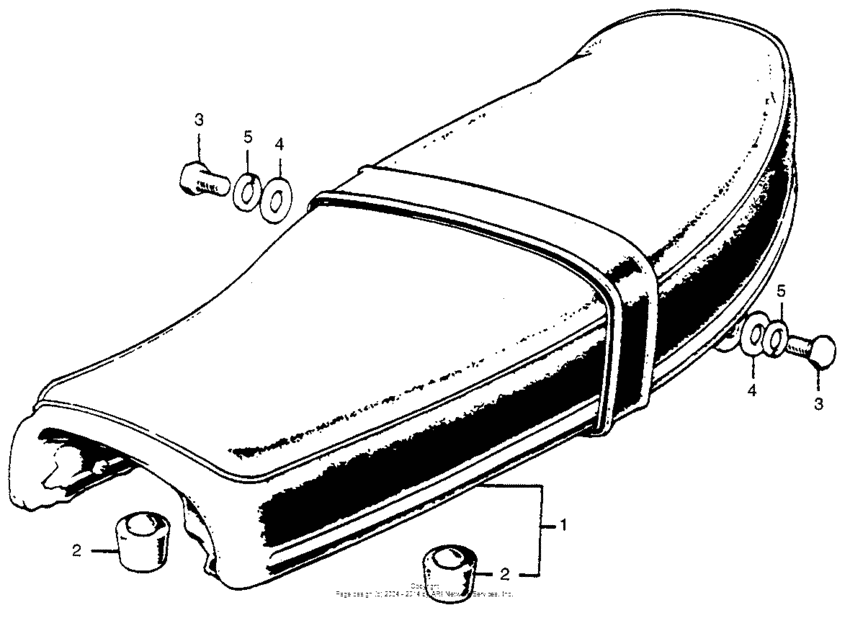

Ca175 seat Diagram Honda CA175 Touring
- Year
- 1969
- Model code
- CA175K3 A
- Sales region
- USA
- Frame
- CD1752005045 -
- Engine Capacity
- 175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77200-302-000-A
Seat,comp,double
|
77200-302-000-A |
— | ||
|
2
|
2
77204-286-020 Rubber,seat sett. |
77204-286-020 |
from US $9.03 |
||
|
3
|
3
92101-08020-0A BoltHEX., 8X20 |
92101-08020-0A |
from US $0.52 |
||
|
4
|
4
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.25 |
||
|
5
|
5
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
