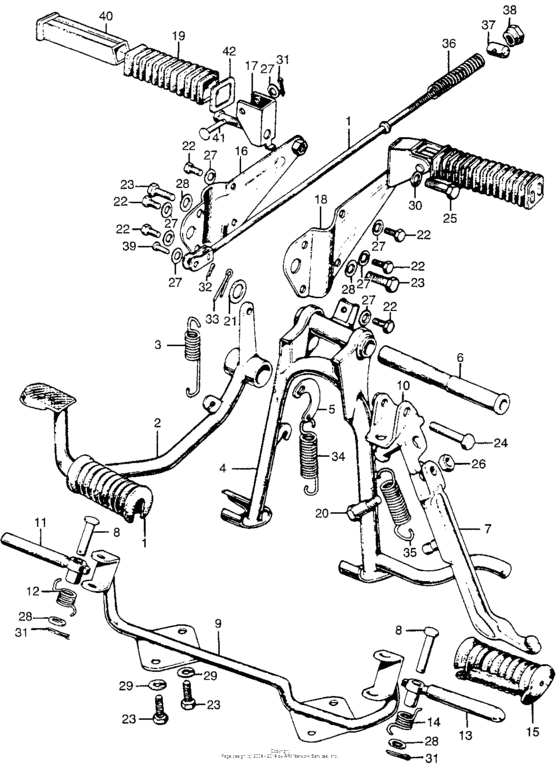

Ca175 stand + step Diagram Honda CA175 Touring
- Year
- 1969
- Model code
- CA175K3 A
- Sales region
- USA
- Frame
- CD1752005045 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43451-307-000
Rod,rear brake
|
43451-307-000 |
— | ||
|
2
|
2
46500-303-040
Pedal,brake
|
46500-303-040 |
— | ||
|
3
|
3
46541-354-000
Spring,brk.pedal
|
46541-354-000 |
— | ||
|
4
|
4
50500-336-000-B
Stand,main
|
50500-336-000-B |
— | ||
|
5
|
5
50523-303-000
Hook,spring
|
50523-303-000 |
— | ||
|
6
|
6
50526-399-000 Shaft,stand pivot |
50526-399-000 |
US $21.35 |
||
|
7
|
7
50530-351-000
Side,stand bar
|
50530-351-000 |
— | ||
|
8
|
8
50603-033-010 Pin, step bar joint |
50603-033-010 |
from US $3.70 |
||
|
9
|
9
50610-306-000-B
Bar,step
|
50610-306-000-B |
— | ||
|
10
|
10
50611-303-000-B
Bracket sidestand
|
50611-303-000-B |
— | ||
|
11
|
11
50616-283-020-B
Arm,r step
|
50616-283-020-B |
— | ||
|
12
|
12
50617-283-000
Spring, return
|
50617-283-000 |
— | ||
|
13
|
13
50642-283-020-B
Arm,l step
|
50642-283-020-B |
— | ||
|
14
|
14
50644-283-000
Spring, return
|
50644-283-000 |
— | ||
|
15
|
15
50661-110-000 Rubber,step |
50661-110-000 |
from US $13.12 |
||
|
16
|
16
50711-303-030-Z
Arm, r. pillion step
|
50711-303-030-Z |
— | ||
|
17
|
17
50713-303-000-B
Bracket,pillion
|
50713-303-000-B |
— | ||
|
18
|
18
50721-303-030-Z Arm, l. pillion step |
50721-303-030-Z |
US $32.72 |
||
|
19
|
19
95011-31000 Rubber,pillon |
95011-31000 |
from US $1.85 |
||
|
20
|
20
90108-230-000
Screw,pivot
|
90108-230-000 |
— | ||
|
21
|
21
90512-303-000 Washer (17.5mm) |
90512-303-000 |
from US $1.92 |
||
|
22
|
22
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
22
|
22
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
22
|
22
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
23
|
23
92101-08016-0A Bolt, hex., 8x16 |
92101-08016-0A |
from US $0.52 |
||
|
24
|
24
92101-08040-0A Bolt, hex., 8x40 |
92101-08040-0A |
from US $0.59 |
||
|
25
|
25
92101-10025-0A Bolt, hex., 10x25 |
92101-10025-0A |
from US $0.74 |
||
|
26
|
26
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
||
|
27
|
27
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
28
|
28
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.25 |
||
|
29
|
29
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
30
|
30
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
31
|
31
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
32
|
32
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
32
|
32
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
32
|
32
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
32
|
32
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
32
|
32
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
33
|
33
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
33
|
33
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
33
|
33
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
34
|
34
95014-71802 Spring a,main |
95014-71802 |
US $2.81 |
||
|
35
|
35
95014-72204 Spg.b1,side stand |
95014-72204 |
from US $1.63 |
||
|
36
|
36
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
37
|
37
95015-31001 Joint aBRAKE ARM |
95015-31001 |
from US $0.74 |
||
|
38
|
38
9501541000 Nut a, brake rod adjusting |
9501541000 |
from US $0.81 |
||
|
39
|
39
95015-51000 Pin a, brake rod joint |
95015-51000 |
US $0.74 |
||
|
40
|
40
95015-62000 Bar,pillion |
95015-62000 |
from US $8.58 |
||
|
41
|
41
9501582000 Pin b |
9501582000 |
from US $1.55 |
||
|
42
|
42
95015-91000 Washer,pillion |
95015-91000 |
from US $0.89 |
||
