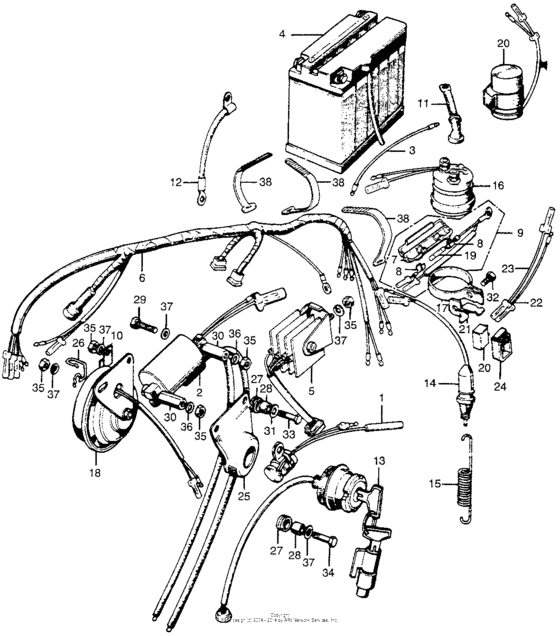

Ca175 wire harness + battery Diagram Honda CA175 Touring
- Year
- 1969
- Model code
- CA175K3 A
- Sales region
- USA
- Frame
- CD1752005045 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30280-237-154 Condenser comp. |
30280-237-154 |
US $26.79 |
||
|
2
|
2
30500-302-013
Coil assy., ignition
|
30500-302-013 |
— | ||
|
3
|
3
30502-302-000
Cord,coil sub
|
30502-302-000 |
— | ||
|
4
|
4
31500-402-505
Battery (6n-12a-2d)
|
31500-402-505 |
— | ||
|
5
|
5
31700-351-008
Rectifier,selen
|
31700-351-008 |
— | ||
|
6
|
6
32100-303-040
Harness,wire
|
32100-303-040 |
— | ||
|
7
|
7
32111-230-000 Case, fuse connector |
32111-230-000 |
from US $4.88 |
||
|
8
|
8
32112-230-000 Connector, fuse |
32112-230-000 |
from US $5.66 |
||
|
9
|
9
32211-351-000
Harness,magnetic
|
32211-351-000 |
— | ||
|
10
|
10
32172-303-000
Clip, wire harness
|
32172-303-000 |
— | ||
|
11
|
11
32401-319-010
Cable,bat.starter
|
32401-319-010 |
— | ||
|
12
|
12
32601-237-680
Cable,bat.earth
|
32601-237-680 |
— | ||
|
13
|
13
35010-230-010
Switch kit,comb.
|
35010-230-010 |
— | ||
|
13
|
13
35010-315-017 Switch, ignition |
35010-315-017 |
from US $101.71 |
||
|
14
|
14
35350-098-005 Switch assy,,stop |
35350-098-005 |
US $13.32 |
||
|
15
|
15
35357-KE5-000
Spring,stop sw.
|
35357-KE5-000 |
— | ||
|
15
|
15
35357-303-010
Spring,stop,sw
|
35357-303-010 |
— | ||
|
16
|
16
35850-303-000
Switch,magnetic
|
35850-303-000 |
— | ||
|
17
|
17
35852-303-010
Stay,magnetic,sw,
|
35852-303-010 |
— | ||
|
18
|
18
38100-303-004
Horn assy
|
38100-303-004 |
— | ||
|
19
|
19
98200-11500 Fuse (15a) |
98200-11500 |
from US $0.59 |
||
|
20
|
20
38300-GF0-405 Relay, turn signal (FR-2208) |
38300-GF0-405 |
from US $53.72 |
||
|
21
|
21
38301-315-670
Stay
|
38301-315-670 |
— | ||
|
22
|
22
38304-292-670
Sub-wire a
|
38304-292-670 |
— | ||
|
23
|
23
38305-292-670
Sub-wire b
|
38305-292-670 |
— | ||
|
24
|
24
38306-292-670
Suspension,relay
|
38306-292-670 |
— | ||
|
25
|
25
50375-303-010-B
Bracket,main,sw
|
50375-303-010-B |
— | ||
|
25
|
25
50375-303-010-Z
Bracket, main switch
|
50375-303-010-Z |
— | ||
|
26
|
26
50402-313-010
Clip,meter.cable
|
50402-313-010 |
— | ||
|
27
|
27
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.44 |
||
|
28
|
28
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
29
|
29
90171-303-000
Bolt,ign,coil set
|
90171-303-000 |
— | ||
|
30
|
30
90301-303-000
Nut,ignition coil
|
90301-303-000 |
— | ||
|
31
|
31
90581-831-650 Washer (18mm) |
90581-831-650 |
from US $1.55 |
||
|
32
|
32
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
33
|
33
92101-06040-0A Bolt, hex., 6x40 |
92101-06040-0A |
US $0.52 |
||
|
34
|
34
92101-06045-0A Bolt, hex. (6x45) |
92101-06045-0A |
from US $0.59 |
||
|
35
|
35
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
36
|
36
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
37
|
37
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
38
|
38
9501462200 Band b2, wire |
9501462200 |
from US $1.18 |
