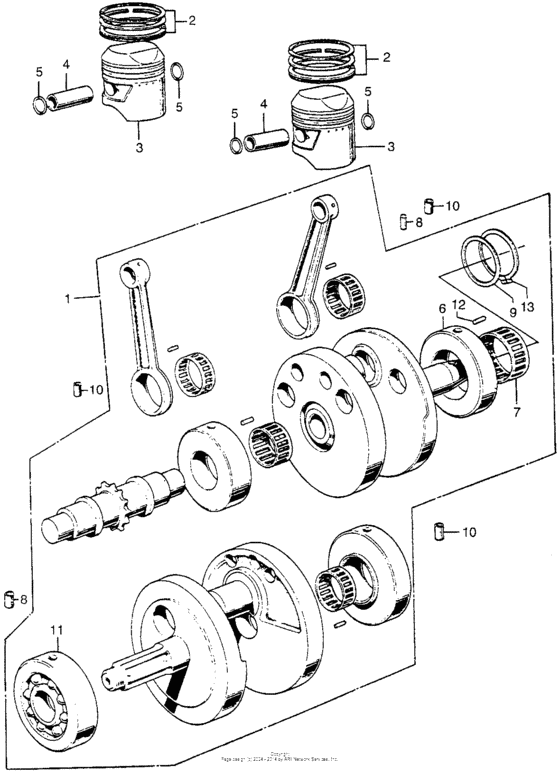

Crankshaft Diagram Honda CA175 Touring
- Year
- 1969
- Model code
- CA175K3 A
- Sales region
- USA
- Frame
- CD1752005045 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-302-000 Crankshaft assy |
13000-302-000 |
US $2,907.53 |
||
|
2
|
2
13011-302-305
Superceded
|
13011-302-305 |
— | ||
| replacement | |||||
|
2
|
2
13011-439-005 Ring set (std) |
13011-439-005 |
from US $43.52 |
||
|
2
|
2
13011-439-005 Ring set (std) |
13011-439-005 |
from US $43.52 |
||
|
2
|
2
13021-439-005
Ring set (0.25)
|
13021-439-005 |
— | ||
|
2
|
2
13031-302-305
Ring set (os) (0.50)
|
13031-302-305 |
— | ||
|
2
|
2
13031-439-005
Ring set (0.50)
|
13031-439-005 |
— | ||
|
2
|
2
13041-302-305
Ring set (os) (0.75)
|
13041-302-305 |
— | ||
| replacement | |||||
|
2
|
2
13041-439-005 Ring set (0.75) |
13041-439-005 |
US $35.48 |
||
|
2
|
2
13041-439-005 Ring set (0.75) |
13041-439-005 |
US $35.48 |
||
|
2
|
2
13051-439-005
Ring set (1.00)
|
13051-439-005 |
— | ||
|
3
|
3
13101-313-010
Piston (std)
|
13101-313-010 |
— | ||
|
3
|
3
13102-313-010
Piston (os) (0.25)
|
13102-313-010 |
— | ||
|
3
|
3
13103-313-010
Piston (os) (0.50)
|
13103-313-010 |
— | ||
|
3
|
3
13104-313-010
Piston
|
13104-313-010 |
— | ||
|
3
|
3
13105-313-010
Piston
|
13105-313-010 |
— | ||
|
4
|
4
13111-028-000 Pin, piston |
13111-028-000 |
from US $4.30 |
||
|
4
|
4
13111-217-000 Pin, piston |
13111-217-000 |
US $13.50 |
||
| replacement | |||||
|
4
|
4
13111-028-000 Pin, piston |
13111-028-000 |
from US $4.30 |
||
|
5
|
5
94601-14000 Clip, piston pin, 14mm |
94601-14000 |
from US $0.44 |
||
|
6
|
6
13427-216-004
R/brg other n/com
|
13427-216-004 |
— | ||
|
7
|
7
13482-216-000
Retainer,main brg
|
13482-216-000 |
— | ||
|
8
|
8
30906-235-000
Knock,flywheel
|
30906-235-000 |
— | ||
|
9
|
9
90452-216-000
Washer, thrust
|
90452-216-000 |
— | ||
|
10
|
10
90701-202-000
Pin, knock 6x10
|
90701-202-000 |
— | ||
|
11
|
11
91001-216-000
B/brg rad n/com
|
91001-216-000 |
— | ||
|
12
|
12
9622040100 Roller, 4x10 |
9622040100 |
from US $0.22 |
||
|
13
|
13
94510-35120
Circlip,35mm
|
94510-35120 |
— | ||
