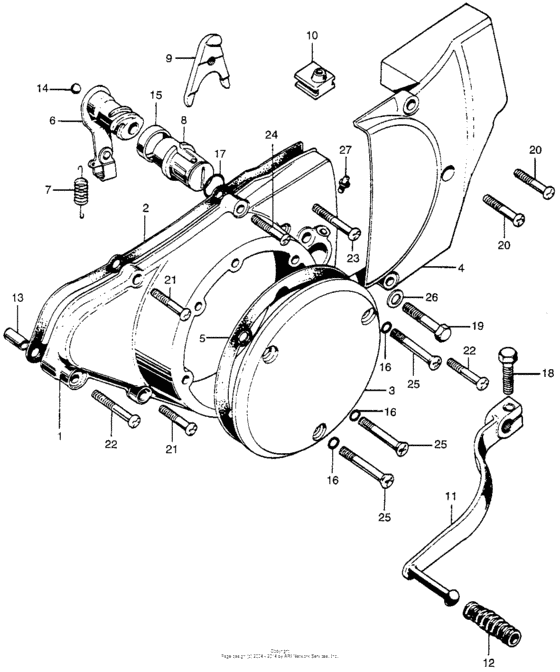

Left Crankcase Cover Diagram Honda CA175 Touring
- Year
- 1969
- Model code
- CA175K3 A
- Sales region
- USA
- Frame
- CD1752005045 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11340-302-020
Cover, l. crankcase
|
11340-302-020 |
— | ||
|
2
|
2
11395-302-307
Gasket, l
|
11395-302-307 |
— | ||
|
3
|
3
11431-338-000
Cover, alternator
|
11431-338-000 |
— | ||
|
5
|
5
11691-354-306
Gasket, dynamo cover
|
11691-354-306 |
— | ||
|
6
|
6
22810-216-030
Thread, clutch
|
22810-216-030 |
— | ||
|
7
|
7
22815-216-010
Spring, clutch
|
22815-216-010 |
— | ||
|
8
|
8
22841-216-030
Adjuster,clutch
|
22841-216-030 |
— | ||
|
9
|
9
22844-200-010
Piece,adj.fixing
|
22844-200-010 |
— | ||
|
10
|
10
22875-216-000
Joint, wire
|
22875-216-000 |
— | ||
|
11
|
11
24700-304-020
Pedal,gear change
|
24700-304-020 |
— | ||
|
12
|
12
9501140000 Rubber, shift pedal |
9501140000 |
from US $0.74 |
||
|
13
|
13
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
14
|
14
96211-10000 Ball |
96211-10000 |
from US $0.22 |
||
|
15
|
15
91205-222-003
Oil seal
|
91205-222-003 |
— | ||
|
16
|
16
91301-216-000 O-ring, 5.5x1.5 |
91301-216-000 |
from US $3.40 |
||
|
17
|
17
91354-371-000 O-ring (23x2) |
91354-371-000 |
from US $4.24 |
||
|
18
|
18
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
19
|
19
92000-06036 Bolt,hex 6x36 |
92000-06036 |
from US $0.52 |
||
| replacement | |||||
|
19
|
19
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
19
|
19
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
20
|
20
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
21
|
21
93500-060-250-A ScrewPAN, 6X25 |
93500-060-250-A |
from US $0.52 |
||
|
22
|
22
93500-060-320-A ScrewPAN, 6X32 |
93500-060-320-A |
from US $0.58 |
||
|
23
|
23
93500-060350A Screw, pan, 6x35 |
93500-060350A |
from US $0.52 |
||
|
24
|
24
93500-060400A Screw, pan (6x40) |
93500-060400A |
from US $0.52 |
||
|
25
|
25
93700-060-400-A Screw, oval (6x40) |
93700-060-400-A |
from US $0.52 |
||
|
26
|
26
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
27
|
27
96201-30001 Nipple,grease4.5 |
96201-30001 |
from US $0.81 |
||
