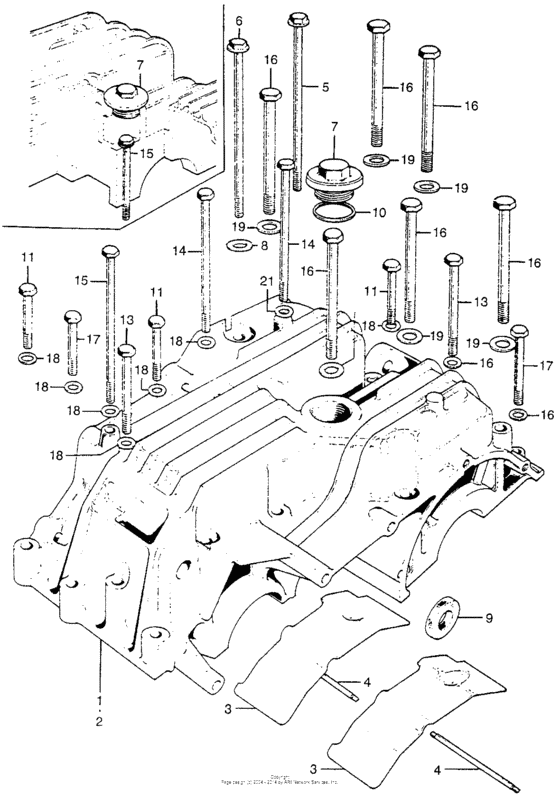

Lower crankcase Diagram Honda CA175 Touring
- Year
- 1969
- Model code
- CA175K3 A
- Sales region
- USA
- Frame
- CD1752005045 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-302-030
Crankcase (lower)
Use up to Engine SN 4006450 |
11200-302-030 |
— | ||
|
2
|
2
11200-354-000
Crankcase (lower)
Use from Engine SN 4006450 |
11200-354-000 |
— | ||
|
3
|
3
11751-216-000
Separator, oil
|
11751-216-000 |
— | ||
|
4
|
4
11781-302-000
Bar, separator
|
11781-302-000 |
— | ||
|
5
|
5
90002-302-000
Bolt,flange 8x130
|
90002-302-000 |
— | ||
|
6
|
6
90003-302-000
Bolt,hex 8x135
|
90003-302-000 |
— | ||
|
7
|
7
90013-312-000
Bolt,drain.cock
|
90013-312-000 |
— | ||
|
8
|
8
90441-286-000 Washer, sealing, 8mm |
90441-286-000 |
from US $2.91 |
||
|
9
|
9
91202-426-003 Oilseal,12x25x4.5 |
91202-426-003 |
from US $5.92 |
||
|
10
|
10
91304-HB3-003 O-ring (33.5x3.0) |
91304-HB3-003 |
from US $5.62 |
||
|
11
|
11
92000-06036 Bolt,hex 6x36 |
92000-06036 |
from US $0.52 |
||
| replacement | |||||
|
11
|
11
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
11
|
11
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
13
|
13
92101-06045-0A Bolt, hex. (6x45) |
92101-06045-0A |
from US $0.59 |
||
|
14
|
14
92000-06056-0A Bolt,hex., 6x56 |
92000-06056-0A |
US $0.59 |
||
|
15
|
15
92000-06095
Bolt, hex., 6x95
|
92000-06095 |
— | ||
|
16
|
16
92101-06110-0A Bolt, hex. (6x112) |
92101-06110-0A |
from US $1.04 |
||
|
17
|
17
92101-08040-0A Bolt, hex., 8x40 |
92101-08040-0A |
from US $0.59 |
||
|
18
|
18
92101-08095-0A Bolt, hex. (8x95) |
92101-08095-0A |
from US $1.04 |
||
|
19
|
19
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
21
|
21
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.25 |
||
