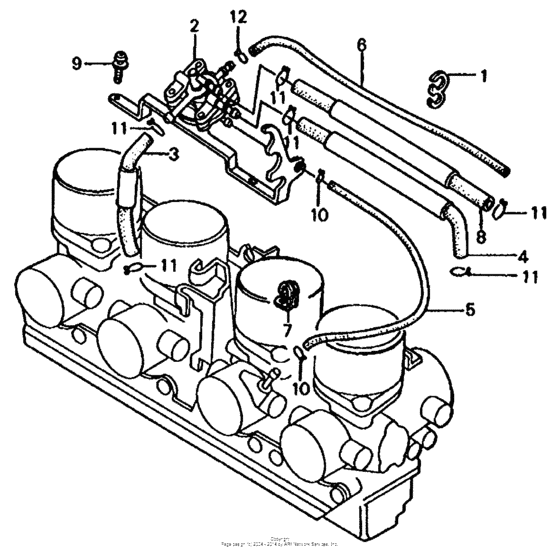

Automatic fuel valve Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1000C A
- Sales region
- USA
- Frame
- 1HFSC100*DA000001 - 1HFSC100*DA007620
- Engine Capacity
- 1000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16876-671-650
Clamp a, tube
|
16876-671-650 |
— | ||
|
2
|
2
16970-MG1-671
Auto cock,fuel
|
16970-MG1-671 |
— | ||
|
3
|
3
16971-MG1-671
Tube,fuel
|
16971-MG1-671 |
— | ||
|
4
|
4
16971-461-771
Tube,fuel
|
16971-461-771 |
— | ||
|
5
|
5
16972-461-771
Tube,vacuum
|
16972-461-771 |
— | ||
|
6
|
6
16973-461-771
Tube,air vent
|
16973-461-771 |
— | ||
|
7
|
7
16974-461-771
Clamper,tube
|
16974-461-771 |
— | ||
|
8
|
8
16990-461-750
Tube,fuel,7.3x225
|
16990-461-750 |
— | ||
|
9
|
9
93892-0501600 Screw-washer, 5x16 |
93892-0501600 |
from US $0.44 |
||
|
10
|
10
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
11
|
11
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
12
|
12
9500202650 Clip, tube (b6.5) |
9500202650 |
US $2.11 |
