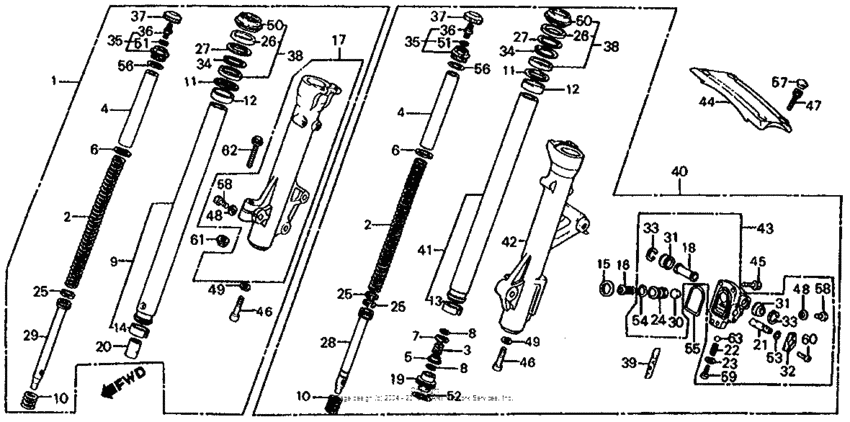

Front shock asborber Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1000C A
- Sales region
- USA
- Frame
- 1HFSC100*DA000001 - 1HFSC100*DA007620
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-MG1-013
S/abs assy., r. fr.
|
51400-MG1-013 |
— | ||
|
2
|
2
51401-MG1-003
Spring, fr. fork
|
51401-MG1-003 |
— | ||
|
3
|
3
51402-MB7-611 Spring, oil lock |
51402-MB7-611 |
US $7.97 |
||
|
4
|
4
51402-MG1-003
Collar, spring
|
51402-MG1-003 |
— | ||
|
5
|
5
51403-MB7-611 Valve, oil lock |
51403-MB7-611 |
US $12.48 |
||
|
6
|
6
51403-463-003 Pl.spg joint |
51403-463-003 |
US $3.70 |
||
|
7
|
7
51404-MB7-611 Seat, spring |
51404-MB7-611 |
from US $2.86 |
||
|
8
|
8
51405-MB7-611 Ring, stopper |
51405-MB7-611 |
from US $2.74 |
||
|
9
|
9
51410-MG1-003
Pipe fr.fork
|
51410-MG1-003 |
— | ||
|
10
|
10
51411-MG1-003 Spring, fr |
51411-MG1-003 |
US $9.66 |
||
|
11
|
11
51412-463-003 Ring, back-up |
51412-463-003 |
from US $6.07 |
||
|
12
|
12
51414-463-003 Bush, fork pipe |
51414-463-003 |
from US $6.19 |
||
|
13
|
13
51415-MB9-781 Bush,slider |
51415-MB9-781 |
from US $12.97 |
||
|
14
|
14
51415-463-003 Sleeve, fork pipe |
51415-463-003 |
from US $14.36 |
||
|
15
|
15
51417-MJ0-013 Packing |
51417-MJ0-013 |
US $5.77 |
||
|
16
|
16
51418-ME1-671
Spring,piston
|
51418-ME1-671 |
— | ||
|
17
|
17
51421-MG1-003
Case, r. (lower)
|
51421-MG1-003 |
— | ||
|
18
|
18
51423-MC7-003
Collar,piston
|
51423-MC7-003 |
— | ||
|
19
|
19
51432-MB7-611 Piece,oil lock |
51432-MB7-611 |
US $26.06 |
||
|
20
|
20
51432-463-003
Piece,oil lock
|
51432-463-003 |
— | ||
|
21
|
21
51433-MB0-003
Rod,adjusting
|
51433-MB0-003 |
— | ||
|
22
|
22
51434-MC7-003
Spring, click
|
51434-MC7-003 |
— | ||
|
23
|
23
51435-MC7-003 Washer (5mm) |
51435-MC7-003 |
from US $2.59 |
||
|
24
|
24
51436-ME1-671
Piston
|
51436-ME1-671 |
— | ||
|
25
|
25
51437-KAZ-003 Ring, piston |
51437-KAZ-003 |
from US $5.48 |
||
|
26
|
26
51438-MB9-781
Holder,grease
|
51438-MB9-781 |
— | ||
|
27
|
27
51439-MB9-781
Washer,holder
|
51439-MB9-781 |
— | ||
|
28
|
28
51440-MB7-611
Pipe,seat
|
51440-MB7-611 |
— | ||
|
29
|
29
51440-MG1-003
Pipe, seat
|
51440-MG1-003 |
— | ||
|
30
|
30
51441-MC7-003 Rubber, stopper |
51441-MC7-003 |
US $3.78 |
||
|
31
|
31
51442-MC7-003 Boot, piston case |
51442-MC7-003 |
from US $12.99 |
||
|
32
|
32
51444-MC7-505
Washer b, side
|
51444-MC7-505 |
— | ||
|
33
|
33
51445-MC7-003 Holder, boot |
51445-MC7-003 |
from US $9.45 |
||
|
34
|
34
51447-463-003 Circlip (inner) |
51447-463-003 |
from US $7.10 |
||
|
35
|
35
51450-MG1-003
Bolt assy., fr. fork
|
51450-MG1-003 |
— | ||
|
36
|
36
51456-469-013 Valve, air |
51456-469-013 |
US $41.09 |
||
|
37
|
37
51457-MG1-003 Cap, air valve |
51457-MG1-003 |
US $17.54 |
||
|
38
|
38
51490-MB9-782 Seal set, fr. fork |
51490-MB9-782 |
from US $17.68 |
||
|
39
|
39
51496-MC7-670 Mark, fr. fork |
51496-MC7-670 |
from US $3.78 |
||
|
40
|
40
51500-MG1-013
S/abs assy., l. fr.
|
51500-MG1-013 |
— | ||
|
41
|
41
51510-MG1-003
Pipe,l.fr.fork
|
51510-MG1-003 |
— | ||
|
42
|
42
51521-MG1-003
Case, l. (lower)
|
51521-MG1-003 |
— | ||
|
43
|
43
51530-MB0-003
Case,l.piston
|
51530-MB0-003 |
— | ||
|
44
|
44
53240-MB1-050
Stabilizer, fr. fork
Use up to Frame SN DA005516 |
53240-MB1-050 |
— | ||
|
45
|
45
96700-0601817 Bolt, socket (6x18) |
96700-0601817 |
US $0.59 |
||
|
46
|
46
90116-ME1-671
Bolt, socket (8mm)
|
90116-ME1-671 |
— | ||
|
47
|
47
90153-MB0-000
Bolt, socket (8x17)
|
90153-MB0-000 |
— | ||
| replacement | |||||
|
47
|
47
90153-MB0-405
Bolt, socket (8x17)
|
90153-MB0-405 |
— | ||
|
47
|
47
90153-MB0-405
Bolt, socket (8x17)
|
90153-MB0-405 |
— | ||
|
48
|
48
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.37 |
||
|
49
|
49
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
50
|
50
91254-463-003 Dust seal |
91254-463-003 |
from US $21.08 |
||
|
51
|
51
91305-323-000 O-ring, 5.8x1.9 |
91305-323-000 |
from US $2.81 |
||
|
51
|
51
91318-ME5-003 O-ring, 5.6x1.9 (arai) |
91318-ME5-003 |
from US $3.18 |
||
|
52
|
52
91302-MA3-661 O-ring,35.5x2 |
91302-MA3-661 |
from US $3.26 |
||
|
53
|
53
91304-MC7-003 O-ring b (6.8x2.5) |
91304-MC7-003 |
from US $4.14 |
||
|
54
|
54
91311-PH7-003 O-ring13.8X2.4 (NOK) |
91311-PH7-003 |
from US $1.92 |
||
|
55
|
55
91308-MA6-005 O-ring (14.6x3.6) |
91308-MA6-005 |
from US $5.18 |
||
|
56
|
56
91356-463-003 O-ring,29x3.5 |
91356-463-003 |
from US $5.10 |
||
|
57
|
57
91455-MB0-010 Cap (8mm) |
91455-MB0-010 |
from US $1.46 |
||
|
58
|
58
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
59
|
59
93500-050-100-A ScrewPAN, 5X10 |
93500-050-100-A |
from US $0.37 |
||
|
60
|
60
93600-040-100-H Screw,flat,4x10 |
93600-040-100-H |
US $0.37 |
||
|
61
|
61
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
62
|
62
95701-080-500-0 BoltFLANGE, 8X50 |
95701-080-500-0 |
from US $0.81 |
||
|
63
|
63
9621105000 Ball, steel, #5 (5/32) |
9621105000 |
from US $0.15 |
||
