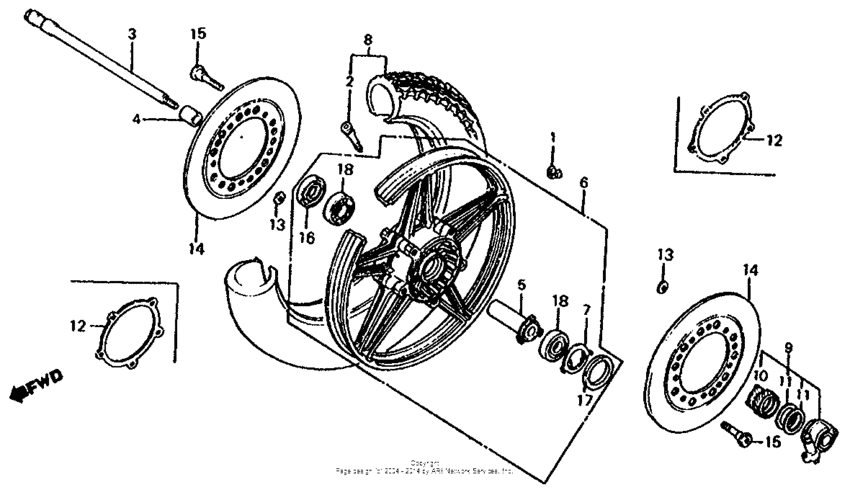

Front wheel Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1000C A
- Sales region
- USA
- Frame
- 1HFSC100*DA000001 - 1HFSC100*DA007620
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42704-MB0-000
Weight (10g)
|
42704-MB0-000 |
— | ||
| replacement | |||||
|
1
|
1
42704-MCF-D60 Weight, balance (10) |
42704-MCF-D60 |
from US $9.03 |
||
|
1
|
1
42705-MB0-000 Weight (20g) |
42705-MB0-000 |
US $14.50 |
||
| replacement | |||||
|
1
|
1
42705-MCF-D60 Weight, balance (20) |
42705-MCF-D60 |
from US $10.95 |
||
|
1
|
1
42706-MB0-000 Weight (30g) |
42706-MB0-000 |
US $17.65 |
||
| replacement | |||||
|
1
|
1
42706-MCF-D60 Weight, balance (30) |
42706-MCF-D60 |
from US $10.95 |
||
|
1
|
1
42706-MCF-D60 Weight, balance (30) |
42706-MCF-D60 |
from US $10.95 |
||
|
2
|
2
42753-425-003 Valve, rim |
42753-425-003 |
from US $13.17 |
||
|
3
|
3
44301-461-770 Axle, fr. wheel |
44301-461-770 |
US $71.81 |
||
|
4
|
4
44311-460-840 Colr, fr. wheel side |
44311-460-840 |
US $14.51 |
||
|
5
|
5
44620-MB0-000 Collar, fr |
44620-MB0-000 |
US $10.58 |
||
|
6
|
6
44650-MG1-305
Wheel comp.,fr.
|
44650-MG1-305 |
— | ||
|
7
|
7
44680-410-000 Retainer, gear box |
44680-410-000 |
from US $4.48 |
||
|
8
|
8
44710-MG8-673
Tire (110/90-18)
|
44710-MG8-673 |
— | ||
|
9
|
9
44800-MB0-013 Gear box assy.,sp |
44800-MB0-013 |
from US $54.63 |
||
|
10
|
10
44806-MB0-003 Gear,speedometer |
44806-MB0-003 |
from US $19.34 |
||
|
11
|
11
44809-402-000 Washer |
44809-402-000 |
from US $2.89 |
||
|
12
|
12
45128-MB1-000
Shim,pamping
Use up to Frame SN DA006401 |
45128-MB1-000 |
— | ||
|
13
|
13
45128-ME2-003 Shim, dampingUse from Frame SN DA006402 |
45128-ME2-003 |
from US $3.03 |
||
|
14
|
14
45251-ME2-000
Disk, fr. brake
|
45251-ME2-000 |
— | ||
|
15
|
15
90105-MB0-010 Bolt,fr.disk,8x33 |
90105-MB0-010 |
US $9.32 |
||
|
16
|
16
91252-MC7-003 Dust seal (22x42x7) |
91252-MC7-003 |
from US $6.22 |
||
|
17
|
17
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $8.73 |
||
|
18
|
18
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
||
