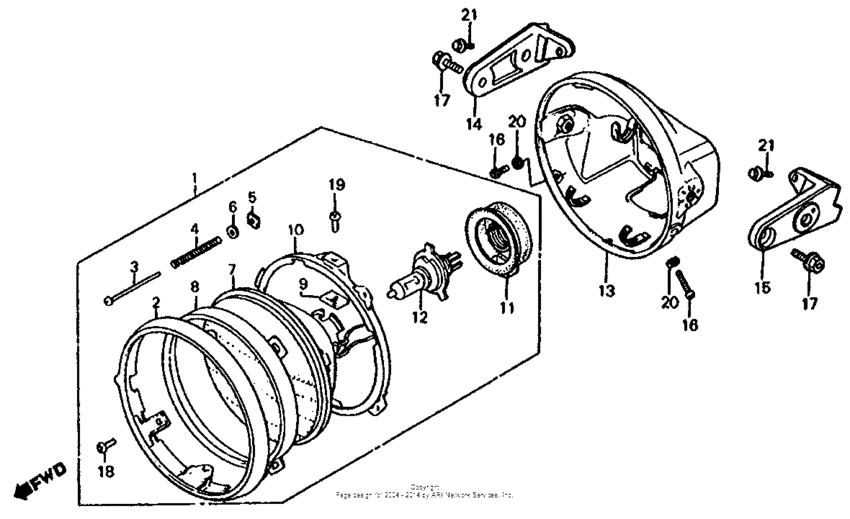

Headlight Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1000C A
- Sales region
- USA
- Frame
- 1HFSC100*DA000001 - 1HFSC100*DA007620
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-431-671
Headlight assy
|
33100-431-671 |
— | ||
|
2
|
2
33101-405-671 Rim, headlight |
33101-405-671 |
from US $81.24 |
||
|
3
|
3
33103-346-670 Screw |
33103-346-670 |
US $10.06 |
||
| replacement | |||||
|
3
|
3
33103-MW3-610 Screw,beam adjust |
33103-MW3-610 |
from US $9.98 |
||
|
4
|
4
33107-300-003 Spring |
33107-300-003 |
from US $3.40 |
||
|
5
|
5
33117-001-023 Nut, headlight beam adjusting |
33117-001-023 |
from US $2.59 |
||
|
6
|
6
33119-371-003 Washer |
33119-371-003 |
from US $2.81 |
||
|
7
|
7
33120-431-671
Unit, headlight.
|
33120-431-671 |
— | ||
|
8
|
8
33121-405-671
Ring, retaining
|
33121-405-671 |
— | ||
|
9
|
9
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
10
|
10
33153-375-671
Ring, setting
|
33153-375-671 |
— | ||
|
11
|
11
33180-422-003 Cover, rubber |
33180-422-003 |
US $19.16 |
||
|
12
|
12
34901-MC7-601AH Bulb (12v60/55w) |
34901-MC7-601AH |
US $38.35 |
||
| replacement | |||||
|
12
|
12
34901-MC7-602 Bulb (12v 60/55w) |
34901-MC7-602 |
from US $45.32 |
||
|
13
|
13
61301-MG1-000
Case,head light
|
61301-MG1-000 |
— | ||
|
14
|
14
61312-MG1-000
Stay,r.headlight
|
61312-MG1-000 |
— | ||
|
15
|
15
61313-MG1-000
Stay, l. headlight
|
61313-MG1-000 |
— | ||
|
16
|
16
90001-MG9-670 Screw (5x12) |
90001-MG9-670 |
from US $5.48 |
||
|
17
|
17
90106-MG1-000
Bolt, socket (10x20)
|
90106-MG1-000 |
— | ||
|
18
|
18
93500-030080H Screw, pan, 3x8 |
93500-030080H |
from US $0.37 |
||
|
19
|
19
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
20
|
20
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
21
|
21
95701-0802200 Bolt, flange, 8x22 |
95701-0802200 |
from US $0.81 |
||
