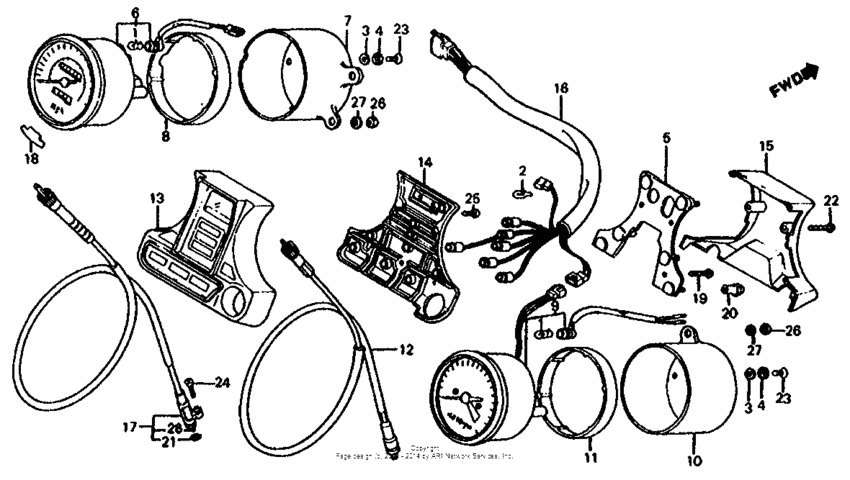

Instruments Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1000C A
- Sales region
- USA
- Frame
- 1HFSC100*DA000001 - 1HFSC100*DA007620
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37237-SA5-003 Bulb14V 3.4W) (NS |
37237-SA5-003 |
from US $2.15 |
||
|
2
|
2
34908-MB0-003 Bulb, wedge base (12v 3w) |
34908-MB0-003 |
from US $2.22 |
||
| replacement | |||||
|
2
|
2
34275-S2X-003 Bulb 12V 2.3W Wed |
34275-S2X-003 |
from US $2.22 |
||
|
3
|
3
37101-MB1-008 Rubber |
37101-MB1-008 |
from US $4.14 |
||
|
4
|
4
37102-MB1-008 Washer |
37102-MB1-008 |
US $4.18 |
||
|
5
|
5
37120-MB1-008
Bracket,meter
|
37120-MB1-008 |
— | ||
|
6
|
6
37200-MG1-672
Speedometer assy
Use up to Frame SN DA000910 |
37200-MG1-672 |
— | ||
|
7
|
7
37202-MB1-008
Cover,spdmt.
|
37202-MB1-008 |
— | ||
|
8
|
8
37204-MB1-008
Cush,speedometer
|
37204-MB1-008 |
— | ||
|
9
|
9
37250-MG1-672
Tachometer assy.
Use up to Frame SN DA000910 |
37250-MG1-672 |
— | ||
|
10
|
10
37252-MG1-671
Cover, tachometer
|
37252-MG1-671 |
— | ||
|
11
|
11
37254-MB1-008
Cush,tachometer
|
37254-MB1-008 |
— | ||
|
12
|
12
37260-KB7-010 Cable assy,tacho. |
37260-KB7-010 |
US $24.89 |
||
|
13
|
13
37610-MG1-671
Case,pilot upper
|
37610-MG1-671 |
— | ||
|
14
|
14
37615-MG1-671
Case, pilot (lower)
Use up to Frame SN DA004094 |
37615-MG1-671 |
— | ||
|
14
|
14
37615-MG1-672
Case, pilot (lower)
Use from Frame SN DA004095 |
37615-MG1-672 |
— | ||
|
15
|
15
37618-MB1-008
Cover comp.,meter
|
37618-MB1-008 |
— | ||
|
16
|
16
37619-MG1-671
Wire, pilot
|
37619-MG1-671 |
— | ||
|
17
|
17
44830-MG1-000
Cable speedometer
|
44830-MG1-000 |
— | ||
|
18
|
18
87523-410-790
Label,brk.caution
|
87523-410-790 |
— | ||
|
19
|
19
90141-MB1-000
Screw a,air/c
|
90141-MB1-000 |
— | ||
|
20
|
20
90303-MB1-000
Nut,meter setting
|
90303-MB1-000 |
— | ||
|
21
|
21
91306-PJ4-000 O-ring6.8X1.9 |
91306-PJ4-000 |
from US $2.07 |
||
|
22
|
22
93500-040200G Screw, pan, 4x20 |
93500-040200G |
from US $0.37 |
||
|
23
|
23
93700-040-080-B ScrewOVAL, 4X8 |
93700-040-080-B |
from US $0.52 |
||
|
24
|
24
93700-050200G Screw, oval (5x20) |
93700-050200G |
from US $0.37 |
||
|
25
|
25
93903-24520 ScrewTAPPING, 4X20 |
93903-24520 |
from US $0.37 |
||
|
26
|
26
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
27
|
27
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
28
|
28
44831-MG1-300
Cable,spedmt.in.
|
44831-MG1-300 |
— | ||
