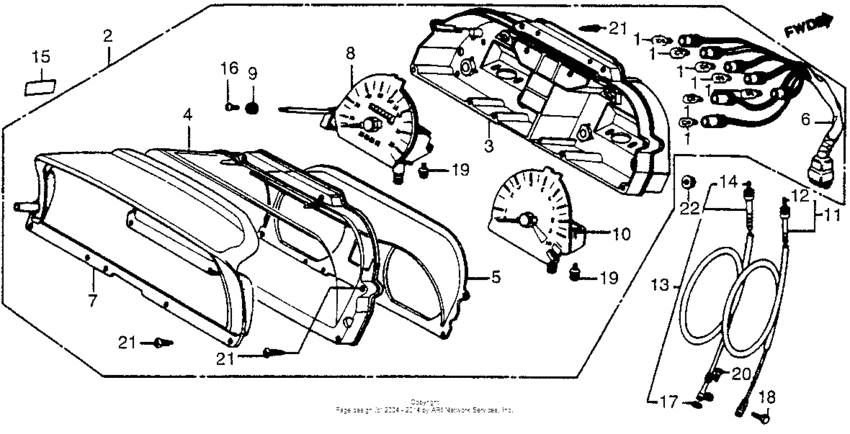

Instruments Diagram Honda CB1000 CB1000
- Year
- 1983
- Model code
- CB1100F A
- Sales region
- USA
- Frame
- JH2SC110*DM000001 -
- Engine Capacity
- 1100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37237-SA5-003 Bulb14V 3.4W) (NS |
37237-SA5-003 |
from US $2.15 |
||
|
2
|
2
37100-MG5-671
Meter, combination
|
37100-MG5-671 |
— | ||
|
3
|
3
37101-MG5-008
Case assy.,meter
|
37101-MG5-008 |
— | ||
|
4
|
4
37102-MC5-008
Glass assy
|
37102-MC5-008 |
— | ||
|
5
|
5
37103-MG5-008
Plate, reflecting
|
37103-MG5-008 |
— | ||
|
6
|
6
37105-MG5-008
Socket
|
37105-MG5-008 |
— | ||
|
7
|
7
37110-MC5-008
Cover meter upper
|
37110-MC5-008 |
— | ||
|
8
|
8
37200-MG5-671
Speedometer assy
|
37200-MG5-671 |
— | ||
|
9
|
9
37204-MC7-612
Knob, trip meter
|
37204-MC7-612 |
— | ||
|
10
|
10
37250-MG5-671
Tachometer assy.
|
37250-MG5-671 |
— | ||
|
11
|
11
37260-MF8-000
Cable assy,tacho
|
37260-MF8-000 |
— | ||
|
12
|
12
37261-MG5-670
Cable (inner)
|
37261-MG5-670 |
— | ||
|
13
|
13
44830-MB9-780
Cable assy,spdmt
|
44830-MB9-780 |
— | ||
|
14
|
14
44831-MC1-770
Cable,spedmt.in.
|
44831-MC1-770 |
— | ||
|
15
|
15
87523-102-720
Label
|
87523-102-720 |
— | ||
|
16
|
16
90600-MC7-612
Screw, flat (2.3x8)
|
90600-MC7-612 |
— | ||
|
17
|
17
91306-PJ4-000 O-ring6.8X1.9 |
91306-PJ4-000 |
from US $2.07 |
||
|
18
|
18
92101-05020-0A Bolt, hex., 5x20 |
92101-05020-0A |
from US $0.38 |
||
|
19
|
19
93500-040-060-H ScrewPAN, 4X6 |
93500-040-060-H |
from US $0.13 |
||
|
20
|
20
93700-050200G Screw, oval (5x20) |
93700-050200G |
from US $0.37 |
||
|
21
|
21
93901-34410 ScrewTAPPING, 4X16 |
93901-34410 |
from US $0.37 |
||
|
22
|
22
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
