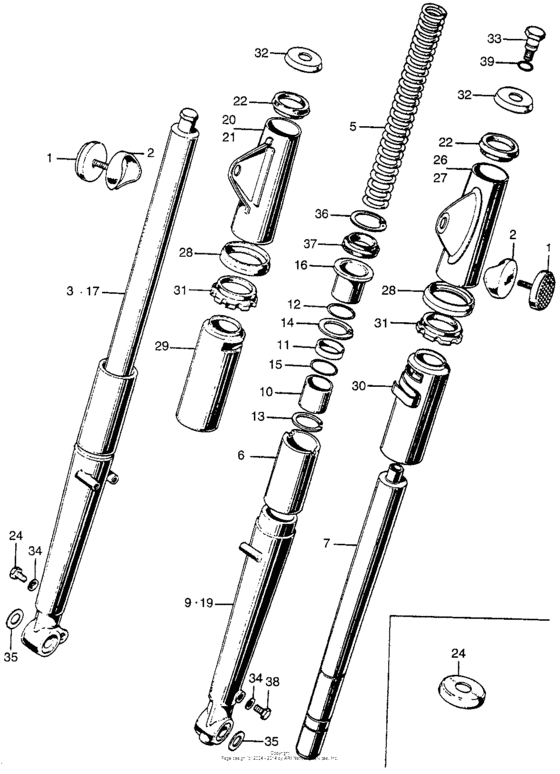

Cb175 front fork Diagram Honda CB175
- Model code
- CB175K3 A
- Sales region
- USA
- Frame
- CB1754000001 -
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-315-000 Reflexreflector |
33741-315-000 |
from US $27.06 |
||
|
2
|
2
33743-306-670
Base,reflector
|
33743-306-670 |
— | ||
|
3
|
3
51400-235-000
Fork assy., r. fr.
Use up to Frame SN 4001622 |
51400-235-000 |
— | ||
|
4
|
4
51400-306-000
Fork assy., r. fr.
Use from Frame SN 4001623 |
51400-306-000 |
— | ||
|
5
|
5
51401-216-000
Spring, fr. fork
|
51401-216-000 |
— | ||
|
6
|
6
51402-240-000
Cover,bottom case
|
51402-240-000 |
— | ||
|
7
|
7
51410-240-000
Pipe, fr. fork
Use up to Frame SN 4001622 |
51410-240-000 |
— | ||
|
8
|
8
51410-304-000
Pipe front fork
Use from Frame SN 4001623 |
51410-304-000 |
— | ||
|
9
|
9
51420-240-000
Case, r. fr. fork
|
51420-240-000 |
— | ||
|
10
|
10
51442-216-000
Piston,front fork
|
51442-216-000 |
— | ||
|
11
|
11
51443-222-000
Valve,fr.damper
|
51443-222-000 |
— | ||
|
12
|
12
51444-222-000
Ring
|
51444-222-000 |
— | ||
|
13
|
13
51445-216-000
Ring, fr.
|
51445-216-000 |
— | ||
|
14
|
14
51446-222-000
Ring
|
51446-222-000 |
— | ||
|
15
|
15
51447-216-000
Ring, fr.
|
51447-216-000 |
— | ||
|
16
|
16
51451-216-010
Guide, fork pipe
|
51451-216-010 |
— | ||
|
17
|
17
51500-235-000
Fork Assy., L. Fr.
Use up to Frame SN 4001622 |
51500-235-000 |
— | ||
|
18
|
18
51500-306-000
Fork Assy., L. Fr.
|
51500-306-000 |
— | ||
|
19
|
19
51520-235-000
Case,l.bottom
|
51520-235-000 |
— | ||
|
20
|
20
51602-306-672-Z
Cover, r. fr. fork
|
51602-306-672-Z |
— | ||
|
22
|
22
51603-304-010
Cushion, fr. (upper)
|
51603-304-010 |
— | ||
|
23
|
23
51603-306-000
Cushion, fr. (upper)
|
51603-306-000 |
— | ||
|
24
|
24
51623-235-670
Cap,fork,up.cover
|
51623-235-670 |
— | ||
|
26
|
26
51606-306-672-Z
Cover, l. fr. fork
|
51606-306-672-Z |
— | ||
|
28
|
28
51608-235-000
Rib,front fork
|
51608-235-000 |
— | ||
|
29
|
29
51611-240-000-Z
Cover, r. fr. fork
|
51611-240-000-Z |
— | ||
|
30
|
30
51612-240-000-Z
Cover, l. fr. fork
|
51612-240-000-Z |
— | ||
|
31
|
31
51622-216-670 Cushion, fr. fork |
51622-216-670 |
US $5.48 |
||
|
32
|
32
51623-235-670
Cap,fork,up.cover
|
51623-235-670 |
— | ||
|
33
|
33
90123-273-000
Bolt, fr. fork
|
90123-273-000 |
— | ||
|
34
|
34
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.37 |
||
|
35
|
35
90557-230-000 Washer (15.2x25) |
90557-230-000 |
from US $3.03 |
||
|
36
|
36
94536-41120
Clip,intl.,41mm
|
94536-41120 |
— | ||
|
37
|
37
91255-464-003 Oil seal,31x41x11 |
91255-464-003 |
from US $7.99 |
||
|
38
|
38
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
38
|
38
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
38
|
38
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
39
|
39
9460810000 O-ring (8.4x2.4) |
9460810000 |
from US $2.09 |
||
| replacement | |||||
|
39
|
39
91316-MJ8-003 O-ring (8.4x2.4) |
91316-MJ8-003 |
from US $2.52 |
||
