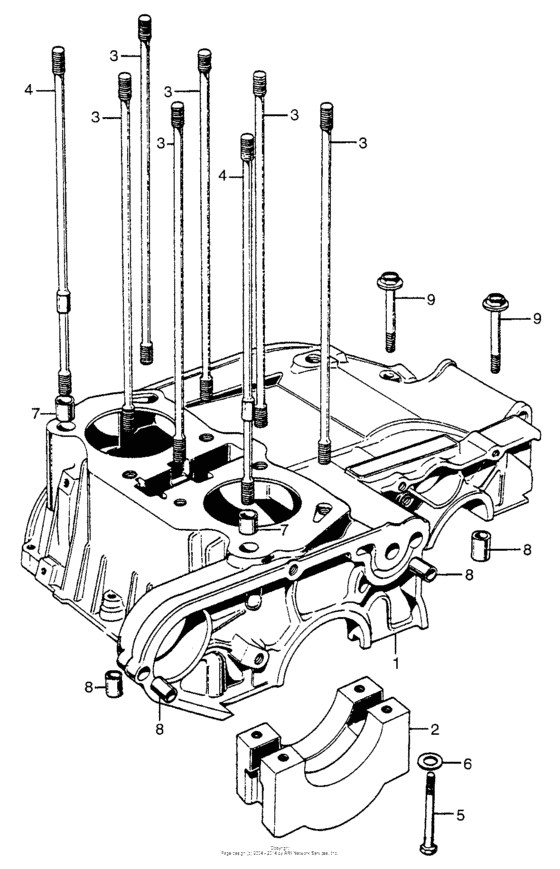

Upper crankcase Diagram Honda CB350
- Model code
- CB350G A
- Sales region
- USA
- Frame
- CB3505000001 -
- Engine Capacity
- 350
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-287-120
Crankcase (upper)
|
11100-287-120 |
— | ||
|
2
|
2
11202-286-000
Holder
|
11202-286-000 |
— | ||
|
3
|
3
90033-286-020
Bolt,cylinderstud
|
90033-286-020 |
— | ||
|
4
|
4
90034-286-020
Bolt,a.cylinder
|
90034-286-020 |
— | ||
|
5
|
5
90083-292-000
Bolt,hex 8x71
|
90083-292-000 |
— | ||
|
6
|
6
90485-035-000 Washer, 14m/m |
90485-035-000 |
from US $2.09 |
||
|
7
|
7
91356-286-000
Pin,knock
|
91356-286-000 |
— | ||
|
8
|
8
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
9
|
9
95701-0607000 Bolt, flange, 6x70 |
95701-0607000 |
from US $0.81 |
