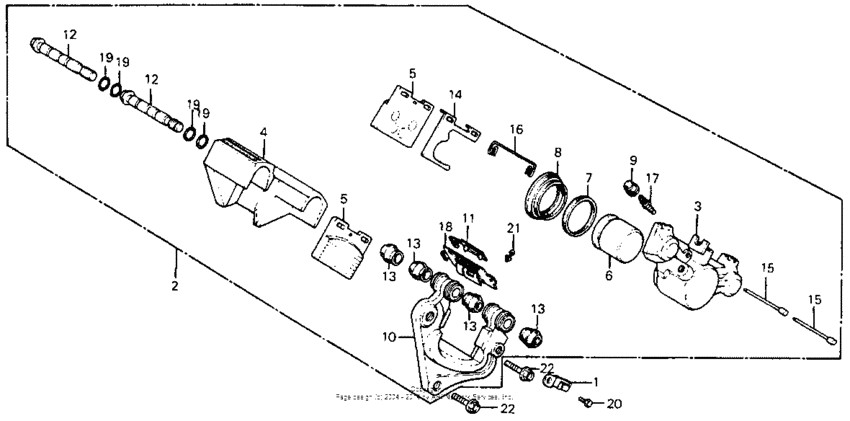

Front brake caliper Diagram Honda CB400
- Year
- 1978
- Model code
- CB400A A
- Sales region
- USA
- Frame
- CB400A2000015 -
- Engine Capacity
- 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
45012-413-305
Pad,set.
|
45012-413-305 |
— | ||
|
1
|
1
32906-049-000
Clip
|
32906-049-000 |
— | ||
|
2
|
2
45100-413-405
Caliper.assy.fr.l
|
45100-413-405 |
— | ||
|
3
|
3
45101-413-751
Caliper a
|
45101-413-751 |
— | ||
|
4
|
4
45102-413-003
Caliper b
|
45102-413-003 |
— | ||
|
5
|
5
45012-413-305
Pad,set.
|
45012-413-305 |
— | ||
|
6
|
6
45107-413-003 Piston |
45107-413-003 |
US $40.70 |
||
|
7
|
7
45108-300-003 Seal piston |
45108-300-003 |
from US $10.36 |
||
|
8
|
8
45109-413-003 Boot,piston |
45109-413-003 |
US $14.28 |
||
|
9
|
9
45110-300-003 Cap bleed screw |
45110-300-003 |
from US $3.92 |
||
|
10
|
10
45110-413-003
Carrier
|
45110-413-003 |
— | ||
|
11
|
11
45119-413-003
Cover,indicator
|
45119-413-003 |
— | ||
|
12
|
12
45131-413-003
Shaft,caliper
|
45131-413-003 |
— | ||
|
13
|
13
45133-413-003 Boot,caliper |
45133-413-003 |
US $6.51 |
||
|
14
|
14
45214-413-003
Shim
|
45214-413-003 |
— | ||
|
15
|
15
45215-413-003
Pin,pad retaining
|
45215-413-003 |
— | ||
|
16
|
16
45223-413-003
Clip,pad pin
|
45223-413-003 |
— | ||
|
17
|
17
45224-413-003
Valve, bleeder
|
45224-413-003 |
— | ||
|
18
|
18
45241-413-003
Cover,caliper
|
45241-413-003 |
— | ||
|
19
|
19
91303-413-003 O-ring,7.3x1.4 |
91303-413-003 |
US $3.48 |
||
|
20
|
20
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
21
|
21
93892-050-100-8 Screw-washer5X10 |
93892-050-100-8 |
from US $0.44 |
||
|
22
|
22
95801-100-320-0 Bolt,flange,10x32 |
95801-100-320-0 |
from US $0.81 |
