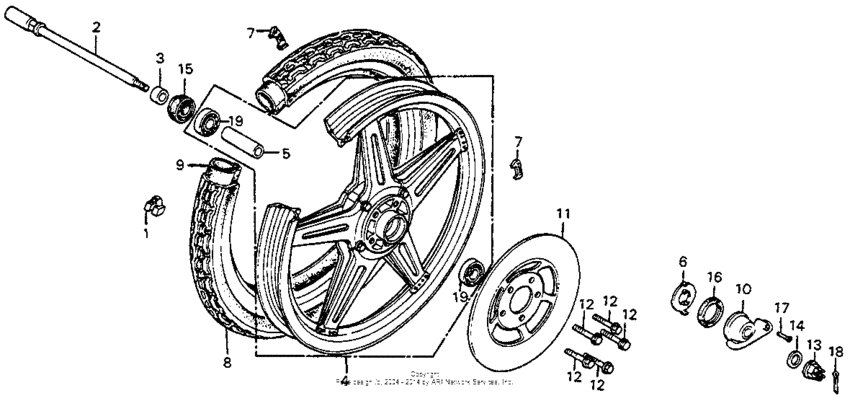

Front wheel Diagram Honda CB400
- Year
- 1978
- Model code
- CB400A A
- Sales region
- USA
- Frame
- CB400A2000015 -
- Engine Capacity
- 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42705-410-000
Balancer (20g)
|
42705-410-000 |
— | ||
|
1
|
1
42706-410-000 Ballance (30g) |
42706-410-000 |
US $13.43 |
||
|
2
|
2
44301-413-000
Axle.fr.wheel
|
44301-413-000 |
— | ||
|
3
|
3
44311-413-000
Collar.fr.wheel
|
44311-413-000 |
— | ||
|
4
|
4
44610-413-772
Wheel comp.,fr.
|
44610-413-772 |
— | ||
|
5
|
5
44620-286-000
Collar,distance
|
44620-286-000 |
— | ||
|
6
|
6
44680-410-000 Retainer, gear box |
44680-410-000 |
from US $4.48 |
||
|
7
|
7
44703-413-780
Mark,fr.spoke pl.
|
44703-413-780 |
— | ||
|
8
|
8
S4471-141-3FR
Tire fr
|
S4471-141-3FR |
— | ||
|
8
|
8
44711-413-672
Tire, fr. (3.60s-19)
|
44711-413-672 |
— | ||
|
9
|
9
44712-110-003
Tube,fr.wheel
|
44712-110-003 |
— | ||
|
10
|
10
44800-447-013 Box,spdmt gear |
44800-447-013 |
US $105.60 |
||
|
11
|
11
45251-410-305
Disk,fr brake
|
45251-410-305 |
— | ||
|
12
|
12
90112-413-000 Bolt, ubs, 8x33 |
90112-413-000 |
from US $4.59 |
||
|
13
|
13
90305-401-680 Nut, axle, 14mm |
90305-401-680 |
from US $11.54 |
||
|
14
|
14
90557-230-000 Washer (15.2x25) |
90557-230-000 |
from US $3.03 |
||
|
15
|
15
91252-230-003 Oil seal (26x42x7) |
91252-230-003 |
from US $9.92 |
||
|
16
|
16
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $8.73 |
||
|
17
|
17
93700-050160A Screw, oval (5x16) |
93700-050160A |
from US $0.37 |
||
|
18
|
18
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
18
|
18
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
18
|
18
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
19
|
19
96120-630-201-0 B/brg rad n/com |
96120-630-201-0 |
US $6.81 |
||
