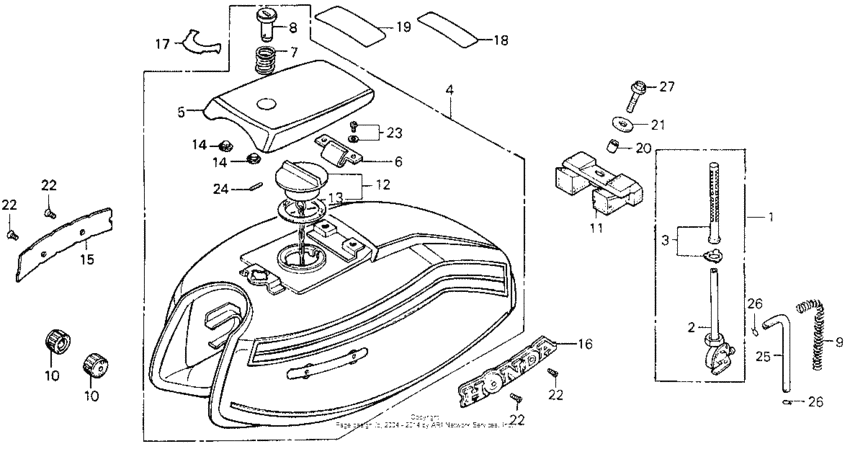

Fuel tank Diagram Honda CB400
- Year
- 1978
- Model code
- CB400A A
- Sales region
- USA
- Frame
- CB400A2000015 -
- Engine Capacity
- 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-385-703 Cock assy.,fuelUse up to Frame SN 2013415 |
16950-385-703 |
from US $46.78 |
||
|
2
|
2
16951-385-703
Body comp.,cock
Use up to Frame SN 2013415 |
16951-385-703 |
— | ||
|
3
|
3
16952-388-015 Screew set,strn.Use up to Frame SN 2013415 |
16952-388-015 |
US $47.18 |
||
|
4
|
4
17500-413-771ZA
Tank fuel *r-23*
Use up to Frame SN 2012905 |
17500-413-771ZA |
— | ||
|
4
|
4
17500-413-771ZB
Tank, fuel *pb3cc*
Use up to Frame SN 2012905 |
17500-413-771ZB |
— | ||
|
5
|
5
17511-413-770ZA
Lid, fuel tank *r23*
|
17511-413-770ZA |
— | ||
|
5
|
5
17511-413-770ZB
Lid,tank*pb-3c-c*
|
17511-413-770ZB |
— | ||
|
6
|
6
17512-413-000
Spg.a,tank lid
|
17512-413-000 |
— | ||
|
7
|
7
17516-383-670
Spring b,tank lid
|
17516-383-670 |
— | ||
|
8
|
8
17517-413-000
Pin,fuel tank lid
|
17517-413-000 |
— | ||
|
9
|
9
17532-404-000 Spring, fuel tube cover |
17532-404-000 |
US $11.99 |
||
|
10
|
10
17611-KE8-000 Rubber, fr |
17611-KE8-000 |
from US $6.70 |
||
|
11
|
11
17613-413-000 Cush,fuel tank rr |
17613-413-000 |
from US $12.43 |
||
|
12
|
12
17620-399-010
Cap comp.,fuel ta
|
17620-399-010 |
— | ||
|
13
|
13
17631-329-003
Packing, fuel filler cap (39x58x3)
|
17631-329-003 |
— | ||
| replacement | |||||
|
13
|
13
17631-329-013
PACKING, FUEL FILLER
|
17631-329-013 |
— | ||
|
14
|
14
40514-333-000 Plug, chain guard |
40514-333-000 |
from US $2.66 |
||
|
15
|
15
87121-413-770 Emblem,r.tank |
87121-413-770 |
US $38.71 |
||
|
16
|
16
87122-413-770
Emblem,l.tank
|
87122-413-770 |
— | ||
|
17
|
17
87132-388-670
Mark,fuel tank
|
87132-388-670 |
— | ||
|
18
|
18
87509-393-670-A
Mark,riding
|
87509-393-670-A |
— | ||
|
18
|
18
87509-393-670-B
Mark *nh1*
|
87509-393-670-B |
— | ||
|
19
|
19
87560-375-680ZF Mark (type-w) Remember (Clear-white) |
87560-375-680ZF |
from US $5.77 |
||
|
19
|
19
87560-375-680ZE Mark (type-b) Remember (Black) |
87560-375-680ZE |
US $4.59 |
||
|
20
|
20
90324-300-000 Collar (8mm) |
90324-300-000 |
from US $4.59 |
||
|
21
|
21
90534-011-000 Washer, 8.3mm |
90534-011-000 |
from US $2.22 |
||
|
22
|
22
93700-030-060-G Screw,oval,3x6 |
93700-030-060-G |
from US $0.37 |
||
|
23
|
23
93891-050-060-8 Screw-washer,5x6 |
93891-050-060-8 |
US $0.44 |
||
|
24
|
24
94305-20183 Pin,spring,2x18 |
94305-20183 |
US $0.74 |
||
|
25
|
25
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $24.48 |
||
|
26
|
26
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
27
|
27
95701-080-280-8 BoltFLANGE, 8X28 |
95701-080-280-8 |
from US $0.74 |
||
