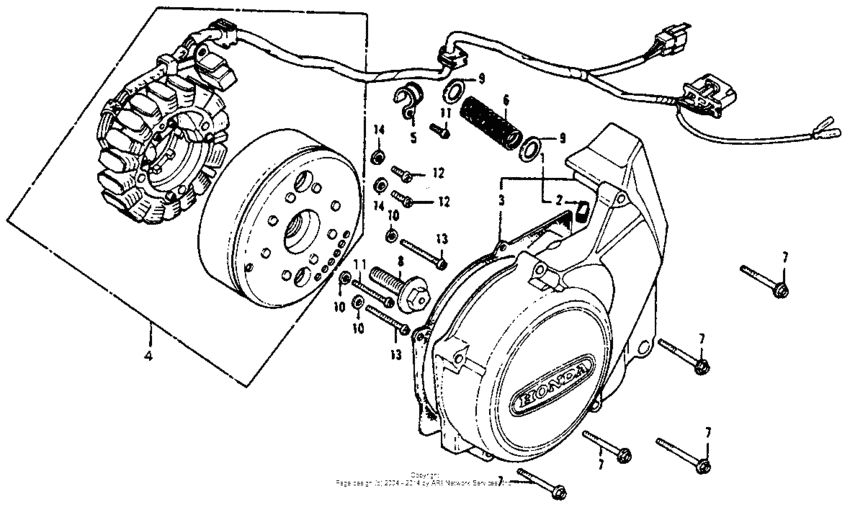

Left Crankcase Cover Diagram Honda CB400
- Year
- 1978
- Model code
- CB400A A
- Sales region
- USA
- Frame
- CB400A2000015 -
- Engine Capacity
- 400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11360-417-671
Cover, l. crankcase
|
11360-417-671 |
— | ||
|
2
|
2
11371-413-000
Rubber, l
|
11371-413-000 |
— | ||
|
3
|
3
11492-413-306 Gasket, l |
11492-413-306 |
US $16.18 |
||
|
4
|
4
31100-417-014
Generator, a.c.
|
31100-417-014 |
— | ||
|
5
|
5
32921-039-000 Clip,dynamo cord |
32921-039-000 |
from US $5.33 |
||
|
6
|
6
45454-360-010 Spring, fr |
45454-360-010 |
from US $4.88 |
||
|
7
|
7
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
8
|
8
90023-329-000 Bolt,flange,12x40 |
90023-329-000 |
US $12.03 |
||
|
9
|
9
90457-333-000
Washer,12mm
|
90457-333-000 |
— | ||
|
10
|
10
90533-292-303
Washer
|
90533-292-303 |
— | ||
|
11
|
11
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
12
|
12
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
13
|
13
93500-060400A Screw, pan (6x40) |
93500-060400A |
from US $0.52 |
||
|
14
|
14
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
