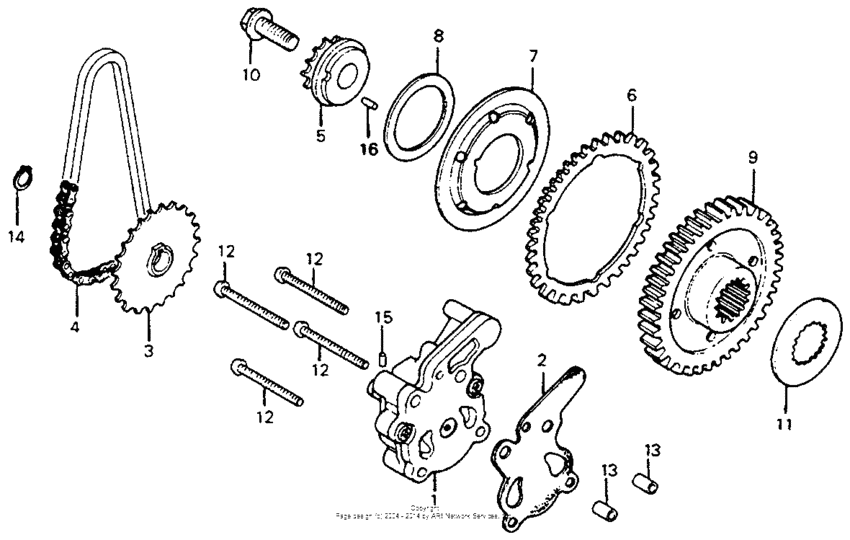

Oil pump Diagram Honda CB400
- Year
- 1978
- Model code
- CB400A A
- Sales region
- USA
- Frame
- CB400A2000015 -
- Engine Capacity
- 400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-417-010
Pump assy., oil
|
15100-417-010 |
— | ||
|
2
|
2
15109-417-000
Packing,oil pump
Use up to Engine SN 2004610 |
15109-417-000 |
— | ||
|
3
|
3
15110-417-010
Sprocket, oil pump
|
15110-417-010 |
— | ||
|
4
|
4
15141-KJ9-003 Chain, oil pump |
15141-KJ9-003 |
from US $14.14 |
||
|
5
|
5
15151-417-010
Sprkt,oil pump.dr
|
15151-417-010 |
— | ||
|
6
|
6
23113-417-000
Sub gear,prim dri
|
23113-417-000 |
— | ||
|
7
|
7
23114-417-010
Plate, sub-gear
|
23114-417-010 |
— | ||
|
8
|
8
23115-417-010
Spg. pri.sub gear
|
23115-417-010 |
— | ||
|
9
|
9
23121-417-010 Gear, primary drive |
23121-417-010 |
US $167.56 |
||
|
10
|
10
90019-413-000 Bolt, flange, 12x25 |
90019-413-000 |
from US $7.25 |
||
|
11
|
11
90407-413-010
Washer,spline
|
90407-413-010 |
— | ||
|
12
|
12
93500-060450A Screw, pan, 6x45 |
93500-060450A |
from US $0.59 |
||
|
13
|
13
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
14
|
14
94510-11000 CirclipEXTERNAL, 11MM |
94510-11000 |
from US $0.44 |
||
|
15
|
15
9622040100 Roller, 4x10 |
9622040100 |
from US $0.22 |
||
|
16
|
16
96220-50100 Roller5X10 |
96220-50100 |
from US $0.22 |
