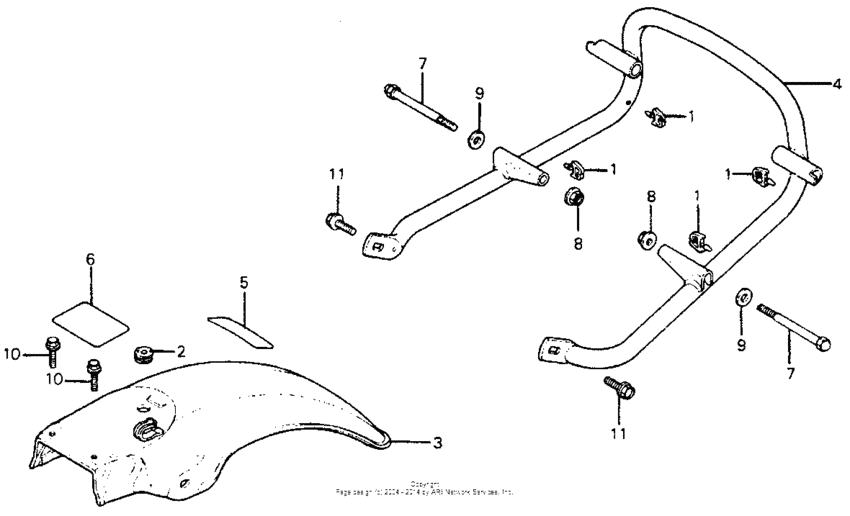

Rear fender Diagram Honda CB400
- Year
- 1978
- Model code
- CB400A A
- Sales region
- USA
- Frame
- CB400A2000015 -
- Engine Capacity
- 400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32805-413-000 Clip, winker cord |
32805-413-000 |
from US $2.22 |
||
|
2
|
2
32983-028-000 Grommet, wire harness |
32983-028-000 |
from US $1.92 |
||
|
3
|
3
80100-413-000
Fender comp.,rr.
|
80100-413-000 |
— | ||
|
4
|
4
84101-413-000
Bumper,rr.
|
84101-413-000 |
— | ||
|
5
|
5
87505-417-670
Mark,tire caution
|
87505-417-670 |
— | ||
|
6
|
6
87512-387-770
Mark caution
|
87512-387-770 |
— | ||
|
7
|
7
92500-08080-0B Bolt, cap, 8x80 |
92500-08080-0B |
US $2.29 |
||
|
8
|
8
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
9
|
9
9410208200 Washer, flat (8mm) |
9410208200 |
from US $0.44 |
||
|
10
|
10
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
||
|
11
|
11
95700-0801600 Bolt, flange, 8x16 |
95700-0801600 |
US $1.80 |
||
| replacement | |||||
|
11
|
11
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.59 |
||
|
11
|
11
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.59 |
||
