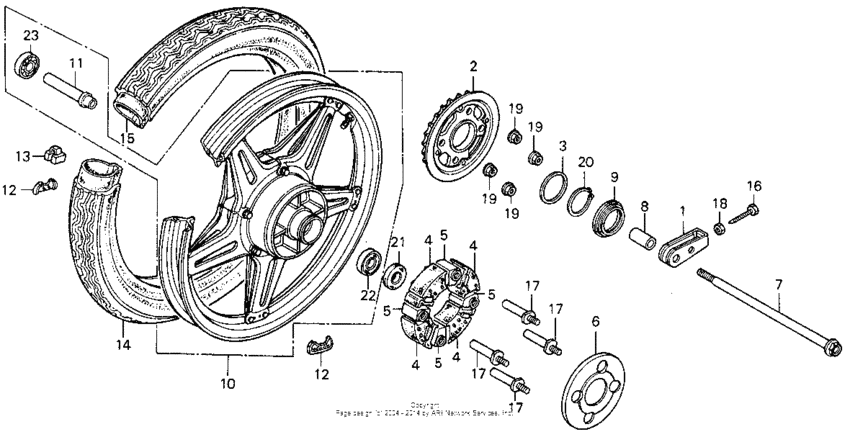

Rear wheel Diagram Honda CB400
- Year
- 1978
- Model code
- CB400A A
- Sales region
- USA
- Frame
- CB400A2000015 -
- Engine Capacity
- 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40543-471-000 Adj.,drive chain |
40543-471-000 |
US $13.02 |
||
|
2
|
2
41200-413-506
Sprocket comp. (37t)
|
41200-413-506 |
— | ||
|
3
|
3
41204-413-780
Washer,80x65
|
41204-413-780 |
— | ||
|
4
|
4
41241-413-781 Rub,rr.wheel dpr |
41241-413-781 |
US $15.78 |
||
|
5
|
5
41242-413-780 Collar,rr.damper |
41242-413-780 |
from US $9.03 |
||
|
6
|
6
41265-413-780
Cover,damper
|
41265-413-780 |
— | ||
|
7
|
7
42301-413-000
Axle,rr.wheel
|
42301-413-000 |
— | ||
|
8
|
8
42311-413-000
Collar,wheel side
|
42311-413-000 |
— | ||
|
9
|
9
42604-413-780 Cover,sprkt.dust |
42604-413-780 |
US $11.54 |
||
|
10
|
10
42650-414-710
Wheel comp.,rr.
|
42650-414-710 |
— | ||
|
11
|
11
42624-413-000
Collar,axle dist.
|
42624-413-000 |
— | ||
|
12
|
12
42703-413-780
Mark,rr.spoke pl.
|
42703-413-780 |
— | ||
|
13
|
13
42705-410-000
Balancer (20g)
|
42705-410-000 |
— | ||
|
13
|
13
42706-410-000 Ballance (30g) |
42706-410-000 |
US $13.43 |
||
|
14
|
14
42711-413-671
Tire, rr. (4.10s-18)
|
42711-413-671 |
— | ||
|
14
|
14
42711-413-672
Tire, rr. (4.10s-18)
|
42711-413-672 |
— | ||
|
15
|
15
42712-KC6-005
Tube (275/300-18)
|
42712-KC6-005 |
— | ||
|
15
|
15
42712-446-631
Tube,tire
|
42712-446-631 |
— | ||
|
16
|
16
90119-413-000 Bolt,chain adjust |
90119-413-000 |
from US $4.14 |
||
|
17
|
17
90128-KE5-000 Bolt |
90128-KE5-000 |
US $4.74 |
||
|
18
|
18
90307-283-000 Nut, chain |
90307-283-000 |
from US $3.18 |
||
|
19
|
19
90308-357-000 Nut, hex. (10mm) |
90308-357-000 |
from US $4.59 |
||
|
20
|
20
90665-329-000 Cir-clip,65mm |
90665-329-000 |
US $9.32 |
||
|
21
|
21
91253-413-003
Dust seal,30x55x7
|
91253-413-003 |
— | ||
|
22
|
22
96120-630-401-0 B/brg rad n/com |
96120-630-401-0 |
from US $9.92 |
||
|
23
|
23
96140-630-301-0 Bearing (6303u) !!!(NA) |
96140-630-301-0 |
from US $9.18 |
