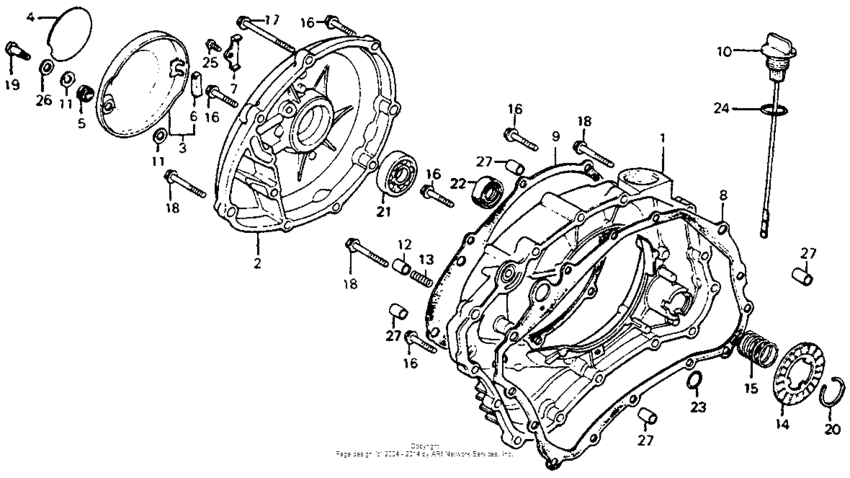

Right crankcase cover + torque converter case Diagram Honda CB400
- Year
- 1978
- Model code
- CB400A A
- Sales region
- USA
- Frame
- CB400A2000015 -
- Engine Capacity
- 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11331-417-000
Cover, r. crankcase
|
11331-417-000 |
— | ||
|
2
|
2
11340-417-000
Case
|
11340-417-000 |
— | ||
|
3
|
3
11353-417-000
Protector, case
|
11353-417-000 |
— | ||
|
4
|
4
11354-417-000
Mark, protector
|
11354-417-000 |
— | ||
|
5
|
5
11355-417-000
Insulator, protector
|
11355-417-000 |
— | ||
|
6
|
6
11356-417-300
Rubber, stay
|
11356-417-300 |
— | ||
|
7
|
7
11357-417-000
Plate
|
11357-417-000 |
— | ||
|
8
|
8
11393-417-306
Gasket, r. cover
|
11393-417-306 |
— | ||
|
9
|
9
11394-417-306
Gasket
|
11394-417-306 |
— | ||
|
10
|
10
15650-417-000
Gauge,oil level
|
15650-417-000 |
— | ||
|
11
|
11
18292-167-890 Packing, protector |
18292-167-890 |
from US $2.98 |
||
|
12
|
12
27611-393-000
Vlv,t.c fluid
|
27611-393-000 |
— | ||
|
13
|
13
27621-393-000
Spg,t.c fluid
|
27621-393-000 |
— | ||
|
14
|
14
28241-417-000
Disk,kickfriction
|
28241-417-000 |
— | ||
|
15
|
15
28242-417-000
Sp,friction dampr
|
28242-417-000 |
— | ||
|
16
|
16
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
17
|
17
96001-0608007 Bolt, flange (6x80) |
96001-0608007 |
from US $0.89 |
||
|
17
|
17
96001-0608000 Bolt, flange (6x80) |
96001-0608000 |
from US $0.89 |
||
|
18
|
18
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
19
|
19
90116-GF8-000 Screw, l |
90116-GF8-000 |
from US $5.18 |
||
|
20
|
20
90603-417-000
Cir clip, 30mm
|
90603-417-000 |
— | ||
|
21
|
21
91008-374-003 Bearing (16005) |
91008-374-003 |
from US $14.21 |
||
|
22
|
22
91204-286-003 Oil seal (18x29x7) |
91204-286-003 |
from US $4.59 |
||
|
23
|
23
91301-706-000
O-ring
|
91301-706-000 |
— | ||
|
24
|
24
91354-371-000 O-ring (23x2) |
91354-371-000 |
from US $4.24 |
||
|
25
|
25
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
26
|
26
9410106200 Washer, plain, 6mm |
9410106200 |
from US $0.44 |
||
|
27
|
27
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
