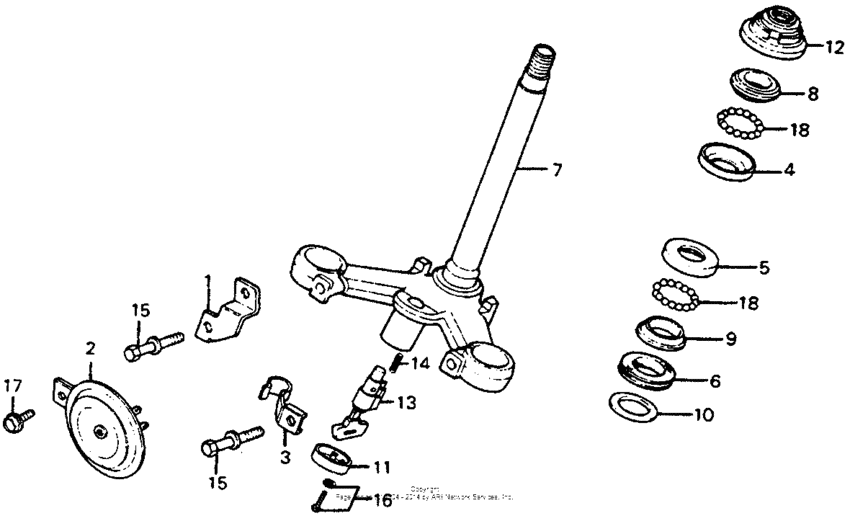

Steering stem + horn Diagram Honda CB400
- Year
- 1978
- Model code
- CB400A A
- Sales region
- USA
- Frame
- CB400A2000015 -
- Engine Capacity
- 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38102-413-000
Stay horn
|
38102-413-000 |
— | ||
|
2
|
2
38110-KY0-621
Horn
|
38110-KY0-621 |
— | ||
|
3
|
3
45418-413-000
Cramp b,brk.hose
|
45418-413-000 |
— | ||
|
4
|
4
50301-268-010 Race, steering ball |
50301-268-010 |
from US $11.84 |
||
|
5
|
5
50302-268-010 Race, steering ball |
50302-268-010 |
from US $11.64 |
||
|
6
|
6
53214-250-000 Dust seal |
53214-250-000 |
US $3.18 |
||
| replacements | |||||
|
6
|
6
53124-250-000 Dust-seal |
53124-250-000 |
from US $3.77 |
||
|
6
|
6
53214-K0T-J00 DUST SEAL |
53214-K0T-J00 |
from US $4.79 |
||
|
7
|
7
53200-413-000ZA
Stem,strg.*nh-1*
|
53200-413-000ZA |
— | ||
|
8
|
8
53211-268-010 Race, steering cone |
53211-268-010 |
from US $14.42 |
||
|
9
|
9
53212-250-010 Race, steering cone |
53212-250-010 |
from US $11.84 |
||
|
10
|
10
53215-250-000 Washer |
53215-250-000 |
from US $3.07 |
||
|
11
|
11
53215-391-670
Cover,lock case
|
53215-391-670 |
— | ||
|
12
|
12
53220-413-000
Thread,strg.hndl.
|
53220-413-000 |
— | ||
|
13
|
13
53600-382-671
Lock comp,handle
|
53600-382-671 |
— | ||
|
14
|
14
53631-268-020
Spring
|
53631-268-020 |
— | ||
|
15
|
15
93481-080-400-0 Bolt-washer,8x40 |
93481-080-400-0 |
US $0.74 |
||
|
16
|
16
93891-030-120-0 Screw-washer,3x12 |
93891-030-120-0 |
US $0.44 |
||
|
17
|
17
95701-0801200 Bolt, flange, 8x12 |
95701-0801200 |
from US $0.62 |
||
|
18
|
18
96211-08000 Ball |
96211-08000 |
from US $0.13 |
||
