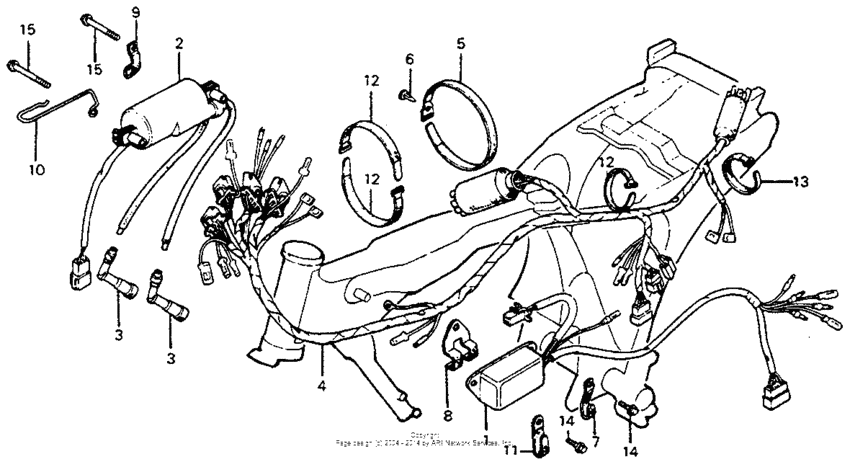

Wire harness + ignition coil + c.d.i. unit Diagram Honda CB400
- Year
- 1978
- Model code
- CB400A A
- Sales region
- USA
- Frame
- CB400A2000015 -
- Engine Capacity
- 400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30400-417-014
C.d.i. unit (nd)
|
30400-417-014 |
— | ||
|
2
|
2
30530-413-003
Coil comp.,ign.
|
30530-413-003 |
— | ||
|
3
|
3
30700-MC8-000 Cap,noise supr. |
30700-MC8-000 |
US $28.15 |
||
|
4
|
4
32100-417-670
Wire harness
|
32100-417-670 |
— | ||
|
5
|
5
32171-413-000
Band,wire harness
|
32171-413-000 |
— | ||
|
6
|
6
32177-413-003
Clip, wire harness band
|
32177-413-003 |
— | ||
|
7
|
7
32810-413-000
Clip,high cord
|
32810-413-000 |
— | ||
|
8
|
8
32812-413-000
Clip a,harness
|
32812-413-000 |
— | ||
|
9
|
9
32815-413-000
Clip,coupler
|
32815-413-000 |
— | ||
|
10
|
10
50726-413-000
Guide,cable
|
50726-413-000 |
— | ||
|
11
|
11
50732-413-000
Clip,throt.cable
|
50732-413-000 |
— | ||
|
12
|
12
9501461200 Band a2, wire |
9501461200 |
from US $1.30 |
||
|
13
|
13
9501461300 Band a3, cable |
9501461300 |
from US $1.18 |
||
|
14
|
14
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
15
|
15
95701-060-450-8 BoltFLANGE, 6X45 |
95701-060-450-8 |
from US $0.74 |
