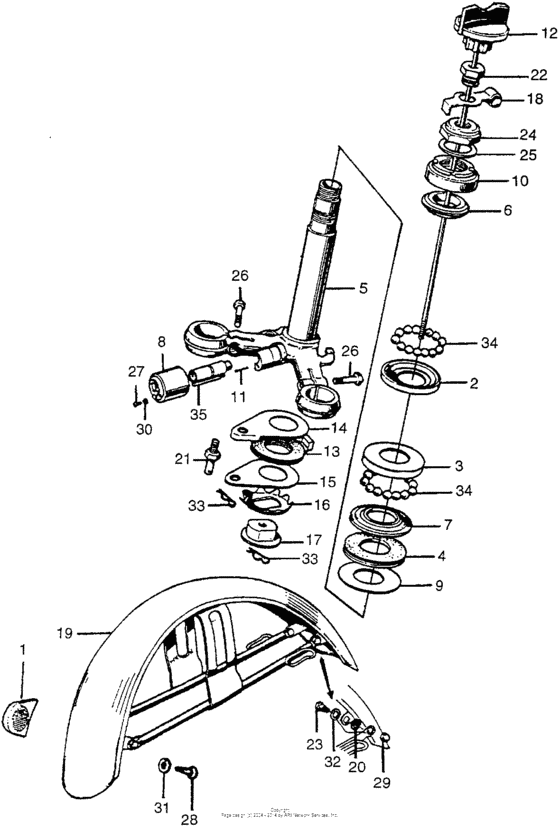

Steering stem + front fender Diagram Honda CB450
- Model code
- CB450K2 A
- Sales region
- USA
- Frame
- CB4503008956 -
- Engine Capacity
- 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
50301-268-010 Race, steering ball |
50301-268-010 |
from US $11.84 |
||
|
3
|
3
50302-268-010 Race, steering ball |
50302-268-010 |
from US $11.64 |
||
|
4
|
4
53214-250-000 Dust seal |
53214-250-000 |
US $3.18 |
||
| replacements | |||||
|
4
|
4
53124-250-000 Dust-seal |
53124-250-000 |
from US $3.77 |
||
|
4
|
4
53214-K0T-J00 DUST SEAL |
53214-K0T-J00 |
from US $4.79 |
||
|
5
|
5
53200-292-000-Z
Stem, steering
|
53200-292-000-Z |
— | ||
|
6
|
6
53211-268-010 Race, steering cone |
53211-268-010 |
from US $14.42 |
||
|
7
|
7
53212-250-010 Race, steering cone |
53212-250-010 |
from US $11.84 |
||
|
8
|
8
53215-230-000
Cover,lock case
|
53215-230-000 |
— | ||
|
9
|
9
53215-250-000 Washer |
53215-250-000 |
from US $3.07 |
||
|
10
|
10
53220-283-010
Thread
|
53220-283-010 |
— | ||
|
11
|
11
53631-268-020
Spring
|
53631-268-020 |
— | ||
|
12
|
12
53740-292-000
Knob,damper
|
53740-292-000 |
— | ||
|
13
|
13
53750-292-000
Disk damper
|
53750-292-000 |
— | ||
|
14
|
14
53761-292-000
Plate damper
|
53761-292-000 |
— | ||
|
15
|
15
53762-268-010
Plate b
|
53762-268-010 |
— | ||
|
16
|
16
53763-216-000
Spring
|
53763-216-000 |
— | ||
|
17
|
17
53764-283-000
Nut
|
53764-283-000 |
— | ||
|
18
|
18
53765-283-000
Spring, locking
|
53765-283-000 |
— | ||
|
19
|
19
61100-292-671XW
Fender, fr. *mrcr2*
Use up to Frame SN 3010745 |
61100-292-671XW |
— | ||
|
19
|
19
61100-292-670XW
Fender,front
Use from Frame SN 3010746 |
61100-292-670XW |
— | ||
|
20
|
20
61105-292-670
Rubber,cushion
|
61105-292-670 |
— | ||
|
21
|
21
90118-268-000
Bolt, anchor
|
90118-268-000 |
— | ||
|
22
|
22
90131-268-010
Bolt, lock spring
|
90131-268-010 |
— | ||
|
24
|
24
90304-283-010
Nut, stem
|
90304-283-010 |
— | ||
|
25
|
25
90503-283-000 Washer |
90503-283-000 |
from US $4.29 |
||
|
26
|
26
92101-10036-0A
Bolt, hex. (10x36)
|
92101-10036-0A |
— | ||
|
27
|
27
93500-030-080-A ScrewPAN, 3X8 |
93500-030-080-A |
from US $0.37 |
||
|
28
|
28
93901-34210 ScrewTAPPING, 4X10 Use up to Frame SN 3010745 |
93901-34210 |
from US $0.37 |
||
|
30
|
30
9410103000 Washer, plain, 3mm |
9410103000 |
from US $0.37 |
||
|
31
|
31
94101-04000 WasherPLAIN, 4MM Use up to Frame SN 3010745 |
94101-04000 |
from US $0.37 |
||
|
32
|
32
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
33
|
33
94251-06000 PinLOCK, 6MM |
94251-06000 |
from US $0.44 |
||
|
34
|
34
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
|
35
|
35
35010-230-010
Switch kit,comb.
|
35010-230-010 |
— | ||
