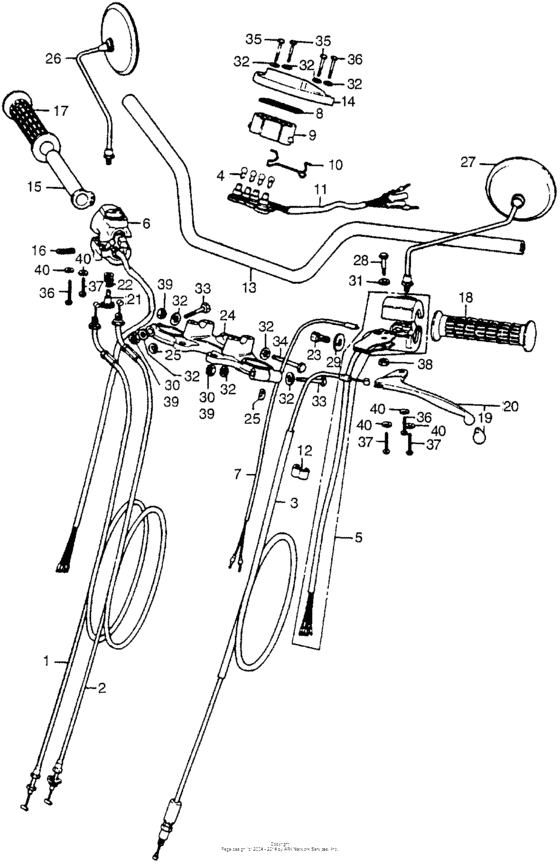

Handlebar + cable Diagram Honda CB550
- Model code
- CB550 A
- Sales region
- USA
- Frame
- CB550K1000001 -
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-341-000 Cable a,throttle |
17910-341-000 |
from US $46.18 |
||
|
2
|
2
17920-323-000
Cable b,throttle
|
17920-323-000 |
— | ||
|
3
|
3
22870-374-000
Cable,clutch
|
22870-374-000 |
— | ||
|
4
|
4
34902-259-000 BulbDASH (12V 3.4W) (STANLEY) |
34902-259-000 |
US $3.03 |
||
| replacement | |||||
|
4
|
4
34902-259-003 Bulb (12v 3.4w) |
34902-259-003 |
from US $3.70 |
||
|
5
|
5
35200-374-671
Switch,winker kil
|
35200-374-671 |
— | ||
|
6
|
6
35300-341-671
Switch,starter lt
|
35300-341-671 |
— | ||
|
7
|
7
35340-329-003 Switch, fr. stop |
35340-329-003 |
from US $13.74 |
||
|
8
|
8
37576-323-000
Base,lamp socket
|
37576-323-000 |
— | ||
|
9
|
9
37577-341-000
Socket,pilot lamp
|
37577-341-000 |
— | ||
|
10
|
10
37579-341-010
Set spring,socket
|
37579-341-010 |
— | ||
|
11
|
11
37581-323-000
Cord,pilot lamp
|
37581-323-000 |
— | ||
|
12
|
12
45465-270-000 Clip, brake wire |
45465-270-000 |
from US $7.80 |
||
|
13
|
13
53100-374-000
Pipe,strg.handle
|
53100-374-000 |
— | ||
|
14
|
14
53133-323-010
Holder,upper
|
53133-323-010 |
— | ||
|
15
|
15
53141-300-010 Pipe, throttle grip |
53141-300-010 |
from US $13.87 |
||
|
16
|
16
53163-300-020
Adjuster,grip
|
53163-300-020 |
— | ||
|
17
|
17
53165-342-670 Rubber,r grip |
53165-342-670 |
from US $19.07 |
||
|
18
|
18
53166-342-670 Rubber,l grip |
53166-342-670 |
from US $16.46 |
||
|
19
|
19
95010-16001 Cap.handle.leverUse up to Frame SN 1022172 |
95010-16001 |
from US $2.07 |
||
|
20
|
20
53178-369-700 Lever,strg.handleUse up to Frame SN 1022172 |
53178-369-700 |
from US $23.66 |
||
|
21
|
21
53190-300-000
Bolt,adjuster
|
53190-300-000 |
— | ||
|
22
|
22
53191-300-000
Spring,adjuster
|
53191-300-000 |
— | ||
|
23
|
23
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.74 |
||
|
24
|
24
53230-323-305
Bridge,fork top
|
53230-323-305 |
— | ||
|
25
|
25
53235-300-000 Washer spacer |
53235-300-000 |
US $10.36 |
||
|
26
|
26
88110-333-611 R.back mirror |
88110-333-611 |
US $45.29 |
||
|
27
|
27
88120-333-611 L.back mirror |
88120-333-611 |
US $42.42 |
||
|
28
|
28
90114-310-000 Bolt |
90114-310-000 |
from US $5.92 |
||
|
29
|
29
90321-315-670 Nut, fixing |
90321-315-670 |
from US $6.07 |
||
|
31
|
31
90501-310-000 Washer (7x12) |
90501-310-000 |
from US $2.75 |
||
|
32
|
32
90518-921-000 Washer, plain, 8mm |
90518-921-000 |
from US $0.96 |
||
|
33
|
33
93101-080-560-B
Bolt, hex. (8x56)
|
93101-080-560-B |
— | ||
|
34
|
34
93101-080-740-B
Bolt, hex. (8x74)
|
93101-080-740-B |
— | ||
|
35
|
35
93101-080-400-B Bolt, hex. (8x40) |
93101-080-400-B |
from US $0.81 |
||
|
36
|
36
93500-050-250-A ScrewPAN, 5X25 |
93500-050-250-A |
from US $0.44 |
||
|
37
|
37
93500-050320A Screw, pan, 5x32 |
93500-050320A |
from US $0.44 |
||
|
38
|
38
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
39
|
39
94001-080-200-S Nut,hex 8m/m |
94001-080-200-S |
from US $0.52 |
||
|
40
|
40
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
