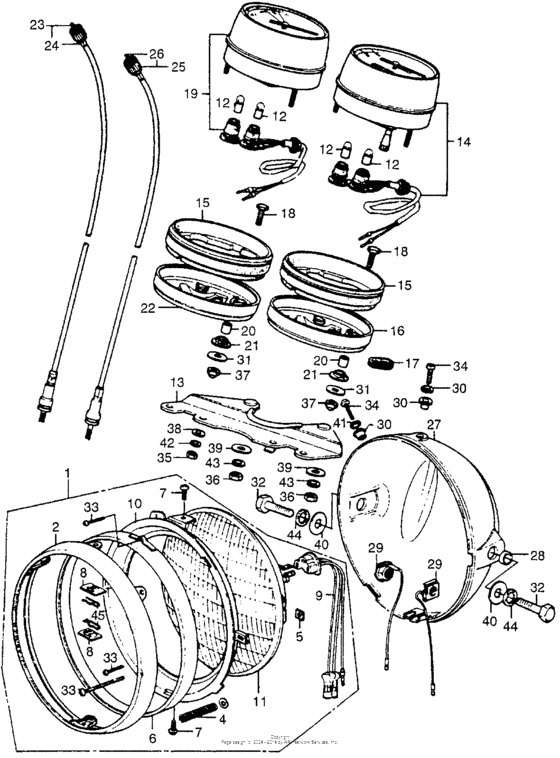

Headlight + speedometer + tachometer Diagram Honda CB550
- Model code
- CB550 A
- Sales region
- USA
- Frame
- CB550K1000001 -
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-341-701
Light assy.,head
|
33100-341-701 |
— | ||
|
2
|
2
33101-405-671 Rim, headlight |
33101-405-671 |
from US $81.24 |
||
|
3
|
3
33103-346-670 Screw |
33103-346-670 |
US $10.06 |
||
| replacement | |||||
|
3
|
3
33103-MW3-610 Screw,beam adjust |
33103-MW3-610 |
from US $9.98 |
||
|
4
|
4
33107-300-003 Spring |
33107-300-003 |
from US $3.40 |
||
|
5
|
5
33117-001-023 Nut, headlight beam adjusting |
33117-001-023 |
from US $2.59 |
||
|
6
|
6
33121-300-672
Ring retaining
|
33121-300-672 |
— | ||
|
7
|
7
33125-292-670
Screw,unit holder
|
33125-292-670 |
— | ||
|
8
|
8
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
9
|
9
33130-300-003
Socket,head lt.
|
33130-300-003 |
— | ||
|
10
|
10
33153-300-671
Ring mouning
|
33153-300-671 |
— | ||
|
11
|
11
33120-431-505
Set unit,head lig
|
33120-431-505 |
— | ||
|
12
|
12
34902-259-000 BulbDASH (12V 3.4W) (STANLEY) |
34902-259-000 |
US $3.03 |
||
| replacement | |||||
|
12
|
12
34902-259-003 Bulb (12v 3.4w) |
34902-259-003 |
from US $3.70 |
||
|
13
|
13
37211-341-700
Plate,meter set
|
37211-341-700 |
— | ||
|
14
|
14
37230-323-704
Speedometer assy
|
37230-323-704 |
— | ||
|
14
|
14
37200-374-671
Speedometer assy
|
37200-374-671 |
— | ||
|
15
|
15
37235-323-700 Rubber, speedometer |
37235-323-700 |
from US $19 |
||
|
16
|
16
37236-323-700
Plate,spdmt.under
|
37236-323-700 |
— | ||
|
17
|
17
37237-323-700
Grommet,meter
|
37237-323-700 |
— | ||
|
18
|
18
37238-323-700 Bolt (6mm) |
37238-323-700 |
US $3.03 |
||
|
19
|
19
37240-323-773
Tachometer assy.
|
37240-323-773 |
— | ||
|
19
|
19
37240-323-774
Tachometer assy.
|
37240-323-774 |
— | ||
|
20
|
20
37243-323-700 Collar |
37243-323-700 |
US $5.33 |
||
|
21
|
21
37244-307-670 Rubber |
37244-307-670 |
from US $3.55 |
||
|
22
|
22
37246-323-700
Plate,tach.under
|
37246-323-700 |
— | ||
|
23
|
23
37260-300-000 Cable tachometer |
37260-300-000 |
US $30.46 |
||
|
23
|
23
37260-449-840 Cable,tachometer |
37260-449-840 |
US $28.86 |
||
|
24
|
24
37260-300-000 Cable tachometer |
37260-300-000 |
US $30.46 |
||
|
24
|
24
37260-449-840 Cable,tachometer |
37260-449-840 |
US $28.86 |
||
|
25
|
25
44830-425-870 Cable,speedometer |
44830-425-870 |
from US $34.14 |
||
|
26
|
26
44830-425-870 Cable,speedometer |
44830-425-870 |
from US $34.14 |
||
|
27
|
27
61301-300-020-B
Case,head light
|
61301-300-020-B |
— | ||
|
28
|
28
61302-300-000 Collar,light case |
61302-300-000 |
US $6.66 |
||
|
29
|
29
61303-336-000 Washer,light case |
61303-336-000 |
US $13.47 |
||
|
30
|
30
61304-292-000 Collar |
61304-292-000 |
from US $3.40 |
||
|
31
|
31
90545-323-700 Washer, 6.5x18 |
90545-323-700 |
from US $2.74 |
||
|
32
|
32
92101-10025-0B
Bolt, hex. (10x25)
|
92101-10025-0B |
— | ||
|
33
|
33
93500-030-123-B
Screw,pan,3x12
|
93500-030-123-B |
— | ||
|
34
|
34
93500-050-160-B ScrewPAN, 5X16 |
93500-050-160-B |
from US $0.56 |
||
|
35
|
35
94001-060-700-S NutHEX., 6MM |
94001-060-700-S |
from US $0.44 |
||
|
36
|
36
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.44 |
||
|
37
|
37
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
38
|
38
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
39
|
39
9410108200 Washer, plain, 8mm |
9410108200 |
from US $0.44 |
||
|
40
|
40
94101-10200 Washer, plain (10mm) |
94101-10200 |
from US $0.52 |
||
|
41
|
41
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
42
|
42
94111-06700 WasherSPRING, 6MM |
94111-06700 |
from US $0.37 |
||
|
43
|
43
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
44
|
44
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
45
|
45
9425105000 Pin, lock, 5mm |
9425105000 |
from US $0.44 |
||
