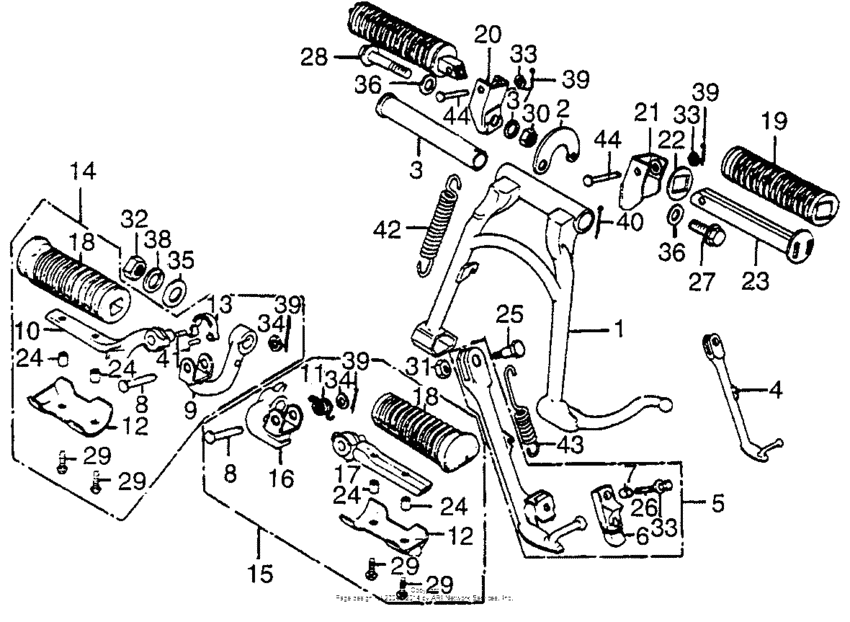

Step + stand Diagram Honda CB550
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F1109886 -
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50500-390-300
Stand comp., main
|
50500-390-300 |
— | ||
|
2
|
2
50523-300-010 Plate main stand |
50523-300-010 |
US $8.87 |
||
|
3
|
3
50526-300-000 Pipe |
50526-300-000 |
US $16.46 |
||
|
5
|
5
50540-390-000
Bar,side stand
|
50540-390-000 |
— | ||
|
6
|
6
50548-356-700 Rubber, stand |
50548-356-700 |
from US $8.29 |
||
|
7
|
7
50549-356-700 Collar |
50549-356-700 |
from US $2.96 |
||
|
8
|
8
50603-033-010 Pin, step bar joint |
50603-033-010 |
from US $3.70 |
||
|
9
|
9
50615-390-000
Bar comp,r.step
|
50615-390-000 |
— | ||
|
10
|
10
50616-390-000
Arm, right step
|
50616-390-000 |
— | ||
|
11
|
11
50617-283-000
Spring, return
|
50617-283-000 |
— | ||
|
12
|
12
50619-375-000
Stopper,step rub.
|
50619-375-000 |
— | ||
|
13
|
13
50620-393-000
Spg.l.step rtn.
|
50620-393-000 |
— | ||
|
14
|
14
50630-390-000
Step assy., right
|
50630-390-000 |
— | ||
|
15
|
15
50640-390-000
Step assy., left
|
50640-390-000 |
— | ||
|
16
|
16
50641-390-000
Bar comp,l.step
|
50641-390-000 |
— | ||
|
17
|
17
50642-390-000
Arm, left step
|
50642-390-000 |
— | ||
|
18
|
18
50661-369-000 Rubber,step |
50661-369-000 |
US $38.08 |
||
|
19
|
19
50716-371-660 Rub, pillion footpeg |
50716-371-660 |
from US $17.60 |
||
|
20
|
20
50711-374-670
Bracket,r.pillion
|
50711-374-670 |
— | ||
|
21
|
21
50712-374-670
Bracket,l.pillion
|
50712-374-670 |
— | ||
|
22
|
22
50712-377-000 Washer,pillion |
50712-377-000 |
US $5.48 |
||
|
23
|
23
50715-MA6-000 Bar,pillion step |
50715-MA6-000 |
from US $22.03 |
||
|
24
|
24
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
25
|
25
90108-283-000 Screw,pivot |
90108-283-000 |
from US $6.96 |
||
|
26
|
26
92101-06028-0A Bolt, hex. (6x28) |
92101-06028-0A |
from US $0.51 |
||
|
27
|
27
92101-10032-0A Bolt, hex., 10x32 |
92101-10032-0A |
US $0.74 |
||
|
28
|
28
92101-10035-0A
Bolt, hex. (10x35)
|
92101-10035-0A |
— | ||
|
29
|
29
93500-060180A Screw, pan, 6x18 |
93500-060180A |
from US $0.44 |
||
|
30
|
30
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.52 |
||
|
31
|
31
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
||
|
32
|
32
94030-12000 Nut, hex., 12mm |
94030-12000 |
from US $0.59 |
||
|
33
|
33
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
34
|
34
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.25 |
||
|
35
|
35
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
36
|
36
9410210000 Washer, plain, 10mm |
9410210000 |
from US $0.44 |
||
|
37
|
37
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
38
|
38
94111-12000 WasherSPRING, 12MM |
94111-12000 |
from US $0.44 |
||
|
39
|
39
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
40
|
40
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
|
41
|
41
94305-40163 Pin, spring, 4x16 |
94305-40163 |
US $0.81 |
||
|
42
|
42
9501471702 Spring g, main stand |
9501471702 |
from US $3.03 |
||
|
43
|
43
9501472402 Spring d, side stand |
9501472402 |
from US $1.63 |
||
|
44
|
44
9501583000 Pin c |
9501583000 |
from US $1.55 |
