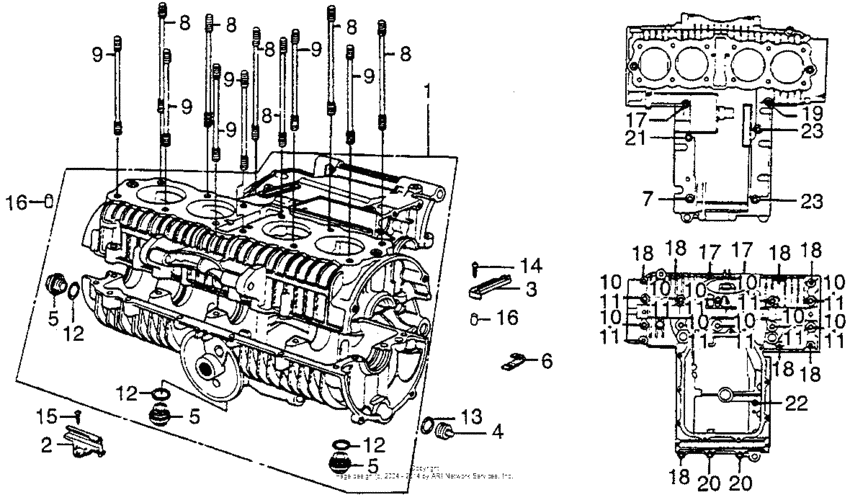

Crankcase Diagram Honda CB550
- Year
- 1977
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F2100001 - CB550F2114871
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-374-000
Crankcase set
|
11000-374-000 |
— | ||
|
2
|
2
11202-323-000
Guide a, oil
|
11202-323-000 |
— | ||
|
3
|
3
11203-323-010
Guide b, oil
|
11203-323-010 |
— | ||
|
4
|
4
11207-323-000
Plug, oil passage
|
11207-323-000 |
— | ||
|
5
|
5
15332-300-000
Cap b,oil path
|
15332-300-000 |
— | ||
|
6
|
6
32111-323-000 Clamp, Cable |
32111-323-000 |
from US $5.18 |
||
|
7
|
7
90011-323-000
Bolt, flange (8x145)
|
90011-323-000 |
— | ||
|
8
|
8
90033-323-000
Bolt a,cyln stud
|
90033-323-000 |
— | ||
|
9
|
9
90034-323-000
Bolt b,cyln stud
|
90034-323-000 |
— | ||
|
10
|
10
90084-323-000
Bolt,hex 8x100
|
90084-323-000 |
— | ||
|
11
|
11
90485-035-000 Washer, 14m/m |
90485-035-000 |
from US $2.09 |
||
|
12
|
12
94608-40000 O ring 19.4x2.8 |
94608-40000 |
from US $0.98 |
||
|
13
|
13
91319-300-000 O-ring (13x2.5) |
91319-300-000 |
from US $5.62 |
||
|
14
|
14
9390125310 Screw, tap (5x16) |
9390125310 |
from US $0.37 |
||
|
15
|
15
93901-26110 Screw |
93901-26110 |
from US $0.47 |
||
|
16
|
16
9430210160 Pin b, dowel, 10x16 |
9430210160 |
from US $1.04 |
||
|
17
|
17
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
||
|
18
|
18
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.59 |
||
|
19
|
19
95701-060-500-0 BoltFLANGE, 6X50 |
95701-060-500-0 |
from US $0.74 |
||
|
20
|
20
95701-060-550-0 BoltFLANGE, 6X55 |
95701-060-550-0 |
from US $0.74 |
||
|
21
|
21
95701-061-000-0 Bolt, flange, 6x100 |
95701-061-000-0 |
from US $0.89 |
||
|
22
|
22
95701-0610500 Bolt, flange (6x105) |
95701-0610500 |
from US $1.18 |
||
|
23
|
23
95701-0810000 Bolt, flange (8x100) |
95701-0810000 |
from US $1.24 |
