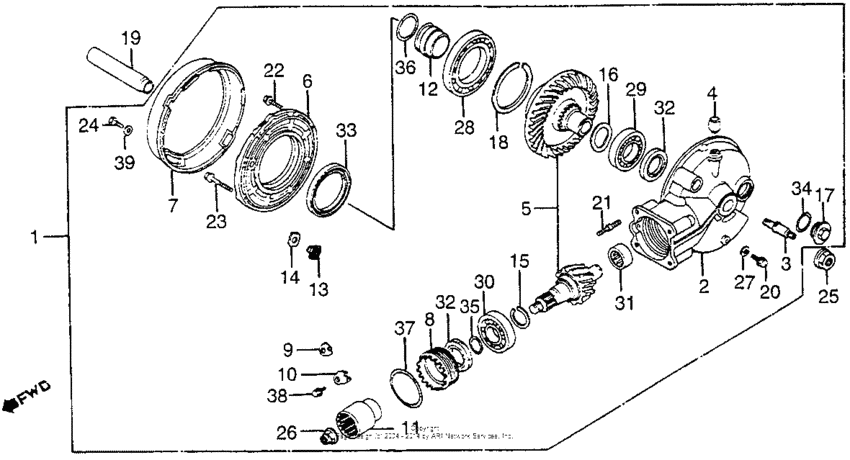

Final Driven Gear Diagram Honda CB550
- Year
- 1983
- Model code
- CB550SC A
- Sales region
- USA
- Frame
- JH2PC090*DM000023 -
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41300-ME4-000
Gear, final driven
|
41300-ME4-000 |
— | ||
|
2
|
2
41301-ME4-000
Case, final gear
|
41301-ME4-000 |
— | ||
|
3
|
3
41303-ME4-300
Stay,cush.under
|
41303-ME4-300 |
— | ||
|
4
|
4
41306-MB0-020 Cap, breather |
41306-MB0-020 |
from US $11.27 |
||
|
4
|
4
41306-ME5-305 Breather assy |
41306-ME5-305 |
US $15.33 |
||
|
5
|
5
41310-ME4-305
Gear set,final
|
41310-ME4-305 |
— | ||
|
6
|
6
41321-ME4-000
Cover,gear case
|
41321-ME4-000 |
— | ||
|
7
|
7
41324-ME4-000
Plate, dust guard
|
41324-ME4-000 |
— | ||
|
8
|
8
41331-ME4-000
Retainer, bearing
|
41331-ME4-000 |
— | ||
|
9
|
9
41332-415-000 Lock a, bearing adj. |
41332-415-000 |
from US $2.44 |
||
|
10
|
10
41333-415-000 Lock b, bearing adj. |
41333-415-000 |
from US $2.44 |
||
|
11
|
11
41410-ME4-000
Joint,pinion
|
41410-ME4-000 |
— | ||
|
12
|
12
41433-ME4-000
Holder,o-ring
|
41433-ME4-000 |
— | ||
|
13
|
13
41436-MB0-310 Pin |
41436-MB0-310 |
from US $15.64 |
||
|
14
|
14
41437-MB0-310 Shim a (0.10) |
41437-MB0-310 |
from US $4 |
||
|
14
|
14
41438-MB0-310 Shim b (0.15) |
41438-MB0-310 |
from US $4 |
||
|
15
|
15
41450-ME4-000
Shim a,pini.gear
|
41450-ME4-000 |
— | ||
|
15
|
15
41451-ME4-000
Shim b,pini.gear
|
41451-ME4-000 |
— | ||
|
15
|
15
41452-ME4-000
Shim c,pini gear
|
41452-ME4-000 |
— | ||
|
15
|
15
41453-ME4-000
Shim d,pini gear
|
41453-ME4-000 |
— | ||
|
15
|
15
41454-ME4-000
Shim e,pini gear
|
41454-ME4-000 |
— | ||
|
15
|
15
41455-ME4-000
Shim f,pini gear
|
41455-ME4-000 |
— | ||
|
15
|
15
41456-ME4-000
Shim g,pini gear
|
41456-ME4-000 |
— | ||
|
16
|
16
41510-ME4-003
Wash,spcl,31x40
|
41510-ME4-003 |
— | ||
|
17
|
17
41511-ME5-000 Cap, gear case oil |
41511-ME5-000 |
from US $6.53 |
||
|
18
|
18
41530-ME4-000
Space a,ring gear
|
41530-ME4-000 |
— | ||
|
18
|
18
41531-ME4-000
Space b,ring gear
|
41531-ME4-000 |
— | ||
|
18
|
18
41532-ME4-000
Space c,ring gear
|
41532-ME4-000 |
— | ||
|
18
|
18
41533-ME4-000 Space d,ring gear |
41533-ME4-000 |
US $16.03 |
||
|
18
|
18
41534-ME4-000
Space e,ring gear
|
41534-ME4-000 |
— | ||
|
18
|
18
41535-ME4-000
Space f,ring gear
|
41535-ME4-000 |
— | ||
|
18
|
18
41536-ME4-000
Space g,ring gear
|
41536-ME4-000 |
— | ||
|
18
|
18
41537-ME4-000
Space h,ring gear
|
41537-ME4-000 |
— | ||
|
18
|
18
41538-ME4-000
Space i,ring gear
|
41538-ME4-000 |
— | ||
|
19
|
19
42625-ME4-000
Collar b, rr.
|
42625-ME4-000 |
— | ||
|
20
|
20
90109-371-000 Bolt, sealing, 8mm |
90109-371-000 |
from US $4.14 |
||
|
21
|
21
90125-ME4-000
Bolt,stud,8x40
|
90125-ME4-000 |
— | ||
|
22
|
22
90133-MB0-000 Bolt, flange (8x27) |
90133-MB0-000 |
from US $5.77 |
||
|
23
|
23
90134-371-000 Bolt, flange (10x38) |
90134-371-000 |
US $6.94 |
||
|
24
|
24
90170-MB0-000 Bolt, hex. (6x16) |
90170-MB0-000 |
from US $2.29 |
||
|
25
|
25
90305-GE8-003 Nut, u (14mm) |
90305-GE8-003 |
from US $3.40 |
||
|
26
|
26
90381-MB0-010 Nut, hex. (16mm) |
90381-MB0-010 |
from US $5.10 |
||
|
27
|
27
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.92 |
||
|
28
|
28
91051-ME4-003
B/brg rad n/com
|
91051-ME4-003 |
— | ||
|
29
|
29
91052-ME4-003
B/brg rad n/com
|
91052-ME4-003 |
— | ||
|
30
|
30
91061-ME4-004 Bearing (22x56x16) |
91061-ME4-004 |
US $45.24 |
||
|
31
|
31
91062-ME4-003
Needle brg
|
91062-ME4-003 |
— | ||
|
32
|
32
91261-ME4-003
Oil seal,30x45x7
|
91261-ME4-003 |
— | ||
|
33
|
33
91265-ME4-003
Oil seal,55x80x7
|
91265-ME4-003 |
— | ||
|
34
|
34
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $3.63 |
||
|
35
|
35
91355-ME4-003
O-ring,19x1.9
|
91355-ME4-003 |
— | ||
|
36
|
36
91307-MC8-005
O-ring,32.5x2.5
|
91307-MC8-005 |
— | ||
|
37
|
37
91359-ME4-003 O-ring,53.5x3.5 |
91359-ME4-003 |
US $5.49 |
||
|
38
|
38
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
38
|
38
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
38
|
38
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
39
|
39
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
