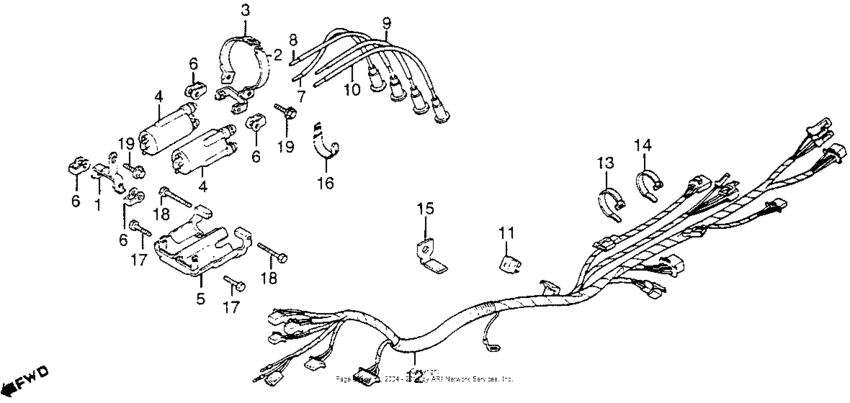

Wire harness + ignition coil + rectifier Diagram Honda CB550
- Year
- 1983
- Model code
- CB550SC A
- Sales region
- USA
- Frame
- JH2PC090*DM000023 -
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30505-ME5-000
Brkt.,r.ign.coil
|
30505-ME5-000 |
— | ||
|
2
|
2
30506-ME4-000
Bracket, rr.
|
30506-ME4-000 |
— | ||
|
3
|
3
30507-ME4-000
Band, r
|
30507-ME4-000 |
— | ||
|
4
|
4
30510-MA6-013 Coil, ignition |
30510-MA6-013 |
US $205.26 |
||
|
5
|
5
30515-ME5-000
Cover,ign.coil
|
30515-ME5-000 |
— | ||
|
6
|
6
30520-MB0-000
Spacer,ign coil
|
30520-MB0-000 |
— | ||
|
7
|
7
30751-ME4-000
Cap,high tension
|
30751-ME4-000 |
— | ||
|
8
|
8
30752-ME4-000
Cap,high tension
|
30752-ME4-000 |
— | ||
|
9
|
9
30753-ME4-000
Cap,high tension
|
30753-ME4-000 |
— | ||
|
10
|
10
30754-ME4-000
Cap,high tension
|
30754-ME4-000 |
— | ||
|
11
|
11
31700-124-003
Rectifier assy., silicon (stanley)
|
31700-124-003 |
— | ||
| replacement | |||||
|
11
|
11
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $26.57 |
||
|
11
|
11
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $26.57 |
||
|
12
|
12
32100-ME4-000
Harness,wire
|
32100-ME4-000 |
— | ||
|
13
|
13
32161-399-000 Band, cable |
32161-399-000 |
US $4.17 |
||
|
14
|
14
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.78 |
||
|
15
|
15
32170-ME5-000 Clip,wire harness |
32170-ME5-000 |
US $3.32 |
||
|
16
|
16
91406-ME5-000
Clip,wire
|
91406-ME5-000 |
— | ||
|
17
|
17
92101-06025-4J Bolt, hex., 6x25 |
92101-06025-4J |
from US $0.52 |
||
|
18
|
18
92101-06040-4J Bolt,hex,6x40 |
92101-06040-4J |
US $1.33 |
||
|
19
|
19
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
