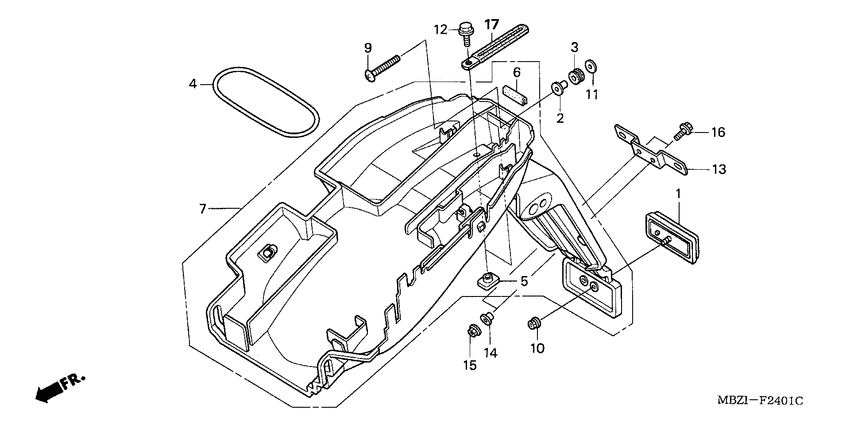

Rear fender (CB600F3/4/5/ 6) Diagram Honda CB600F Hornet
- Year
- 2005
- Model code
- CB600F5
- Sales region
- Europe
- Frame
- ZDCPC36D05F100001 - ZDCPC36D05F199999
- Engine Capacity
- 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-MS6-921 Reflector, reflex (stanley) |
33741-MS6-921 |
from US $16.86 |
||
|
2
|
2
35162-MN5-003 Collar |
35162-MN5-003 |
from US $4.88 |
||
|
3
|
3
35163-MBZ-C50 Grommet |
35163-MBZ-C50 |
from US $2.22 |
||
|
4
|
4
50419-166-000 Band, tool setting |
50419-166-000 |
from US $6.07 |
||
|
5
|
5
61304-HB3-003 Nut, special, 6mm |
61304-HB3-003 |
from US $3.07 |
||
|
6
|
6
64121-MCZ-000 Rubber, protector |
64121-MCZ-000 |
from US $2.74 |
||
|
7
|
7
80105-MBZ-K00
Fender rr
|
80105-MBZ-K00 |
— | ||
| replacement | |||||
|
7
|
7
80105-MBZ-K01
Fender
|
80105-MBZ-K01 |
— | ||
|
9
|
9
93500-040300A Screw, pan, 4x30 |
93500-040300A |
from US $0.37 |
||
|
10
|
10
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.22 |
||
|
11
|
11
94101-04000 WasherPLAIN, 4MM |
94101-04000 |
from US $0.37 |
||
|
12
|
12
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
13
|
13
80106-MBZ-K00
Guard,rr cush.
|
80106-MBZ-K00 |
— | ||
|
14
|
14
80112-443-850 Collar |
80112-443-850 |
US $2 |
||
|
15
|
15
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
16
|
16
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.52 |
||
