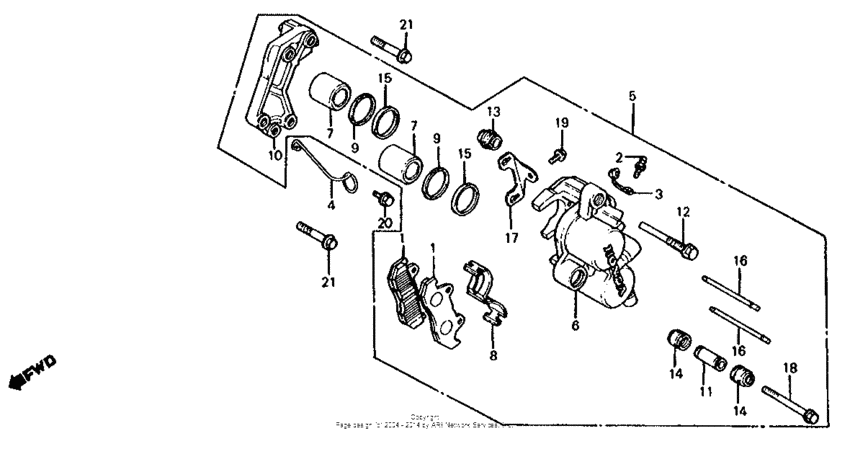

Cb650 front brake caliper 1 82 Diagram Honda CB650
- Year
- 1982
- Model code
- CB650 A
- Sales region
- USA
- Frame
- JH2RC050*CM300003 -
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45105-MM9-782 Pad, fr.Use up to Frame SN CM301877 |
45105-MM9-782 |
from US $30.19 |
||
|
2
|
2
43352-568-003 SCREW, BLEEDER (NISSIN)Use up to Frame SN CM301877 |
43352-568-003 |
from US $4.80 |
||
|
3
|
3
43353-461-771 CapBLEEDER Use up to Frame SN CM301877 |
43353-461-771 |
from US $3.70 |
||
|
4
|
4
44832-MA3-000
Clamp,spdmt.cable
Use up to Frame SN CM301877 |
44832-MA3-000 |
— | ||
|
5
|
5
45100-MA1-405
Caliper, l. fr.
Use up to Frame SN CM301877 |
45100-MA1-405 |
— | ||
|
6
|
6
45101-MA3-006
Caliper comp.,l.
Use up to Frame SN CM301877 |
45101-MA3-006 |
— | ||
|
7
|
7
45107-MA3-006 PistonUse up to Frame SN CM301877 |
45107-MA3-006 |
from US $32.64 |
||
|
8
|
8
45108-MA3-006 Spring, padUse up to Frame SN CM301877 |
45108-MA3-006 |
from US $9.18 |
||
|
9
|
9
45109-166-006 Dust sealUse up to Frame SN CM301877 |
45109-166-006 |
from US $4.59 |
||
|
10
|
10
45110-MA1-006
Bracket comp.,l
Use up to Frame SN CM301877 |
45110-MA1-006 |
— | ||
|
11
|
11
45111-MA3-006 SleeveUse up to Frame SN CM301877 |
45111-MA3-006 |
from US $9.03 |
||
|
12
|
12
45131-MA3-006 Pin, boltUse up to Frame SN CM301877 |
45131-MA3-006 |
from US $11.99 |
||
|
13
|
13
45133-MA3-006 Boot bUse up to Frame SN CM301877 |
45133-MA3-006 |
from US $2.92 |
||
|
14
|
14
45133-166-016 Boot, pinUse up to Frame SN CM301877 |
45133-166-016 |
from US $2.16 |
||
|
15
|
15
45209-166-006 SealPISTON Use up to Frame SN CM301877 |
45209-166-006 |
from US $4.59 |
||
|
16
|
16
45215-MA3-006 Pin (4.0mm)Use up to Frame SN CM301877 |
45215-MA3-006 |
from US $7.40 |
||
|
17
|
17
45217-MA3-006 PlateUse up to Frame SN CM301877 |
45217-MA3-006 |
from US $4.24 |
||
|
18
|
18
90180-MN8-006 Bolt, flange (8x49)Use up to Frame SN CM301877 |
90180-MN8-006 |
from US $4 |
||
|
19
|
19
95701-060-100-0 BoltFLANGE, 6X10 Use up to Frame SN CM301877 |
95701-060-100-0 |
from US $0.52 |
||
|
20
|
20
95701-060-120-0 BoltFLANGE, 6X12 Use up to Frame SN CM301877 |
95701-060-120-0 |
from US $0.52 |
||
|
21
|
21
95801-100-320-0 Bolt,flange,10x32Use up to Frame SN CM301877 |
95801-100-320-0 |
from US $0.81 |
