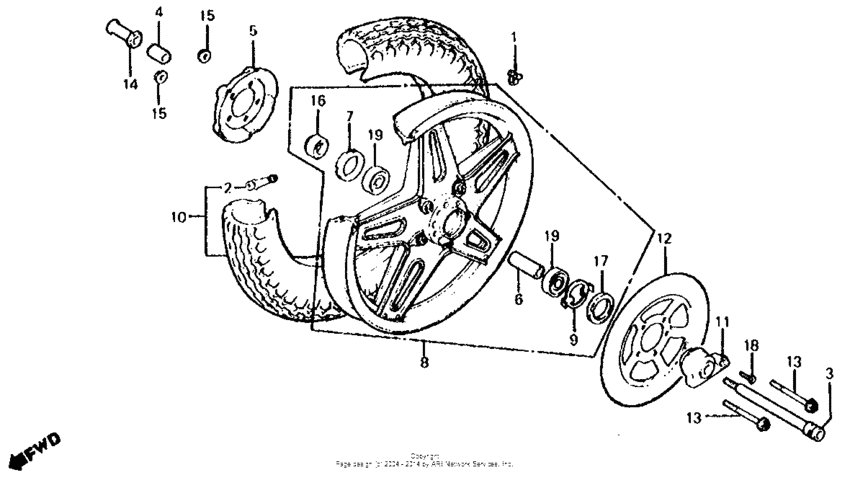

Cb650c front wheel 80 Diagram Honda CB650
- Year
- 1980
- Model code
- CB650C A
- Sales region
- USA
- Frame
- RC052000008 - RC052018218
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42705-410-000
Balancer (20g)
|
42705-410-000 |
— | ||
|
1
|
1
42706-410-000 Ballance (30g) |
42706-410-000 |
US $13.43 |
||
|
2
|
2
42753-425-003 Valve, rim |
42753-425-003 |
from US $13.17 |
||
|
3
|
3
44301-425-870
Axle,fr.wheel
|
44301-425-870 |
— | ||
|
4
|
4
44311-425-870
Colr, fr. wheel side
|
44311-425-870 |
— | ||
|
5
|
5
44607-426-770
Cover, fr. wheel hub
|
44607-426-770 |
— | ||
|
6
|
6
44620-410-000
Collar, fr
|
44620-410-000 |
— | ||
|
7
|
7
44643-300-000 Retainer fr wheel |
44643-300-000 |
from US $14.06 |
||
|
8
|
8
44650-445-771
Wheel comp.,fr.
|
44650-445-771 |
— | ||
|
9
|
9
44680-410-000 Retainer, gear box |
44680-410-000 |
from US $4.48 |
||
|
10
|
10
44710-MA1-671
Tire (3.50s19) (4pr)
Use from Frame SN 2011788 |
44710-MA1-671 |
— | ||
|
10
|
10
44710-449-672
Tire assy.,fr.
|
44710-449-672 |
— | ||
|
11
|
11
44800-425-013
Box,s/meter gear
|
44800-425-013 |
— | ||
|
12
|
12
45251-415-000
Disk,fr.brake
|
45251-415-000 |
— | ||
|
13
|
13
90123-425-000 Bolt,flange,8x97 |
90123-425-000 |
US $6.94 |
||
|
14
|
14
90306-425-870
Nut,axle,12mm
|
90306-425-870 |
— | ||
|
15
|
15
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
16
|
16
91252-300-003 Dust,seal |
91252-300-003 |
from US $13.28 |
||
|
17
|
17
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $8.73 |
||
|
18
|
18
93700-050160A Screw, oval (5x16) |
93700-050160A |
from US $0.37 |
||
|
19
|
19
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
