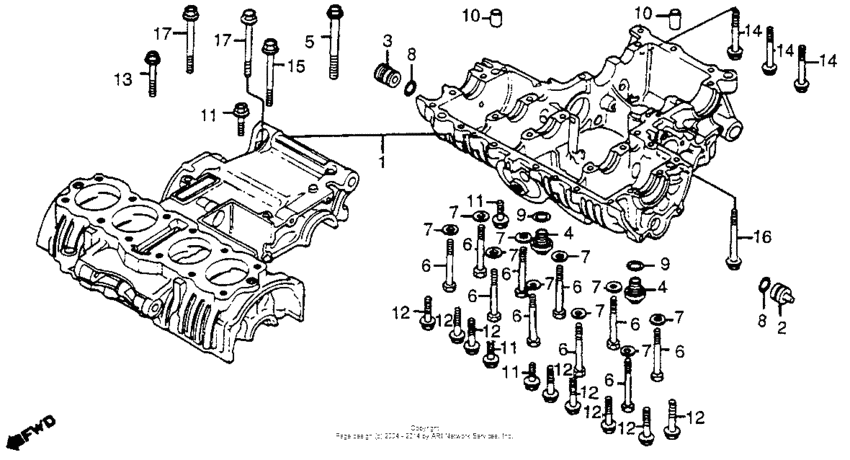

Crankcase Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-460-780
Crankcase set
|
11000-460-780 |
— | ||
|
2
|
2
11207-426-000
Cap b, oil passage
|
11207-426-000 |
— | ||
|
3
|
3
11208-426-000
Plug b, oil passage
|
11208-426-000 |
— | ||
|
4
|
4
15332-300-000
Cap b,oil path
|
15332-300-000 |
— | ||
|
5
|
5
90011-460-780 Bolt,flange,8x145 |
90011-460-780 |
US $8.01 |
||
|
6
|
6
90084-323-000
Bolt,hex 8x100
|
90084-323-000 |
— | ||
|
7
|
7
90483-028-000 Washer, 8mm |
90483-028-000 |
from US $1.92 |
||
|
8
|
8
91302-377-000 O-ring (15x2.5) |
91302-377-000 |
from US $5.92 |
||
|
9
|
9
91306-425-003
O-ring,19.4x2.8
|
91306-425-003 |
— | ||
|
10
|
10
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
11
|
11
95701-0603207 Bolt, flange, 6x32 |
95701-0603207 |
from US $0.59 |
||
|
12
|
12
95701-060-400-7 BoltFLANGE, 6X40 |
95701-060-400-7 |
from US $0.59 |
||
|
13
|
13
95701-0605007 Bolt, flange, 6x50 |
95701-0605007 |
from US $0.74 |
||
|
14
|
14
95701-0605507 Bolt, flange (6x55) |
95701-0605507 |
from US $0.78 |
||
|
15
|
15
95701-061-000-7 Bolt, flange (6x100) |
95701-061-000-7 |
from US $0.89 |
||
|
16
|
16
95700-061-050-7 Bolt,flange,6x105 |
95700-061-050-7 |
US $1.18 |
||
|
17
|
17
95701-0810007 Bolt, flange (8x100) |
95701-0810007 |
US $1.18 |
