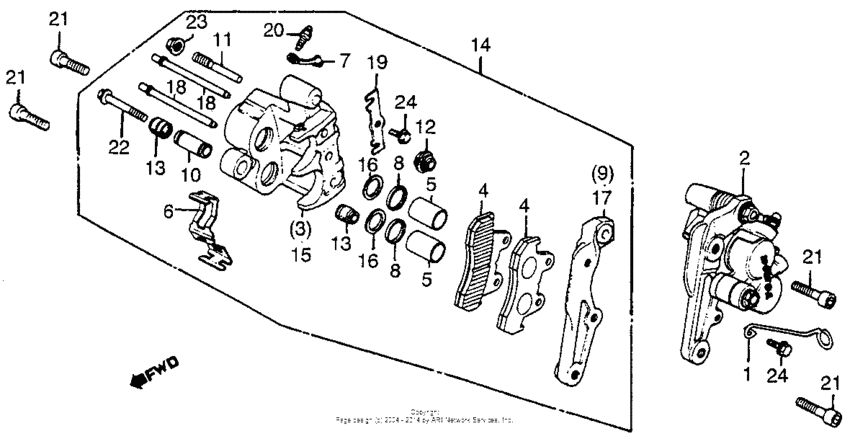

Front brake caliper Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44832-460-840
Clamp,spdmt.cable
|
44832-460-840 |
— | ||
|
2
|
2
45100-460-841
Caliper, l. fr.
|
45100-460-841 |
— | ||
|
3
|
3
45101-460-841
Body, l. caliper
|
45101-460-841 |
— | ||
|
4
|
4
45105-MC9-305
Pad, set
|
45105-MC9-305 |
— | ||
|
5
|
5
45107-460-841
Piston
|
45107-460-841 |
— | ||
|
6
|
6
45108-MA5-771
Spring, pad
|
45108-MA5-771 |
— | ||
|
7
|
7
45108-425-003
Cap, bleeder valve
|
45108-425-003 |
— | ||
|
8
|
8
45109-460-841 Seal,dust |
45109-460-841 |
from US $6.33 |
||
|
9
|
9
45110-MA5-771
Bracket, l. fr.
|
45110-MA5-771 |
— | ||
|
10
|
10
45111-MA5-771
Sleeve
|
45111-MA5-771 |
— | ||
|
11
|
11
45131-MA5-771
Pin, bolt
|
45131-MA5-771 |
— | ||
|
12
|
12
45133-MA5-771
Boot, pin
|
45133-MA5-771 |
— | ||
|
13
|
13
45134-MA5-771 Boot, bolt |
45134-MA5-771 |
US $5.03 |
||
|
14
|
14
45200-460-841
Caliper,r.fr.
|
45200-460-841 |
— | ||
|
15
|
15
45201-460-841
Caliper body.,r.
|
45201-460-841 |
— | ||
|
16
|
16
45209-460-841 Seal,piston |
45209-460-841 |
US $6.94 |
||
|
17
|
17
45210-MA5-771
Bracket, r
|
45210-MA5-771 |
— | ||
|
18
|
18
45215-MA5-771
Pin, pad retaining
|
45215-MA5-771 |
— | ||
|
19
|
19
45217-MA5-771
Plate
|
45217-MA5-771 |
— | ||
|
20
|
20
45224-413-003
Valve, bleeder
|
45224-413-003 |
— | ||
|
21
|
21
90164-460-840
Bolt, socket (10x40)
|
90164-460-840 |
— | ||
|
22
|
22
90180-MA5-771
Bolt, flange (8x48)
|
90180-MA5-771 |
— | ||
|
23
|
23
90303-428-900 Nut, flange (10mm) |
90303-428-900 |
from US $1.89 |
||
|
24
|
24
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.52 |
