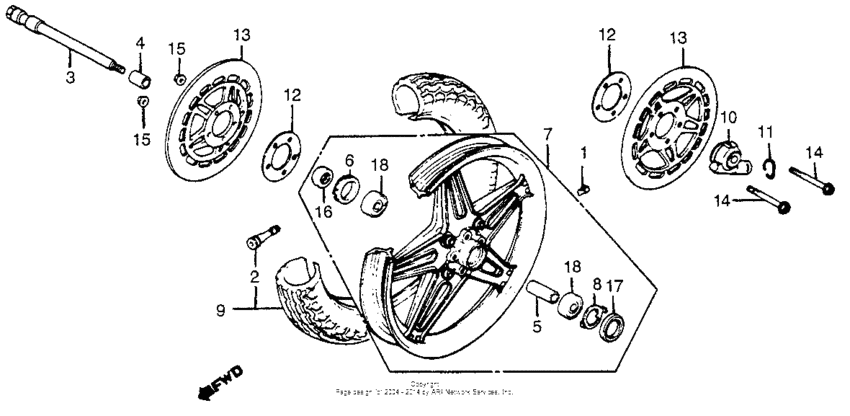

Front wheel Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42705-410-000
Balancer (20g)
|
42705-410-000 |
— | ||
|
1
|
1
42706-410-000 Ballance (30g) |
42706-410-000 |
US $13.43 |
||
|
2
|
2
42753-425-003 Valve, rim |
42753-425-003 |
from US $13.17 |
||
|
3
|
3
44301-461-770 Axle, fr. wheel |
44301-461-770 |
US $71.81 |
||
|
4
|
4
44311-460-840 Colr, fr. wheel side |
44311-460-840 |
US $14.51 |
||
|
5
|
5
44620-410-000
Collar, fr
|
44620-410-000 |
— | ||
|
6
|
6
44643-300-000 Retainer fr wheel |
44643-300-000 |
from US $14.06 |
||
|
7
|
7
44650-461-771
Wheel comp.,fr.
|
44650-461-771 |
— | ||
|
8
|
8
44680-410-000 Retainer, gear box |
44680-410-000 |
from US $4.48 |
||
|
9
|
9
44710-MA1-671
Tire (3.50s19) (4pr)
|
44710-MA1-671 |
— | ||
|
9
|
9
44710-460-842
Tire, fr. (3.50s19)
|
44710-460-842 |
— | ||
|
10
|
10
44800-460-841 Box,spdmt.gear |
44800-460-841 |
US $139.39 |
||
|
11
|
11
44810-460-841
Clip,spdmt.cable
|
44810-460-841 |
— | ||
|
12
|
12
45128-445-630 Shim, damping |
45128-445-630 |
US $4.07 |
||
|
13
|
13
45251-413-941
Disk,fr.brake
|
45251-413-941 |
— | ||
|
14
|
14
90113-GY8-900 Bolt, flange (8x104) |
90113-GY8-900 |
US $3.02 |
||
|
15
|
15
90308-460-841 Nut,flange,8mm |
90308-460-841 |
from US $4.95 |
||
|
15
|
15
90309-MR1-770 Nut, flange, 8mm |
90309-MR1-770 |
from US $4 |
||
|
16
|
16
91252-300-003 Dust,seal |
91252-300-003 |
from US $13.28 |
||
|
17
|
17
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $8.73 |
||
|
18
|
18
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
